TP-7070 7/18 31Section 2 Operation
2.9 Data Displays
2.9.1 Generator Mechanical Values
Overview display
It is possible to display up to 6 mechanical values at the
same time. By default, the following values are
displayed:
D Working hours counter (number of operating hours)
D Fuel level (daily service tank or main tank)
D Starter battery voltage
D Coolant temperature ( HT coolant temperature in the
case of a dual circuit engine)
D Oil pressure
D Oil temperature
The display area showing six mechanical values is
called the Favorites page. The content of this page can
be altered at any time. Each mechanical value is
represented by an information bar containing the
information shown in Figure 2-13.

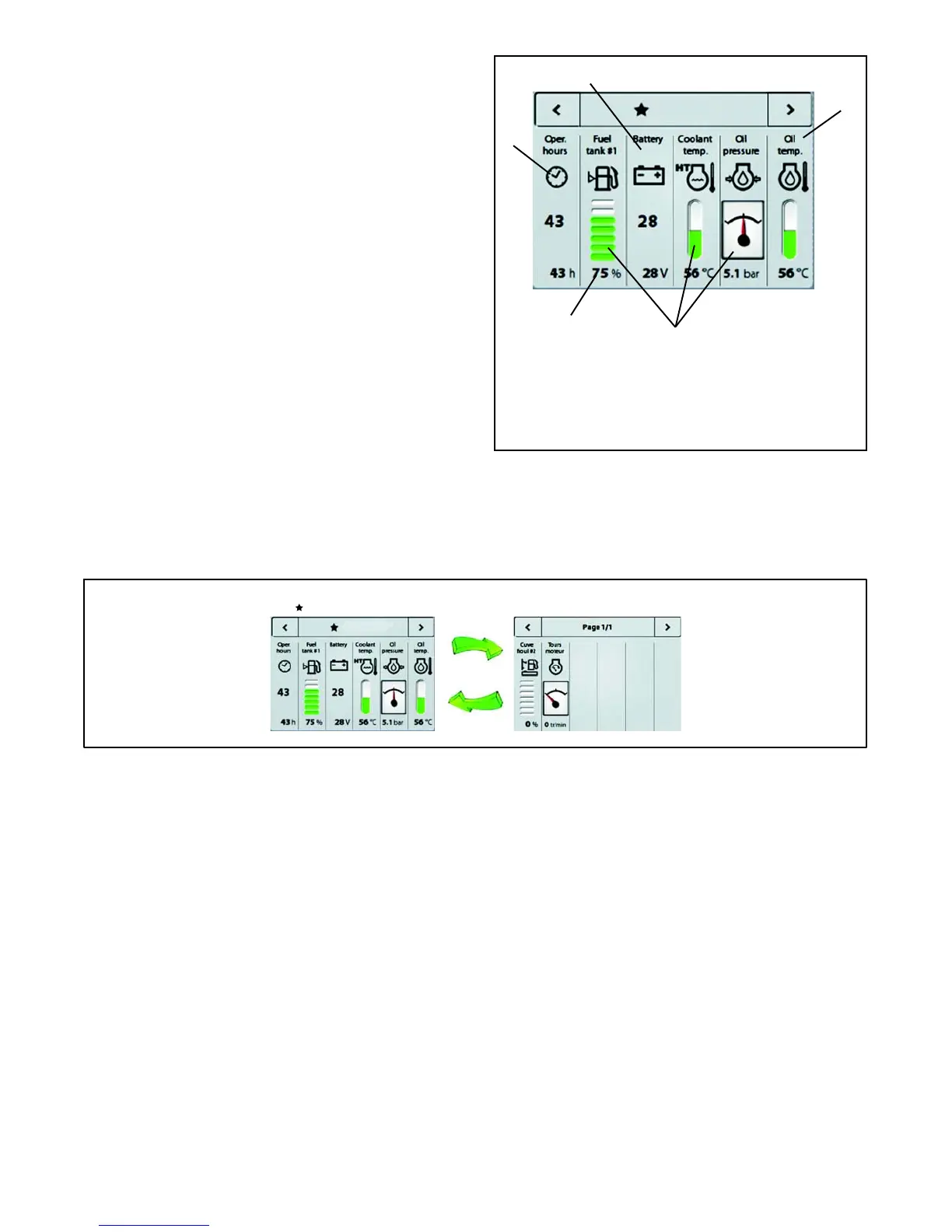

1. Information bar
2. Name/description of the mechanical value
3. A visual display of the value: bar graph, thermometer, meter
4. The numerical value (56_C, 28V, 5.1 bar, etc.)
5. A pictogram
1
5
4
3
2
Favorites
Figure 2-13 Favorites Page
The mechanical values can be scrolled through page by
page. Press the < and > buttons to scroll through the
pages. See Figure 2-14
Favorites page
Page 1/1
Favorites
Figure 2-14 Scrolling within the Favorites Page
To Next Page
