Operating fluids and maintenance Operation and Maintenance Manual
Maintenance activities

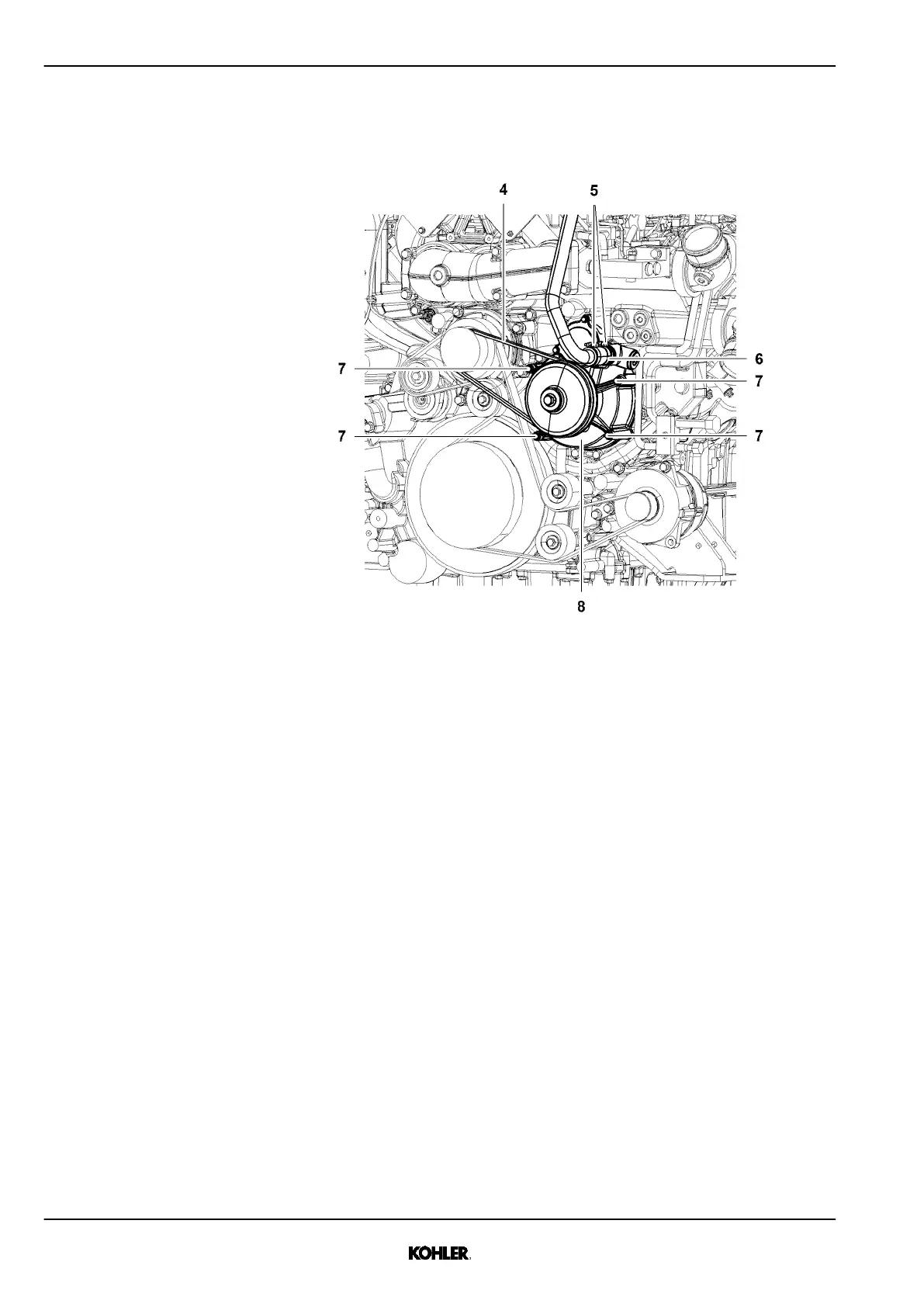

Fig. 57: Crankcase breather
While another person operates the turning device,
u
Remove the V-ribbed belt (crankcase ventilation) 4.
u
Loosen hose clips 5.
u
Remove line 6.
u
Release hex screws 7 (M8 8.8).
u
Remove the crankcase ventilation 8.
74
© 2017 by Kohler Co. All rights reserved.
KD27V12 33521029401_3_1 en 2017-07-01
