Operation and Maintenance Manual Operating fluids and maintenance
Maintenance activities

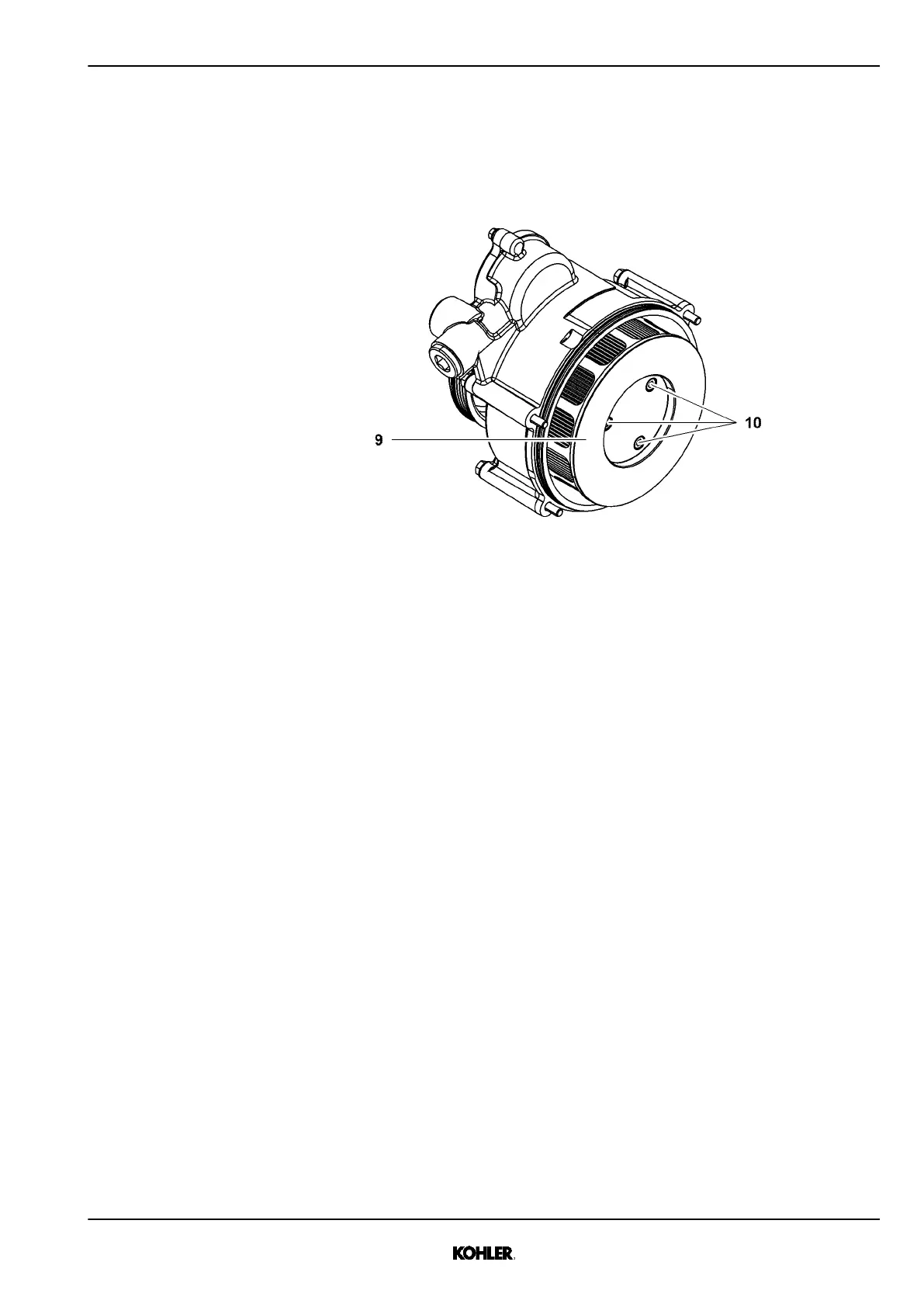

Fig. 58: Filter insert
u
Release socket head screws 10 (M8 10.9).
u
Remove filter insert 9.
u
Dispose of filter insert 9 (observe country-specific regulations).
u
Fit the new filter insert 9 and sealing rings.
u
Tighten socket head screws 10 (M8 10.9).
u
Install the crankcase ventilation 8.
u
Tighten hex screws 7 (M8 8.8).
u
Fasten line 6.
u
Tighten hose clips 5.
While another person operates the turning device,
u
lay on new V-ribbed belt (crankcase breather) 4 and ensure it is correctly
seated.
u
Install the bracket 3. (Please refer to the chapter on “Changing the crankcase
breather belt” for the procedure.)
u
Mount belt (fan) 2. (For the procedure, please refer to the chapter “Check state
of fan drive belt drive, replace if necessary”.)
u
Mount fan on the fan drive 1. See the generator set’s operating manual.
