Operating fluids and maintenance Operation and Maintenance Manual
Maintenance activities

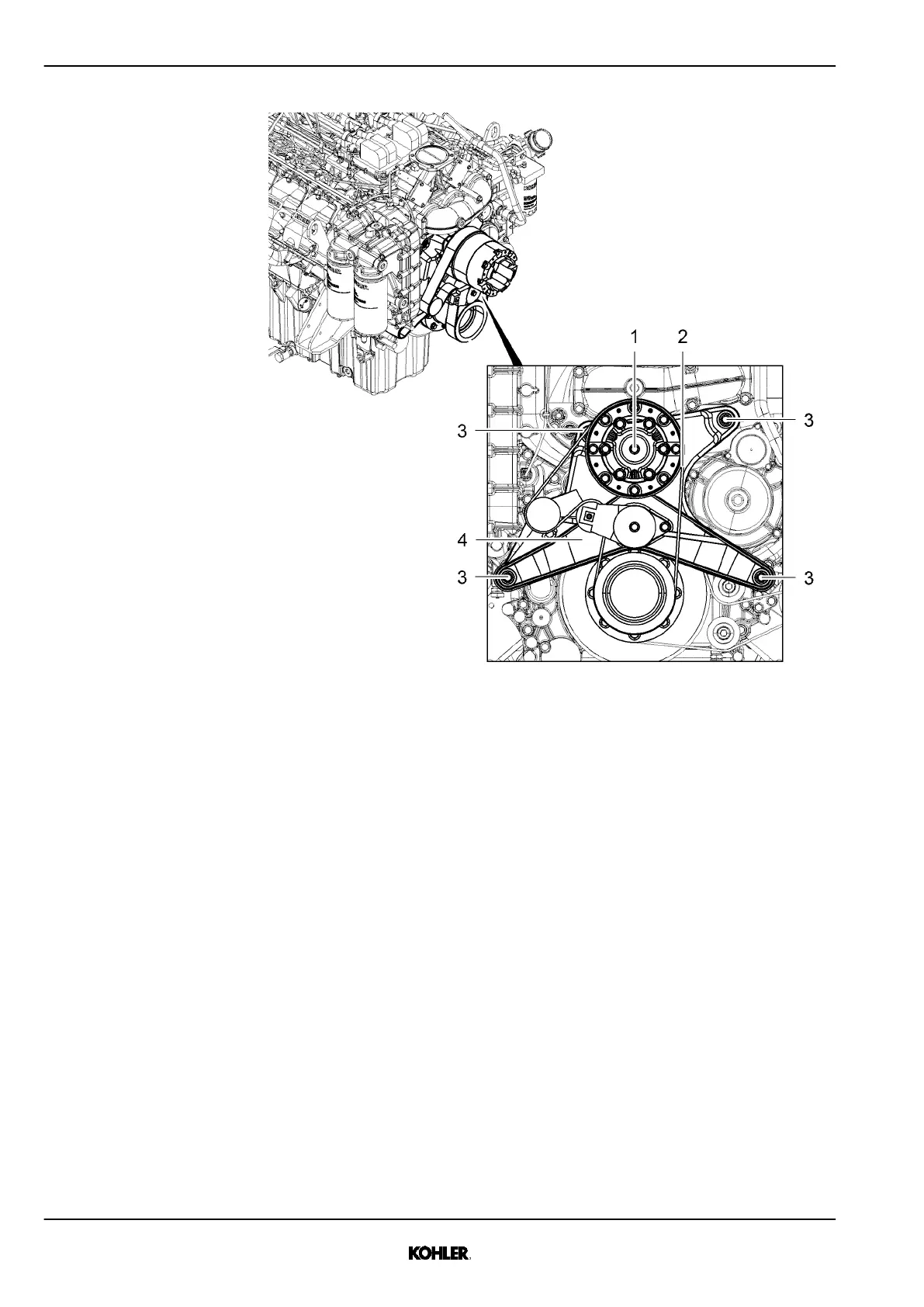

Fig. 64: V-ribbed belt drive
u
Remove fan from the fan drive 1. See the generator set’s operating manual.
u
Remove the V-ribbed belt (fan) 2. (For the procedure, please refer to the
chapter “Check state of fan drive belt drive, replace if necessary”.)
Procedure for removing the fan drive assembly 4:
u
Loosen external hexalobular screws 3 (M18 10.9 E24).
u
Remove fan drive assembly 4.
82
