INFORMATION FOR REPLACING THE FUNCTIONAL UNITS

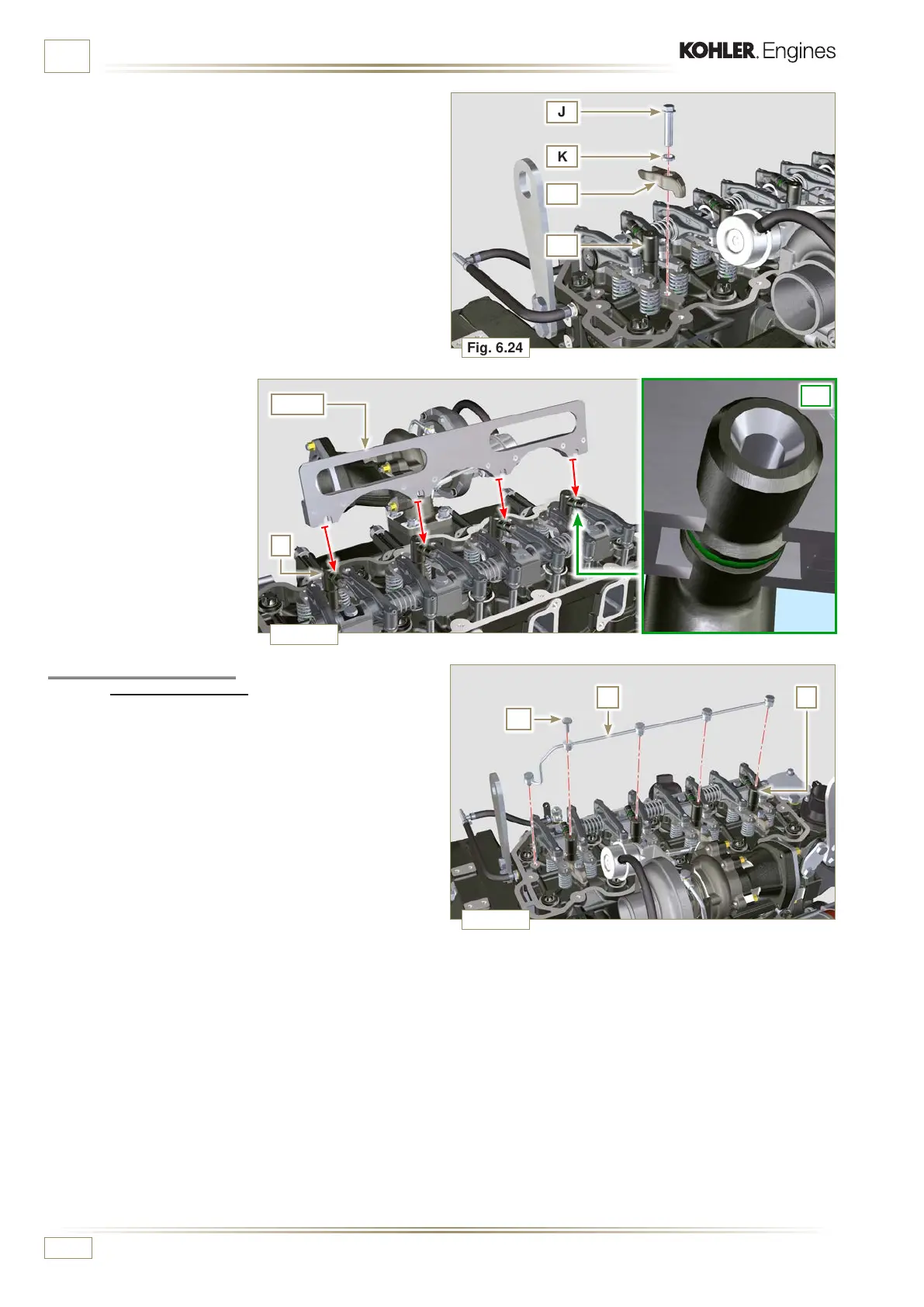

3 - Assemble the parts P, Q, R. and fit the parts so assembled
on the injector Z.
4 -
Insert tool ST_52 on the
injectors junctions Z (detail
X2).
5 - Tighten the screw J
(tightening torque to 20
Nm - Fig. 6.24).
6.1.8 Assembly of the
injector return pipes
1 - Position the tube N on the injectors Z and tighten screws
M (tightening torque to 14 Nm).
