INFORMATION FOR REPLACING THE FUNCTIONAL UNITS
6.2 Coolant pump replacement
6.2.1 Disassembly
NOTE: Perform the operations described in Par. 5.1.
Important
• Before proceeding with operation, carefully read Par. 3.3.2.
• The coolant pump is not repairable.

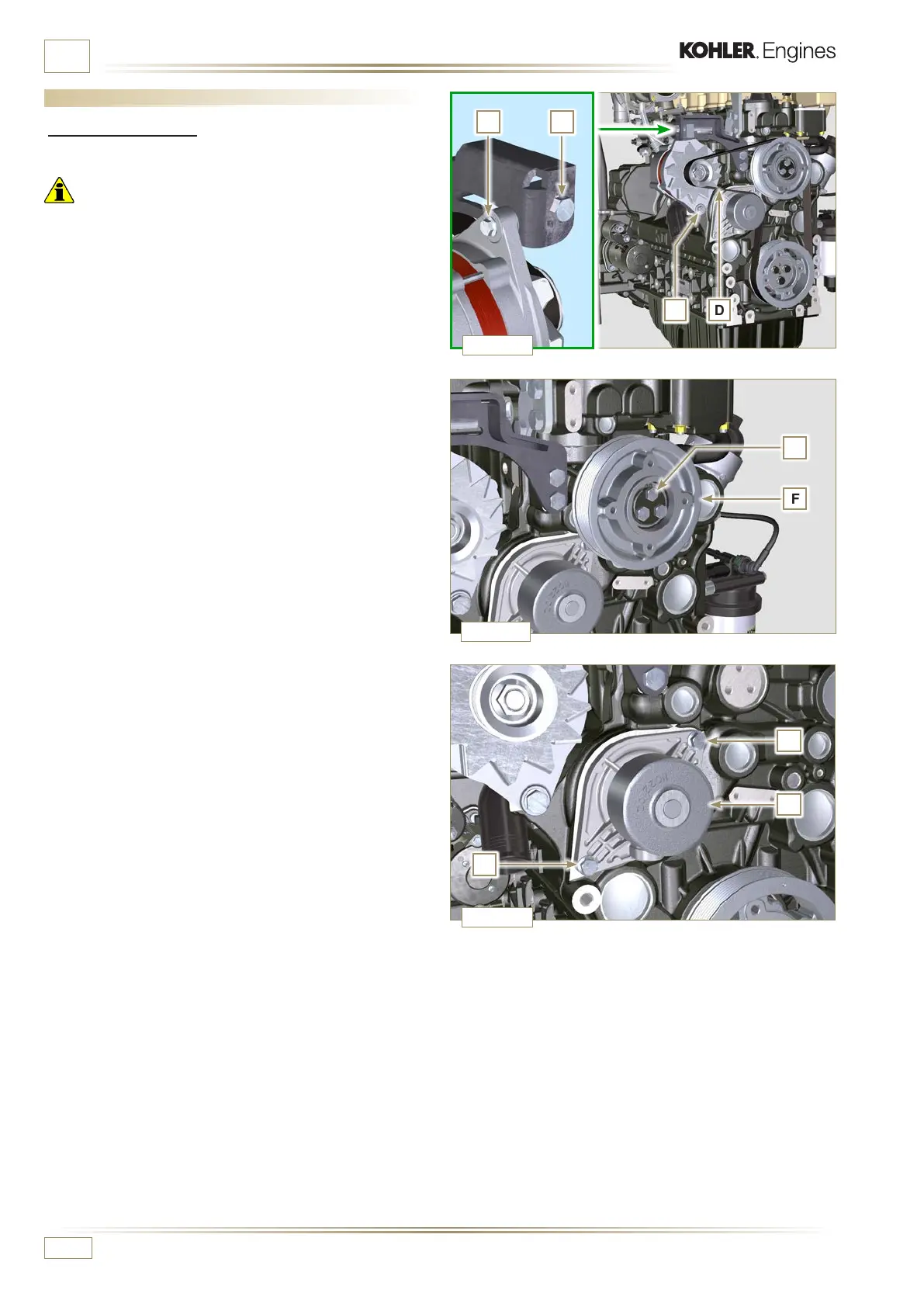

1 - Loosen the screws A and B.
2 - Loosen capscrew C and disconnect voltage from belt D
and remove belt D.
3 - Undo the screws E and remove the pulley F.
4 -
Undo the screws G and remove the pump H with the
relevant gasket.
