INFORMATION FOR REPLACING THE FUNCTIONAL UNITS

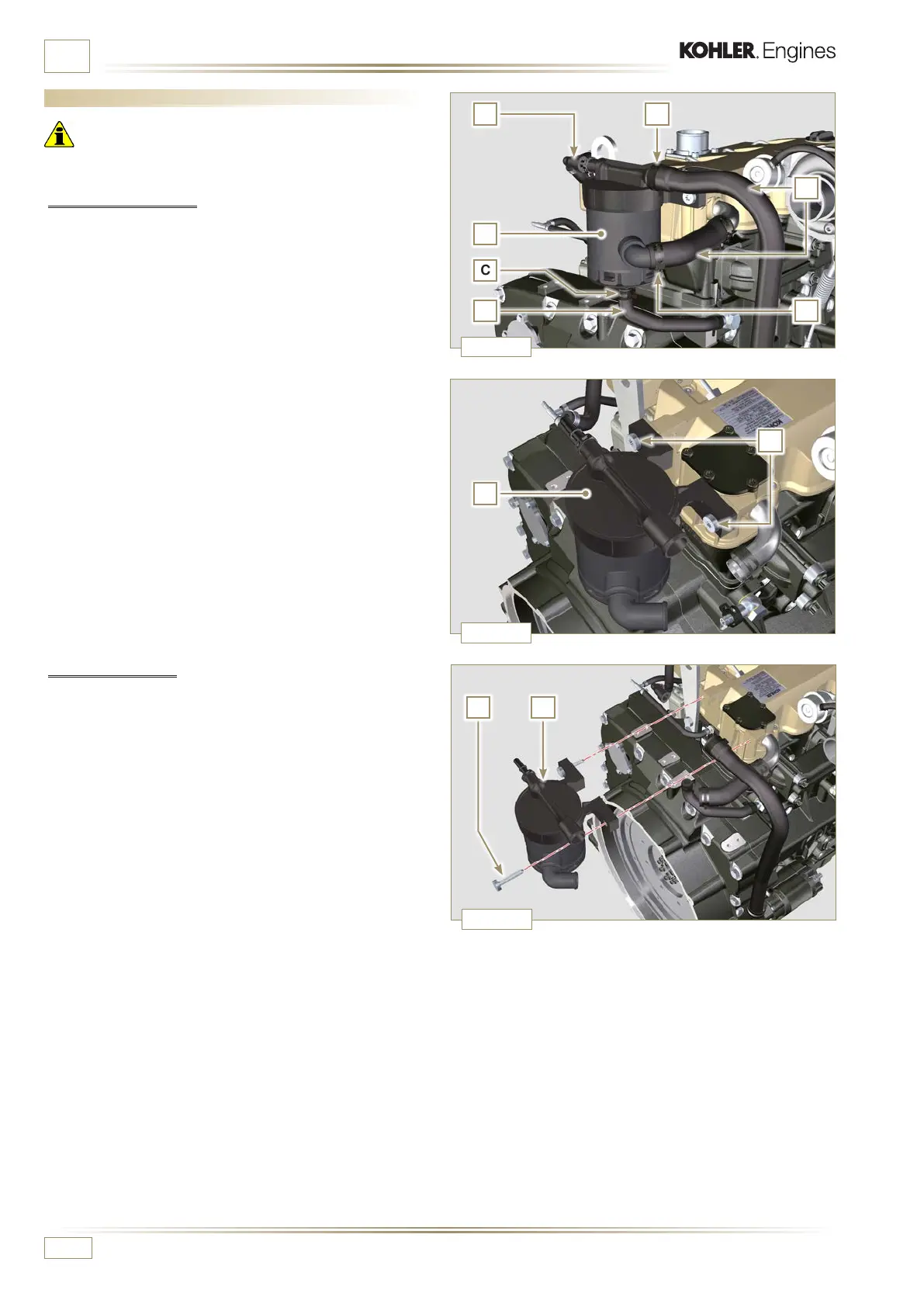

6.3 Oil vapour separator replacement
Important
• Before proceeding with operation, carefully read Par. 3.3.2.
6.3.1 Disassembly
1 - Remove quick fitting A.
2 - Release the clamps B and C.
3 - Remove hose D from breather body E.
4 - Remove capscrews F and remove breather body E.
6.3.2 Assembly
1 - Secure breather body E by means of capscrews F
(tightening torque at 22 Nm).
2 - Fit hose D onto breather body E (Fig. 6.38).
3 - Secure the clamps B and C (Fig. 6.38).
