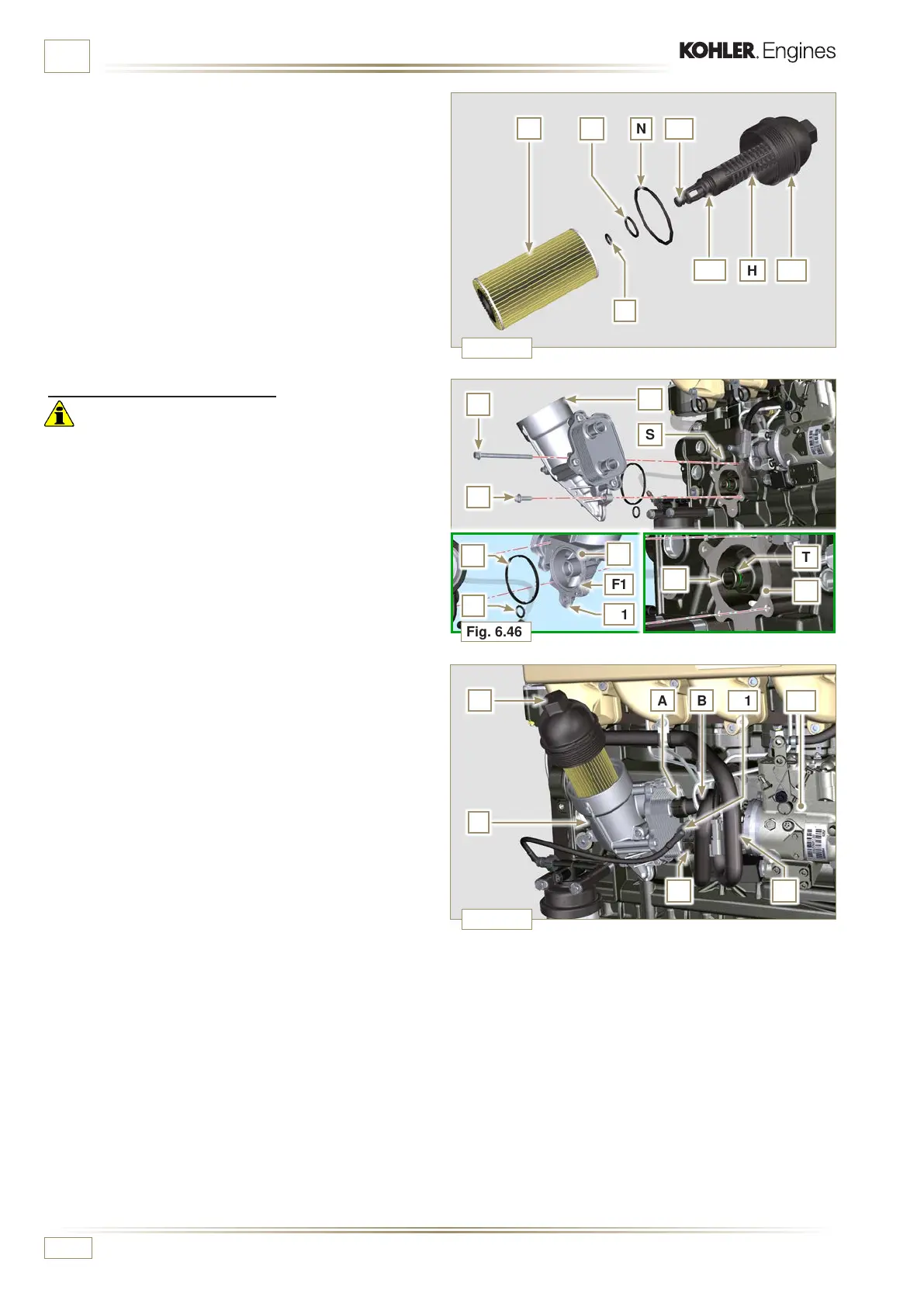

INFORMATION FOR REPLACING THE FUNCTIONAL UNITS
5 - Lubricate and insert gaskets L, M and N in the L1, M1 and
N1 seats of element holder cover H.
6 -
Insert element P into element holder cover H.
6.4.3 Oil Cooler unit assembly
Important
• In the event of assembly of union U on crankcase S, (manual
tightening torque with Loctite 2701 on the thread).
1 - Check that the surface Q on the support E and on the
crankcase S are free from impurities.
2 - Lubricate and insert the gasket T on the fitting U.
3 - Lubricate and insert the gaskets on the support E:
F in seat F1;
G in seat G1.
4 - Fit the support R with the screws C and D (tightening
torque at 10 Nm).
5 -
Insert and tighten the cartridge support H on the filter
support E (tightening torque at 25 Nm).
6 - Fit the hoses B on the support E and secure the hoses B
with the clamps A.
7 - Fit quick coupling N1 onto pump J1.
