Kohler KDI Series

7
100
_07
Fig. 7.31
L
M
H
Fig. 7.32
N
P
Fig. 7.33
Q
S
R
Fig. 7.34
T
V
U
M
ED0053029590

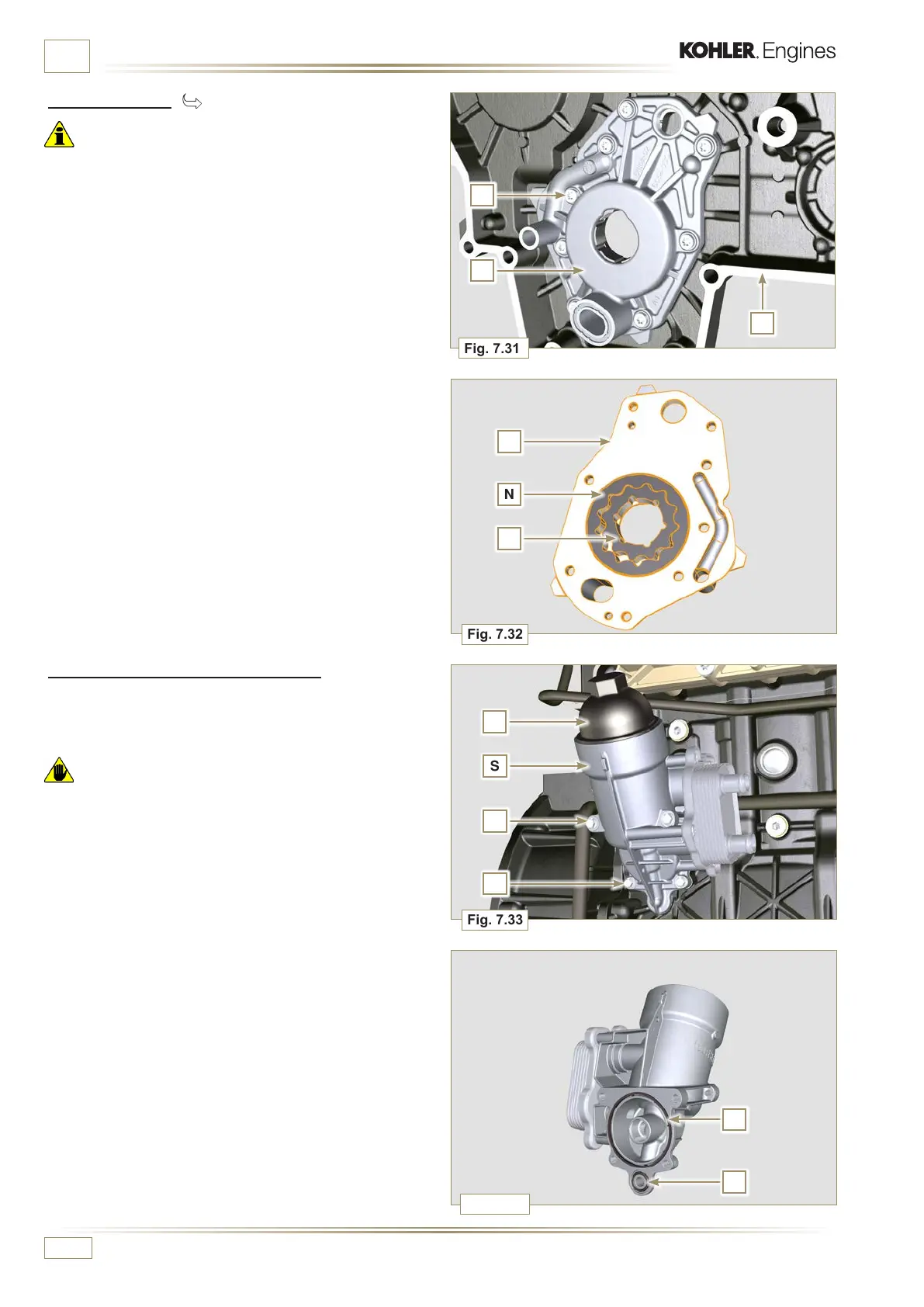

INFORMATION FOR DISASSEMBLY
7.8.4 Oil pump ( )
Important
• The oil pump is not repairable.
1 - Undo the screws L and remove the pump unit M from the
timing system carter H.
2 -
Remove the rotors N and P from oil pump carter M.
7.8.5 Oil Cooler unit and lub. oil lter
1 - Undo element holder cover V.
2 - Undo the screws Q and R and remove the Oil Cooler unit S.
Warning
• Use a suitable container to recover any residue oil.
• Oil Cooler unit S is not repairable.
3 -
Remove the gaskets T and U.
NOTE:
To replace the oil cartridge, refer to operations 6 and
7 of Par. 6.10.2.
