Kohler KDI Series

7
101
_07
Fig. 7.36
AG
AH
AL
Fig. 7.35
AA
AC
AD
AB
AA
AF
AA
AE
Fig. 7.37
A
B
C H
F
D
EG
Fig. 7.38
ED0053029590

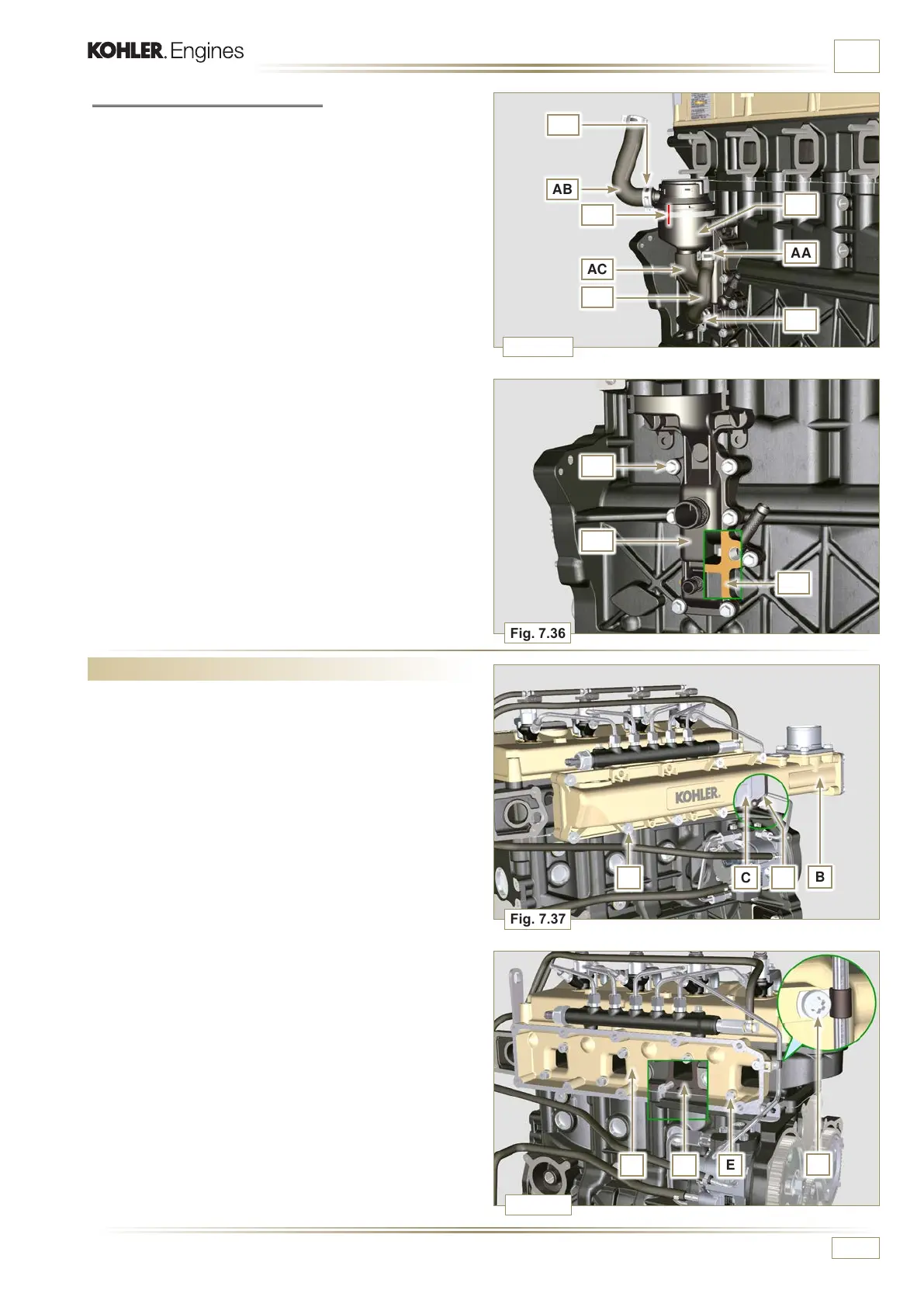

INFORMATION FOR DISASSEMBLY
7.8.6 Oil vapour separator unit
1 - Release the clamps AA.
2 -
Remove the manifolds AB, AC and AD.
3 - Remove the clamp AE by carefully cutting it at the point
indicated and remove the oil separator.
4 -
Undo the screws AG.
5 - Remove flange support AH and the gasket seal AL.
7.9 Intake manifold disassembly
1 -
Undo the screws A and remove the semi-manifold B
(ST_05).
2 - Remove the separation plate C and the gaskets H.
3 -
Undo the screws D (ST_06) and E.
4 - Remove the semi-manifold F and the gasket G.
