Kohler KDI Series

7
99
_07
Fig. 7.29
D FE
Fig. 7.30
G
H
Fig. 7.28
ABC
Fig. 7.27
C
H
D
W
ED0053029590

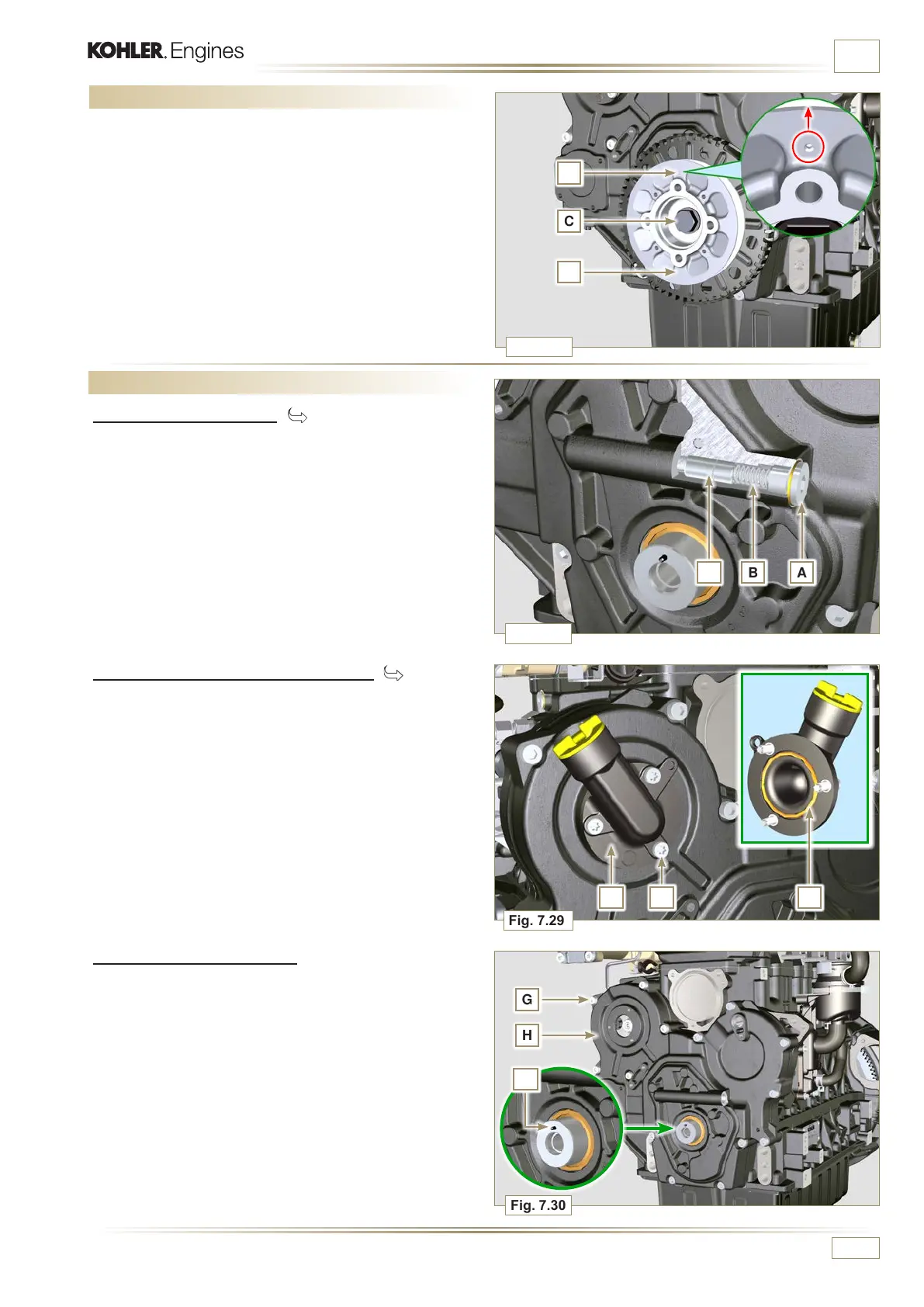

INFORMATION FOR DISASSEMBLY
7.8 Lubrication circuit disassembly
7.8.1 Oil pressure valve ( )
1 - Undo the cap A.
2 - Remove the spring B.
3 - Remove the valve piston C using a magnet.
7.8.2 Timing system carter oil lling ange ( )
1 - Undo the screws D and remove the oil filling flange E
(ST_06).
2 - Remove the gasket F.
7.8.3 Timing system carter
1 - Ensure that the crankshaft with the 1st cylinder is at the
TDC (taper pin W must be facing upwards).
2 - Undo the screws G.
3 - Remove the timing system semi-crankcase H.
7.7 Crankshaft and target wheel pulley disassembly
1 -
Position the crankshaft with the 1st cylinder at TDC,
reference H.
2 - Undo the screw C clockwise.
3 - Remove the drive pulley unit and the target wheel D.
