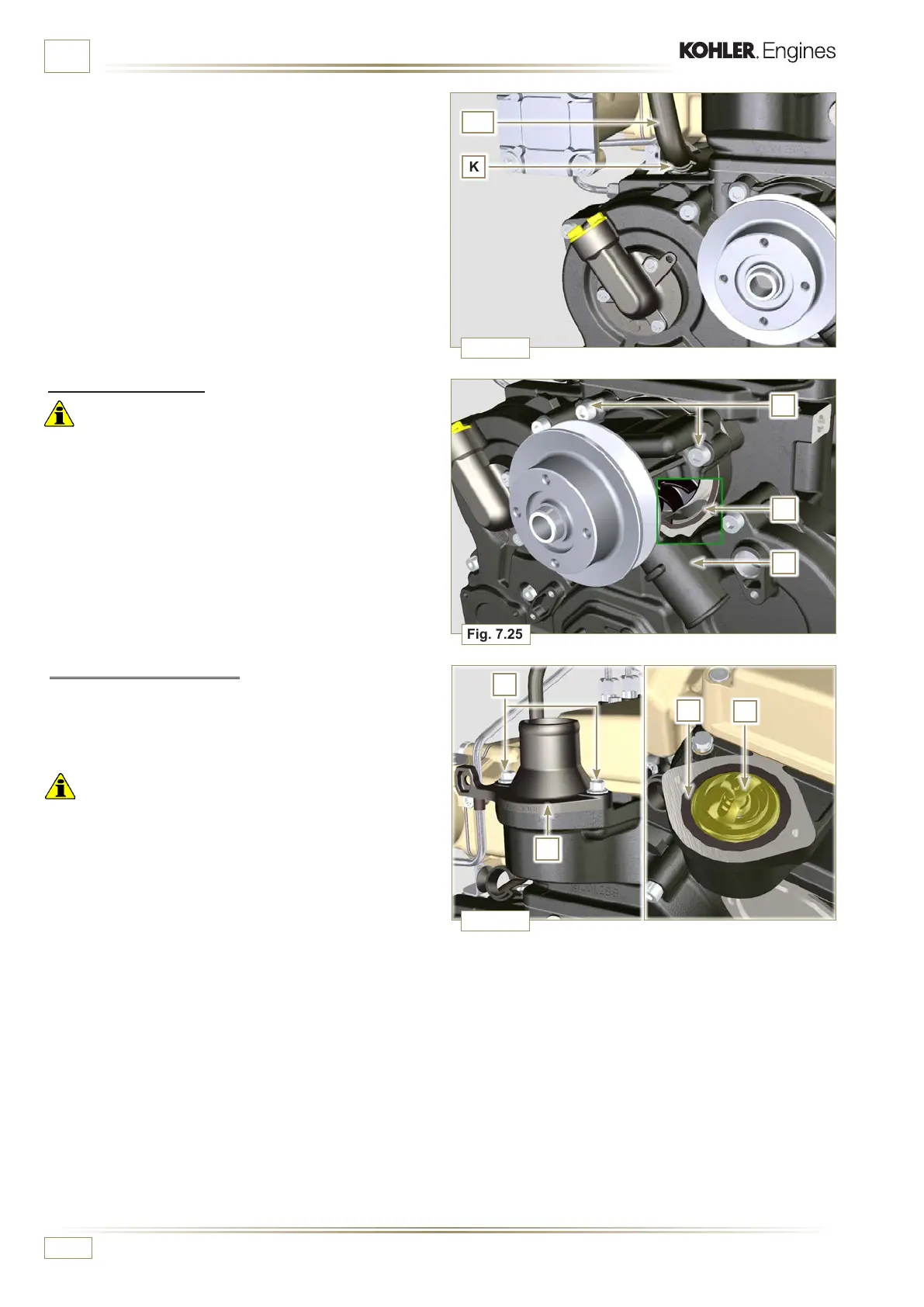

INFORMATION FOR DISASSEMBLY
7.6.2 Coolant pump
Important
• The pump B is not repairable.
1 - Undo the screws A and remove the water pump unit B with
its gasket C.
7.6.3 Thermostatic valve
1 - Undo the screws A and remove the thermostatic valve
cover B.
2 - Remove the thermostatic valve C and its gasket.
Important
• Always replace the gasket D every time it is disassembled.
3 - Check that the air bleeding hole is not clogged or blocked
(Par. 2.11.4).
3 -
Release the clamp K and remove hoses AA.
