Kohler KDI Series

7
97
_07
Fig. 7.22
A
C
B
Fig. 7.21
H
L
N
H
Fig. 7.23
J
AA
W
Z Z
Z
Fig. 7.20
D
G
D
F
M
N
E
ED0053029590

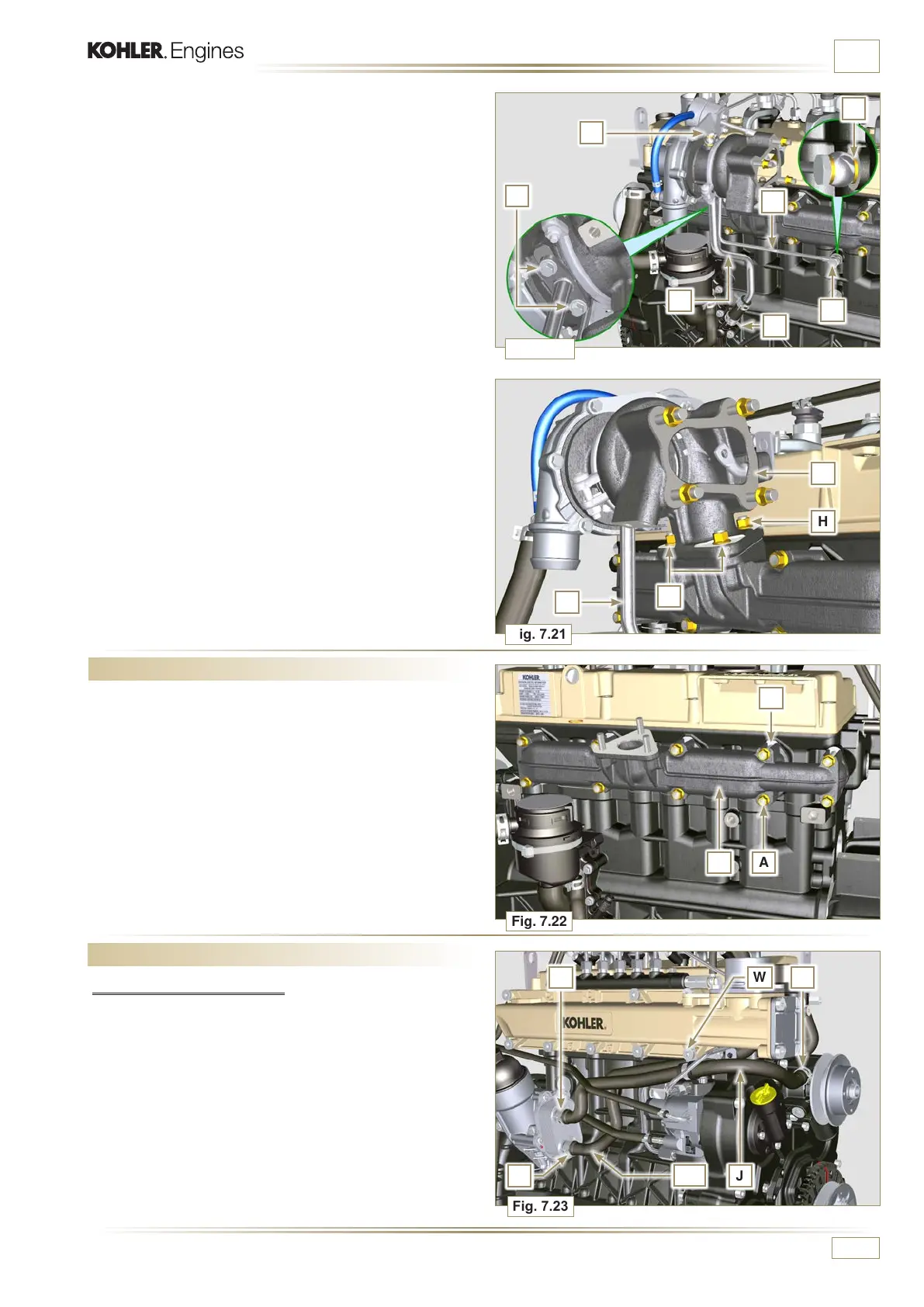

INFORMATION FOR DISASSEMBLY
5 - Undo the nuts H and remove the turbocharger L.
6 - Remove tube N.
7.5 Exhaust manifold disassembly
1 -
Undo the nuts A and remove the manifold B and the
gaskets C.
2 - Close the openings and manifolds to prevent foreign bodies
from entering.
2 -
Unscrew the fittings D and remove the pipe E with the
relative gaskets G.
3 - Undo the screws F.
4 - Release clamp M.
7.6 Coolant recirculation components disassembly
7.6.1 Oil Cooler manifold
1 - Release the clamps Z.
2 - Undo the screw W and remove hoses J (ST_05).
