Kohler KDI Series

7
96
_07
Fig. 7.16
AN
AM
A
B
C
Fig. 7.19
Fig. 7.17
AQ
AP
Fig. 7.18
A
B
ED0053029590
INFORMATION FOR DISASSEMBLY

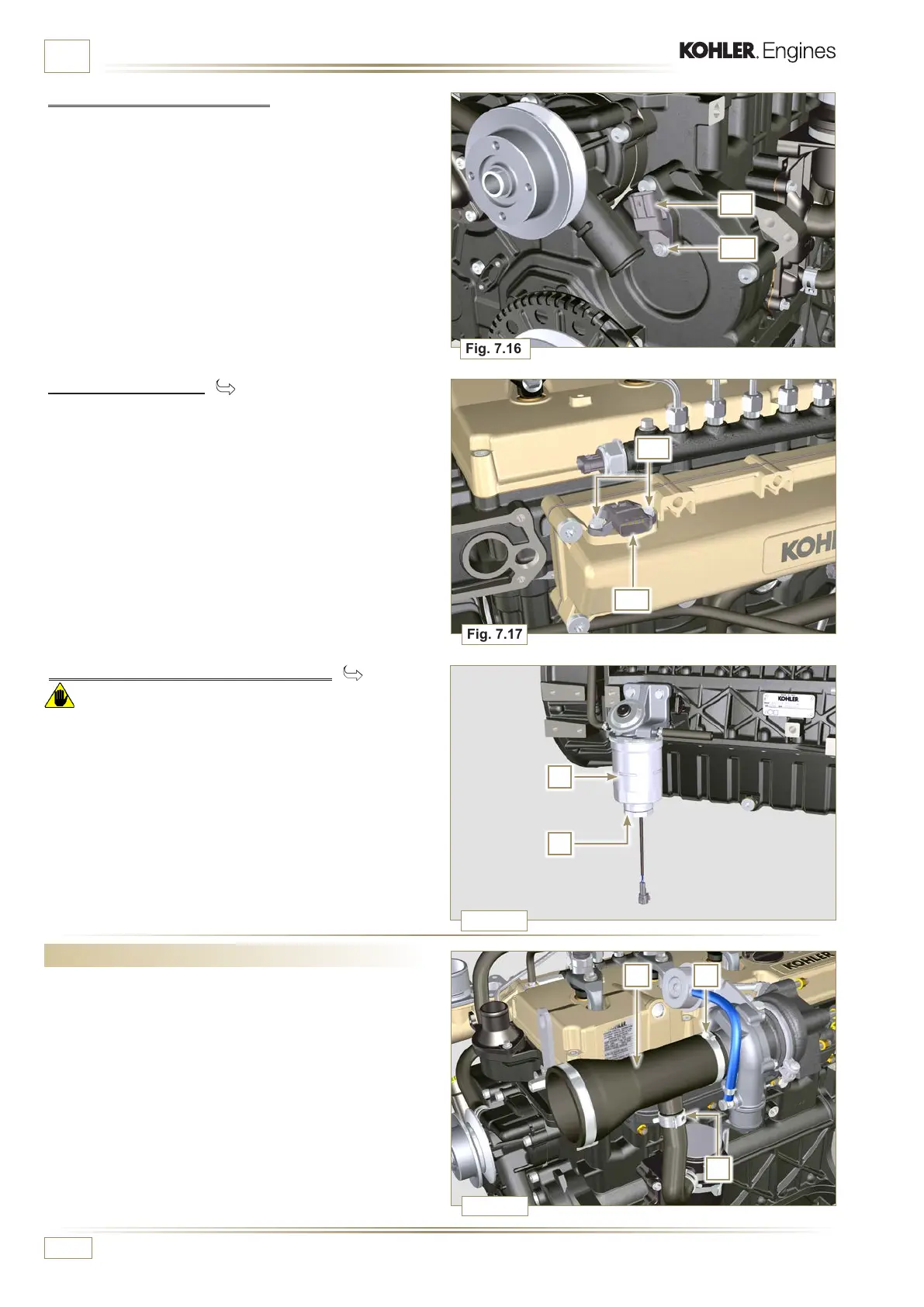

7.3.4.4 Camshaft phase sensor
1 - Undo the screw AM and remove the sensor AN with the
relative spacer (ST_06).
7.3.4.5 T-MAP sensor ( )
1 - Undo the screw AP and remove the sensor AQ (ST_06).
7.4 Turbocharger disassembly
1 - Release the clamps A and B and remove the manifold C.
7.3.4.6 Fuel lter water detection sensor ( )
Warning
• The fuel filter is not always mounted on the engine.
• When disassembling the sensor A, use a suitable container
to recover the fuel contained in the cartridge B.
1 - Unscrew the sensor A from the cartridge B.
