118
8
_07
X
Z
Fig. 8.3
KW
Q
X1
Z1
S
Y1
K1W1
Fig. 8.4
R
Y
ED0053029590
INFORMATION ABOUT OVERHAULING

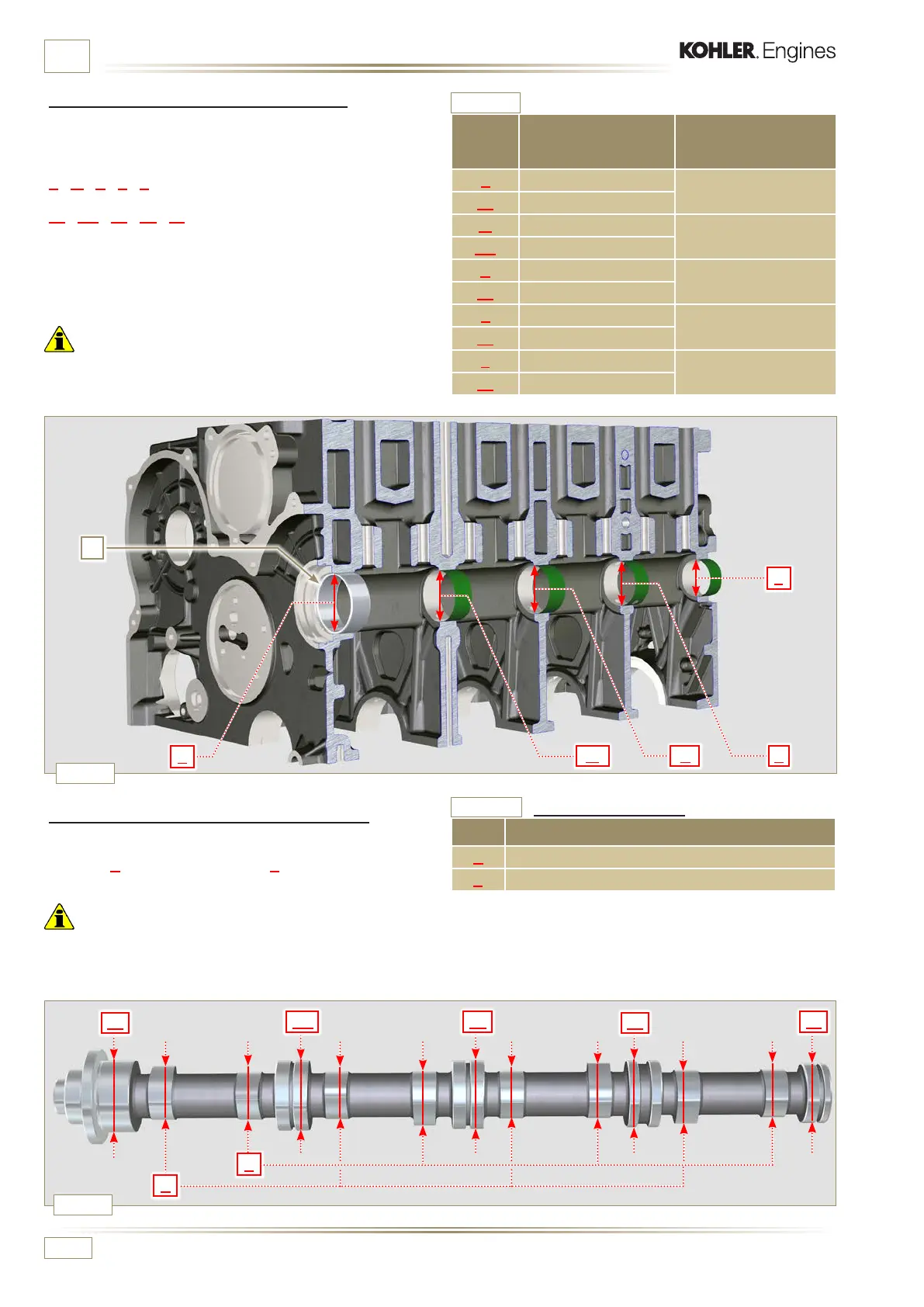

8.2.3 4-cylinder camshaft housing check
The camshaft housings only contain the timing system side
bushing Q.
Use an internal dial gauge to measure the diameters of housings
X - W - K - Y - Z.
With a micrometer, measure the diameters of gudgeon pins
X1 - W1 - K1 - Y1 - Z1 (Fig. 8.4).
According to the values measured, calculate the clearance
between the housing and gudgeon, which is to observe the
values in Tab. 8.2a.
The MAX value of wear allowed is 0.120 mm.
Important
Tab. 8.2a details the dimensional values of new components
only.
Tab. 8.2
REF. DIMENSIONS (mm)
CLEARANCE
VALUE (mm)
X 44.000 - 44.025
0.040 - 0.085
X1 43.940 - 43.960
W 43.000 - 43.025
0.060 - 0.105
W1 42.920 - 42.940
K 42.000 - 42.025
0.060 - 0.105
K1 41.920 - 41.940
Y 41.000 - 41.025
0.060 - 0.105
Y1 40.920 - 40.940
Z 36.000 - 36.025
0.060 - 0.105
Z1 35.920 - 35.940
8.2.4 Camshaft control for 4 cylinder engine
W i t h a m i c r o m e t e r, m e a s u r e t h e m a x i m u m d i m e n s i o n s o f i n t a ke
camshaft R and exhaust camshaft S (Tab. 8.2b).
The MAX value of wear allowed is 0.1 mm.
Important
Tab. 8.2a details the dimensional values of new components
only.
Housing and camshaft gudgeon dimensions.
REF. DIMENSIONS (mm)
R 32.638 - 32.700
S 32.998 - 32.060
Tab. 8.2b
Camshaft dimensions
