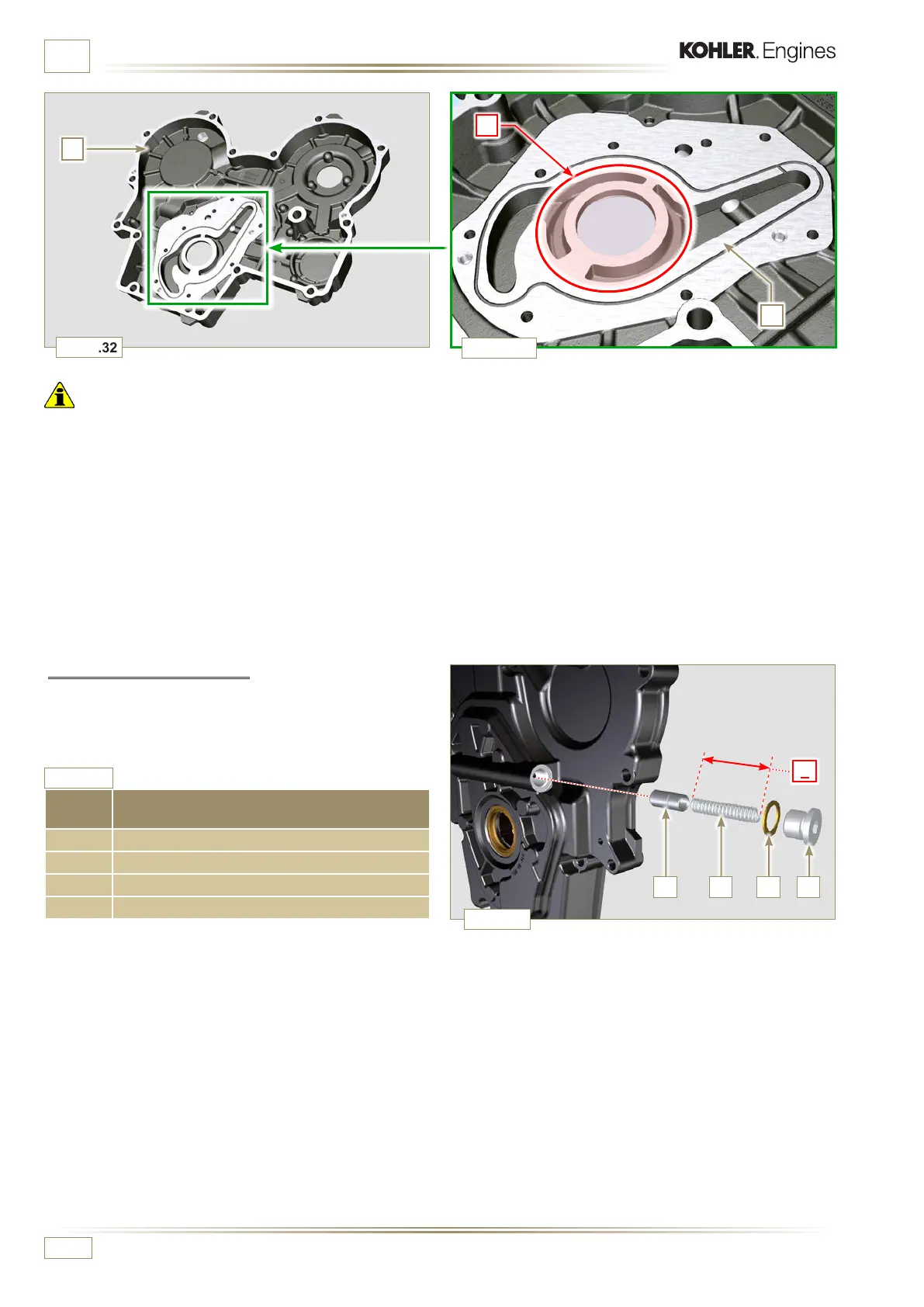

Fig. 8.33
F
BCDE
Fig. 8.32
Q
P
Fig. 8.32a
R
ED0053029590
INFORMATION ABOUT OVERHAULING
8.7.3 Oil pressure valve check
Measure the free length F o f s p r i n g D, which must be 47.91 mm.
If the measured value does not correspond to the value
indicated, replace spring D.
POS. DESCRIPTION
B Plug
C Gasket
D Spring
E Piston
Tab. 8.14
Important
• Replace carter R complete with its oil pump, if there are signs
of wear in area P of surface Q (Fig. 8.32 - 8.32a).
