INFORMATION ABOUT OPTIONAL COMPONENTS
11.7.1 Disassembly

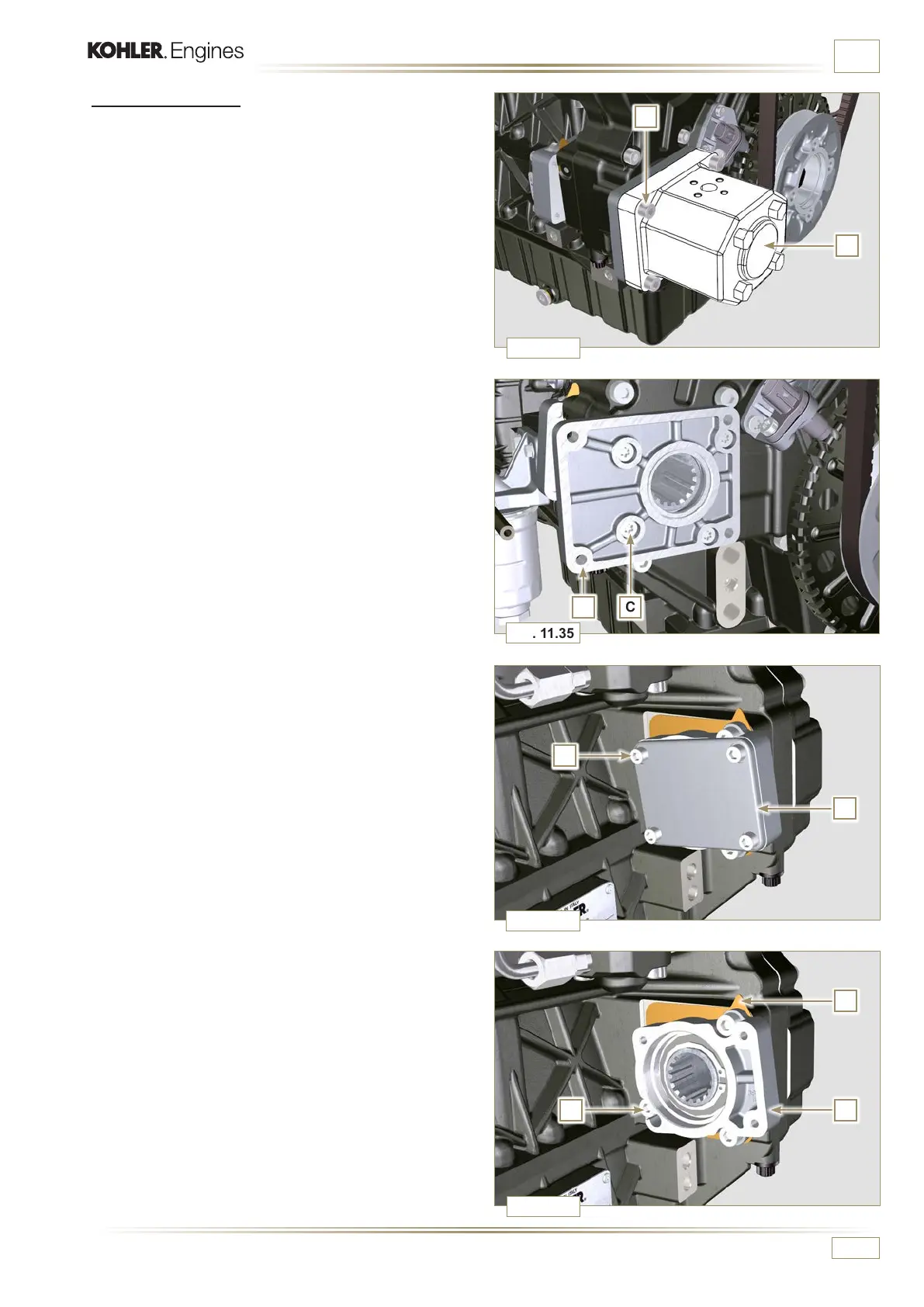

1 - Undo the screws A and remove the pump B.
2 -
Undo the screws C and remove the flange D.
3 -
Undo the screws E and remove the cover F.
4 -
Undo the screws G and remove the flange K with the
components H, J, M, N and P.
