INFORMATION ABOUT OPTIONAL COMPONENTS

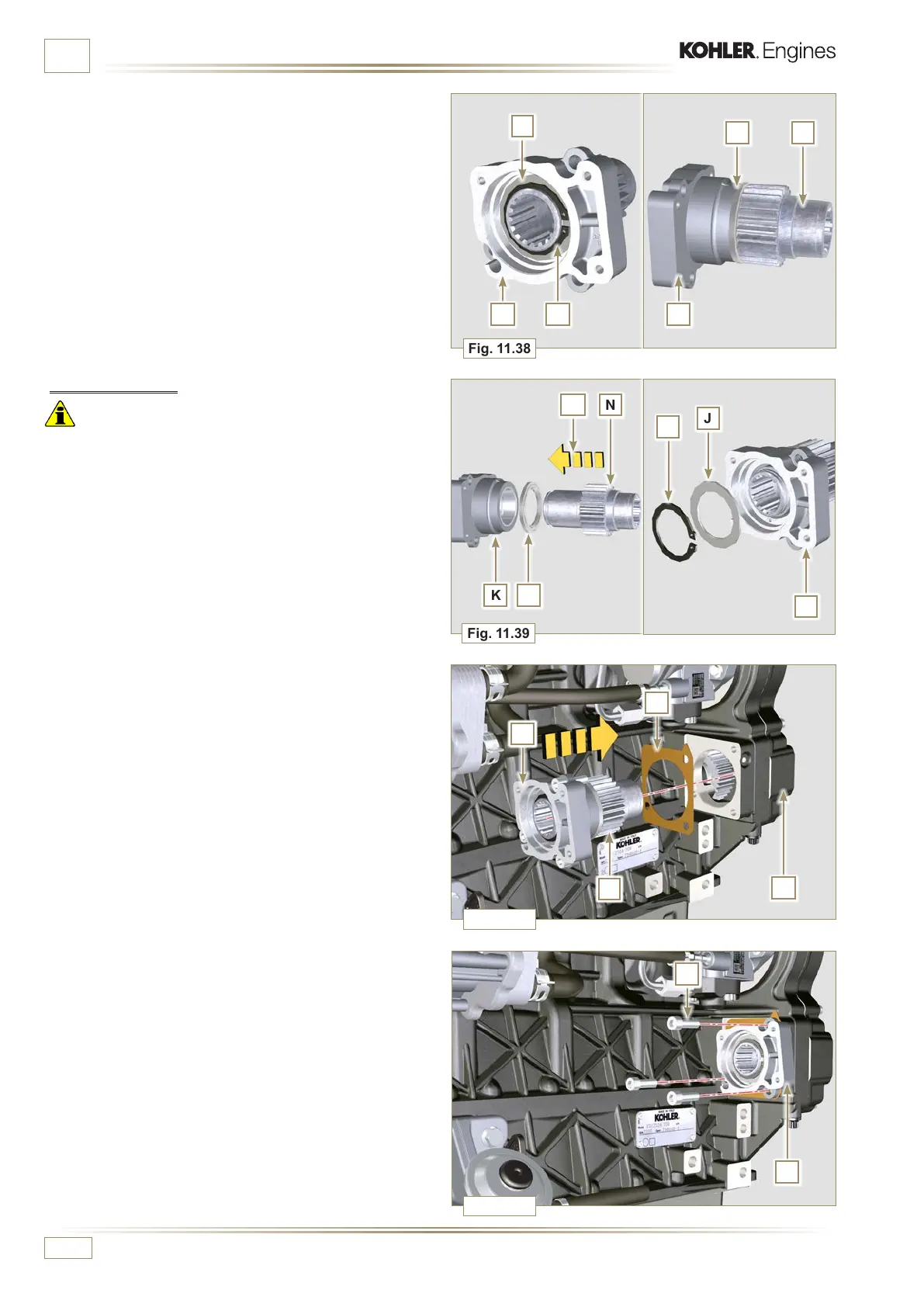

5 - Remove the retainer ring H and the shoulder ring J from
the flange K.
6 - Remove the gear N and the shoulder ring M from the flange
K.
11.7.2 Assembly
Important
• Always replace the gasket P at each assembly.
• Lubricate the gear N with oil.
• Always change capscrews G with new ones or alternatively
apply Loctite 2701.
1 - Insert the gear N in the flange K in the direction of the
arrow W inserting the shoulder ring M.
2 - Insert the shoulder ring J on the flange K and clamp the
gear N using the retainer ring H.
3 -
Position flange K onto crankcase Q inserting gasket P and
insert gear N in crankcase Q.
4 -
Secure the flange K using the screws G (tightening torque
at 25 Nm).
