INFORMATION ABOUT OPTIONAL COMPONENTS
4 - Undo the screws E and remove the shaft support box F.
5 -
Undo the screws G and remove the plate H.

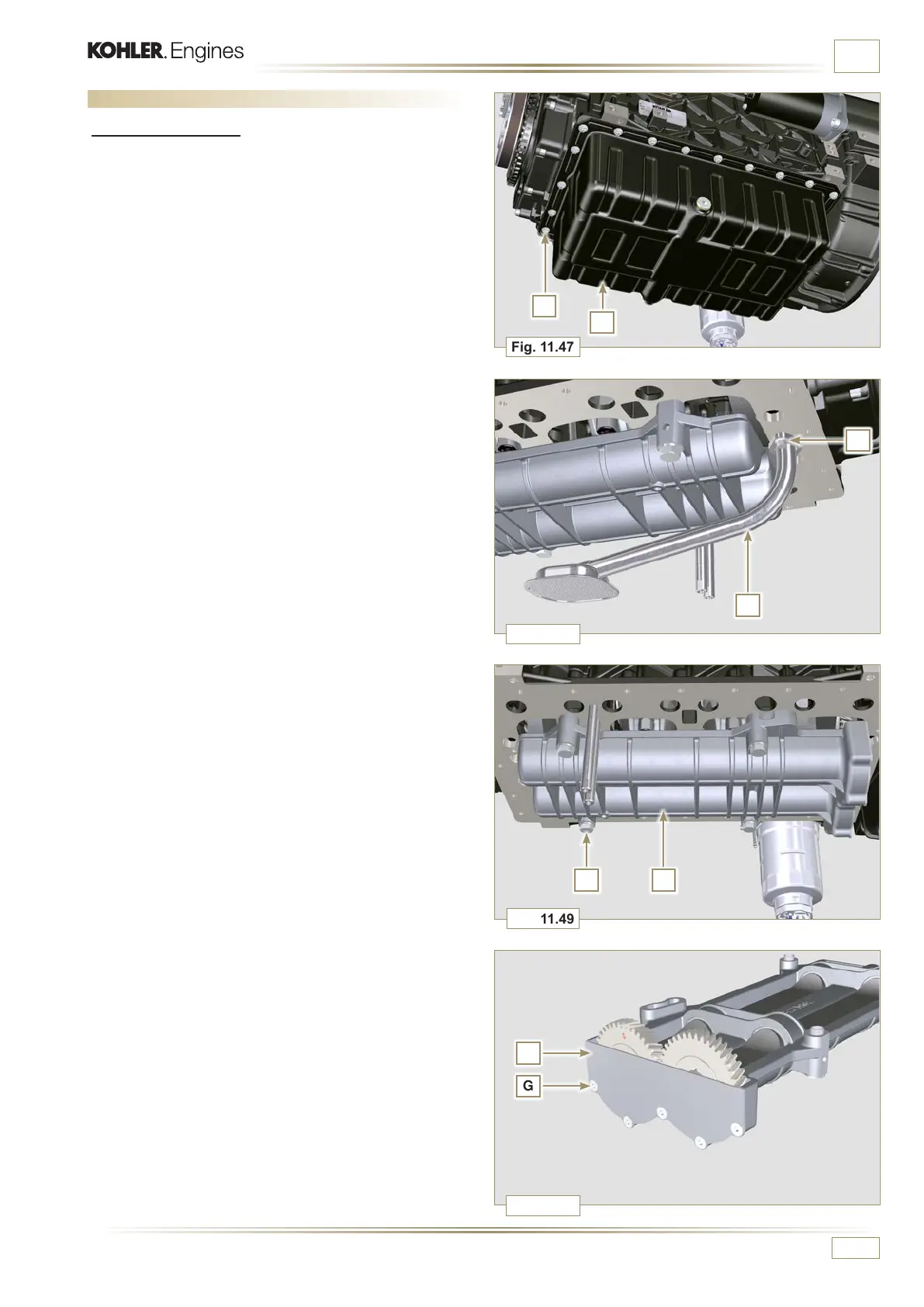

11.9 Balancer device (replacement)
11.9.1 Disassembly
1 - Perform the operations described in Par. 5.2.
2 - Undo the screws A and remove the oil sump B.
3 -
Undo the screws C and remove the hose D.
