6
80
_07
Fig. 6.36
C
A
Fig. 6.37
A
D
B
C
E
Fig. 6.38
F N
R N
G
Fig. 6.39
N
M
L
H
ED0053029590
INFORMATION FOR REPLACING THE FUNCTIONAL UNITS
3 - Fit the connector A on the valve C.
NOTE: Perform the operations described in Par. 10.2.

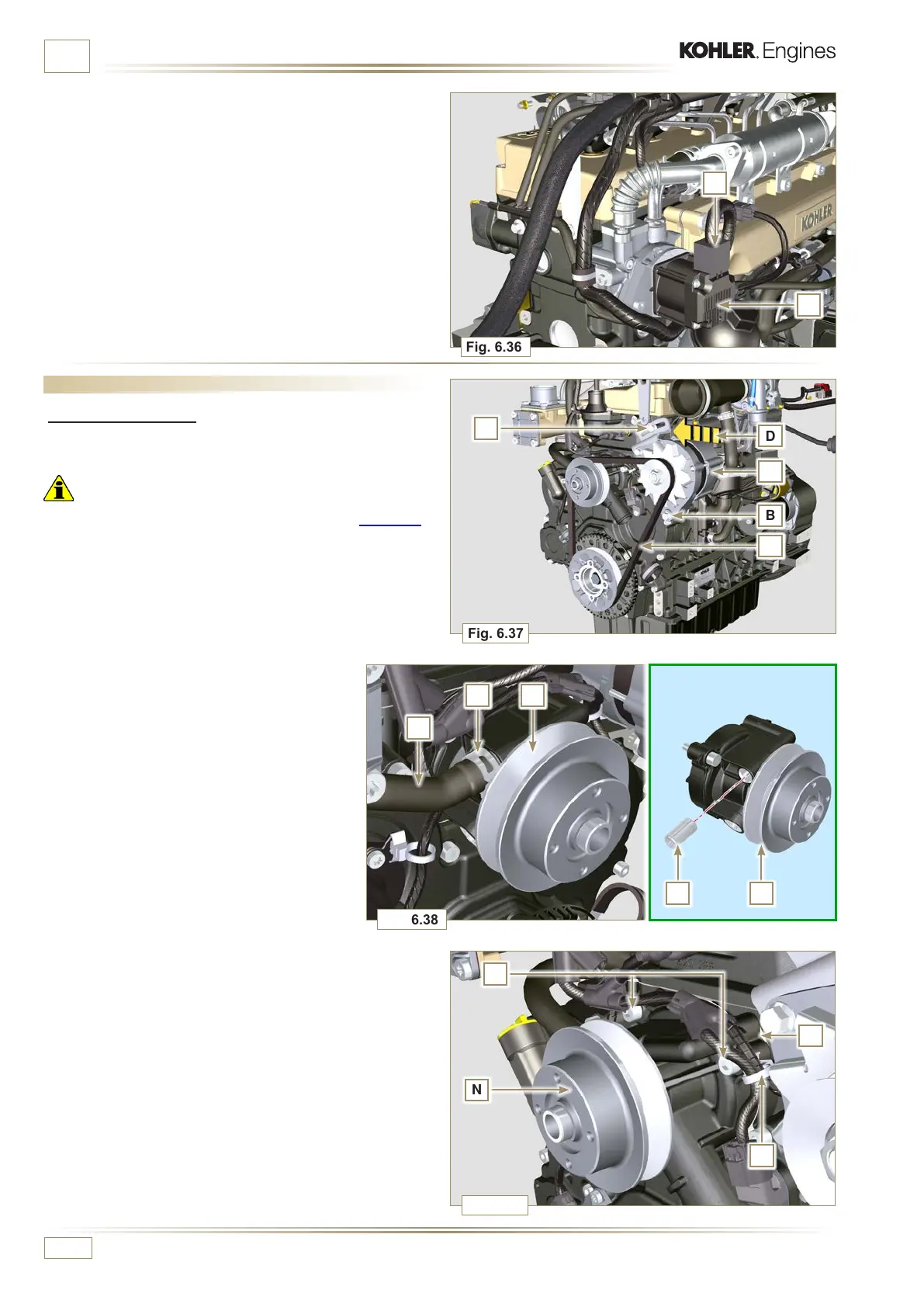

6.5 Coolant pump replacement
6.5.1 Disassembly
NOTE: Perform the operations described in Par. 5.1.
Important
• Before proceeding with operation, carefully read Par. 3.3.2.
• The coolant pump is not repairable.
• If the engine is fitted with the Poly-V belt, perform the
operations described in Par. 11.3.
1 - Loosen the screws A and B.
2 - Push the alternator C in the direction of the arrow D and
remove the belt E.
3 - Release clamp F and disconnect tube G from
the pump N.
NOTE: If union R, is disassembled, replace it
or alternatively apply Loctite 2701 on
the thread when assembling on pump G
(tightening torque of 20 Nm).
4 -
Release the clamp M from the water pump N.
5 - Undo the screws H and remove the pump N with the
relevant gasket L.
