COMPONENTS AND MAINTENANCE LOCATIONS
TP-6901 3/16a Components and Maintenance Locations 11
Section 3 Components and Maintenance
Locations

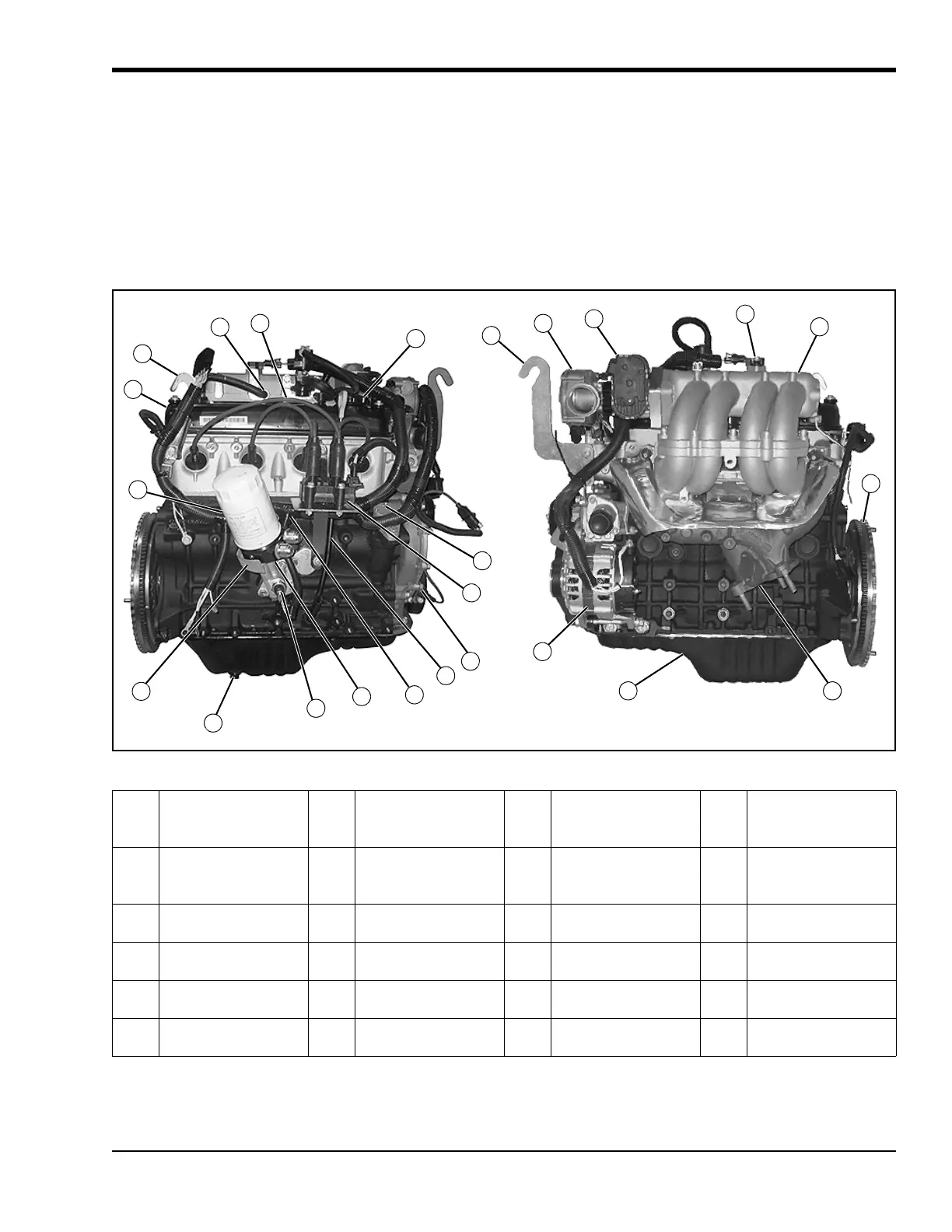

3.1 MODEL KG2204 ENGINE SIDE VIEWS
Figure 3-1
1 Rocker Arm Cover 7 Air-Fuel Mixer 13 Oil Pan 19
Knock Sensor (if
equipped with
turbocharger)
2 Rear Hanger 8 Throttle Body 14
Battery Charging
Alternator
20
Oil Cooler Adapter
(not included on
all models)
3
Crankcase
Breather
9 TMAP Sensor
1
1) Air Temperature / Manifold Absolute Pressure (TMAP)
15 Oil Pump Drive 21 Oil Pan Drain Plug
4 Spark Plug Wires 10 Intake Manifold 16 Ignition Coil 22
Oil Pressure
Sender
5 Oil Filler Cap 11 Flywheel 17
Crankshaft
Position Sensor
23 Oil Filter Base
6 Front Hanger 12 Exhaust Manifold 18
Oil Dipstick and
Tube
24 Oil Filter
2
3
4
5
7
1
8
9
1213
10
14
6
21
17
16
18
19
23
24
22
11
15
20
K0695 K0403
To Next Page
