COMPONENTS AND MAINTENANCE LOCATIONS
14 Components and Maintenance Locations TP-6901 3/16a

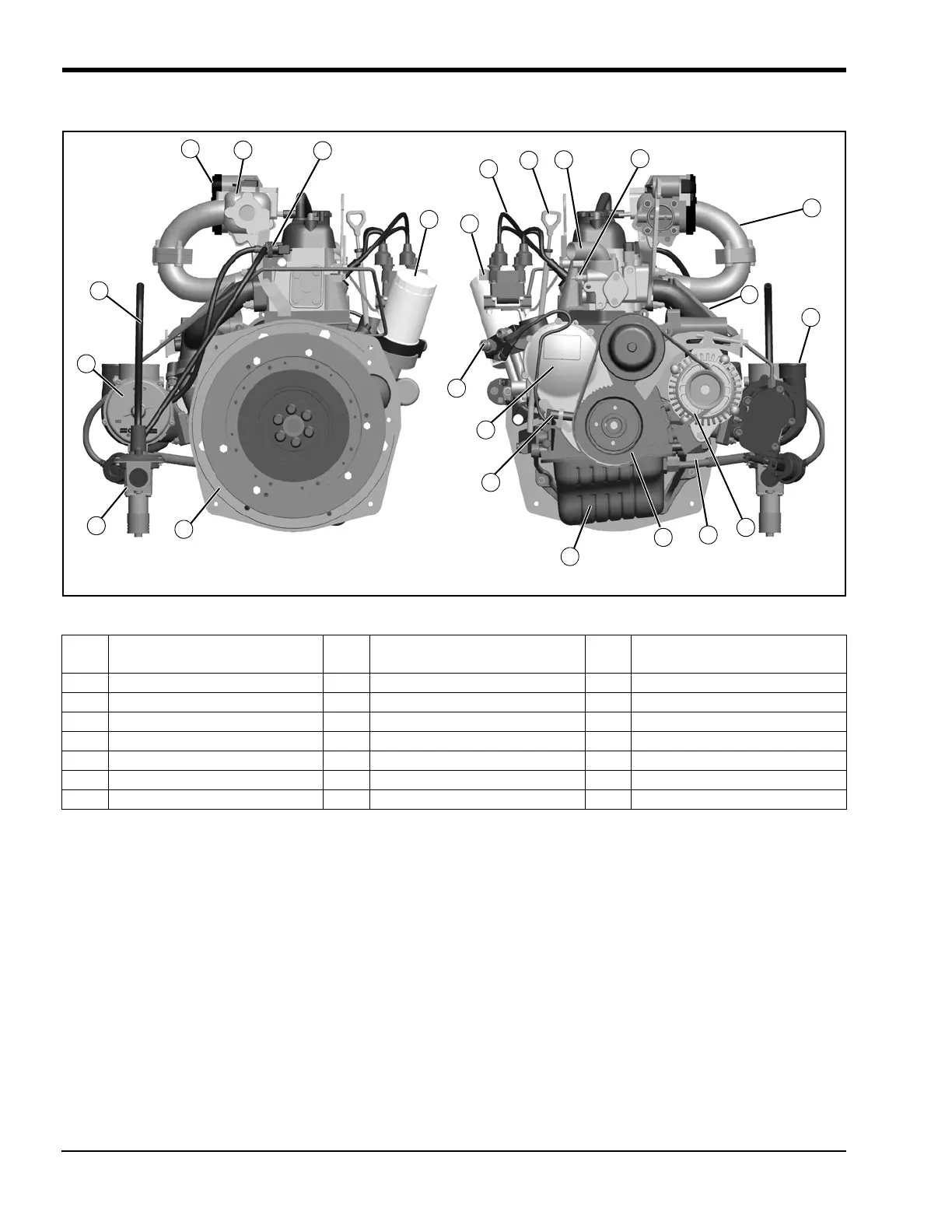

3.4 MODEL KG2204T FRONT AND REAR VIEWS
Figure 3-4
1 Throttle Body 9
Coolant Temperature
Sensor
17 Crankshaft Position Sensor
2 Upper Intake Manifold 10 Lower Intake Manifold 18 Timing Cover
3 Fuel Control Valve 11 Turbo Oil Feed Line 19 Oil Pressure Sensor
4 Oil Filter 12 Turbocharger 20 Flywheel
5 Coil 13 Drive Belt 21 Dual Fuel Regulator (DFR)
6 Spark Plug Wires 14 Turbo Oil Return Line 22 Air-Fuel Mixer
7 Oil Dipstick 15 Vibration Dampener 23 DFR Breather Hose
8 Upper Coolant Outlet 16 Oil Pan
idGM88249
2
4
1
6
11
12
13
14
15
16
17
18
19
20
21
23
3
5
7
8
9
10
22
