Kohler KT715 Service Manual

Fuel System
3532 690 03 Rev. E KohlerEngines.com

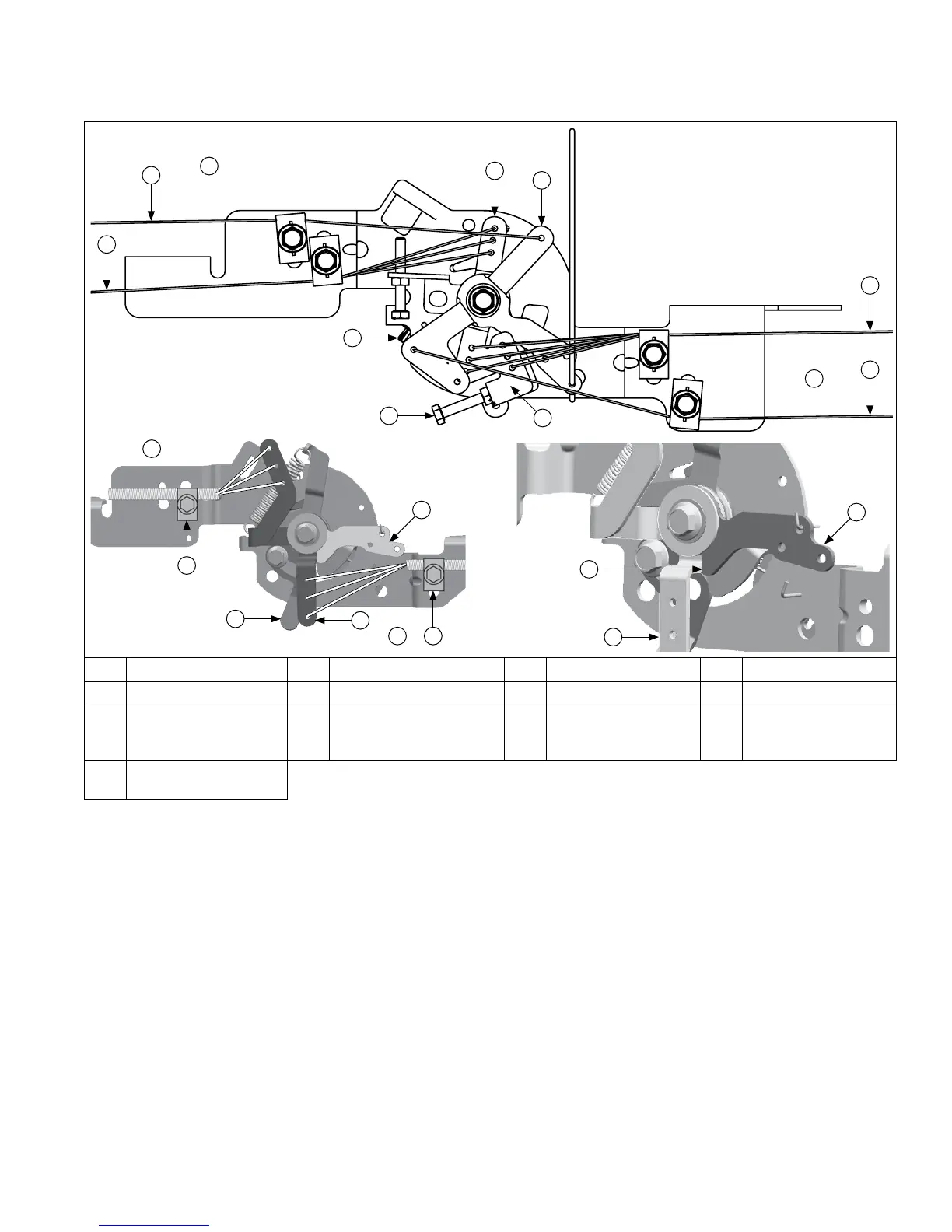

Governor/Throttle Control Connections
M
C
E
I
H
I
H
A
F
J
K
B
B
E
D
C
F
A
E
G
C
A Left Side Pull B Cable Clamp C Speed Control Lever D Speed Setting Lever
E Choke Lever F Right Side Pull G Contact Point H Choke Control Cable
I Throttle Control Cable J
Dual Control High Speed
Lever Stop Screw (Do
Not Remove)
K
High Speed Adjusting
Screw
L Choke Linkage
M
High Speed Control
Lever

Kohler KT715 Specifications

General

Fuel System	Carburetor
Cooling System	Air-cooled
Oil Capacity	1.5 quarts (1.4 liters)
Ignition System	Electronic
Starter Type	Electric
Dry Weight	31 kg (68 lbs)
