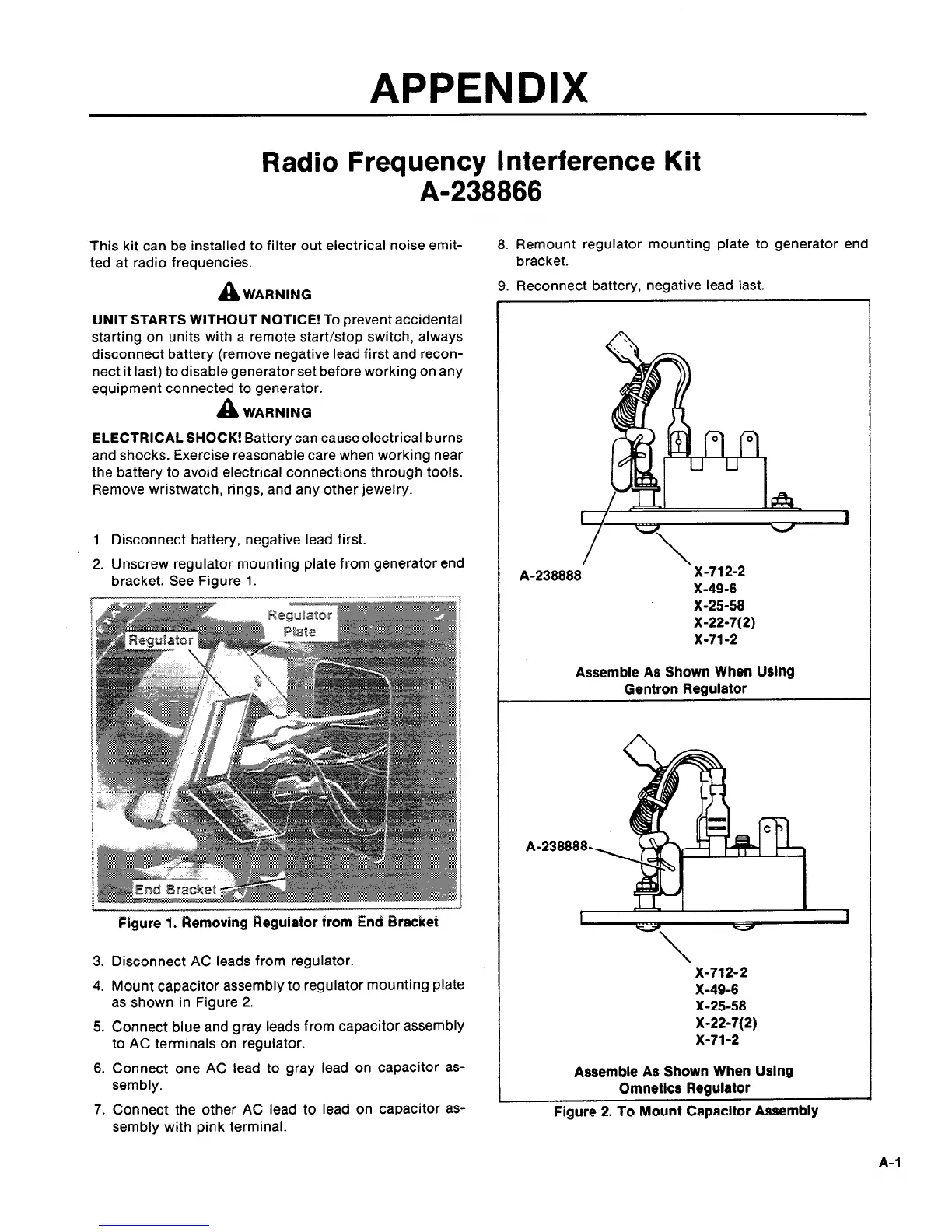

APPENDIX
Radio Frequent
A-2:
This kit can be installed to filter out electrical noise emit-
ted at radio frequencies.
A
WARNING
UNIT STARTS WITHOUT NOTICE! To prevent accidental
starting on units with a remote start/stop switch, always
disc,onnect battery (remove negative lead first and recon-
nect it last) to disable generator set before working on any
equipment connected to generator.
A
WARNING
ELECTRICAL SHOCK! Battery can cause electrical burns
and shocks. Exercise reasonable care when working near
the battery to avoid electrical connections through tools.
Remove wristwatch, rings, and any other jewelry.
1. Disconnect battery, negative lead first.
2. Unscrew regulator mounting plate from generator end
bracket. See Figure 1.
Figure 1. Removing Reguiatar from End Bracket
3. Disconnect AC leads from regulator.
4. Mount capacitor assembly to regulator mounting plate
as shown in Figure 2.
5. Connect blue and gray leads from capacitor assembly
to AC terminals on regulator.
6. Connect one AC lead to gray lead on capacitor as-
sem bly.
7. Connect the other AC lead to lead on capacitor as-
sembly with pink terminal.
nterference Kit
366
8. Remount regulator mounting plate to generator end
bracket.
9. Reconnect battery, negative lead last.
A-238888
X-49-6
X-25-58
X-22-7( 2)
X-71 -2
Assemble As Shown When Using
Gentron Regulator
X-71 2-2
X-49-6
X-25-58
X-22-7( 2)
X-71 -2
Assemble As Shown When Using
Omnetics Regulator
Figure 2. To Mount Capacitor Assembly
A-l
