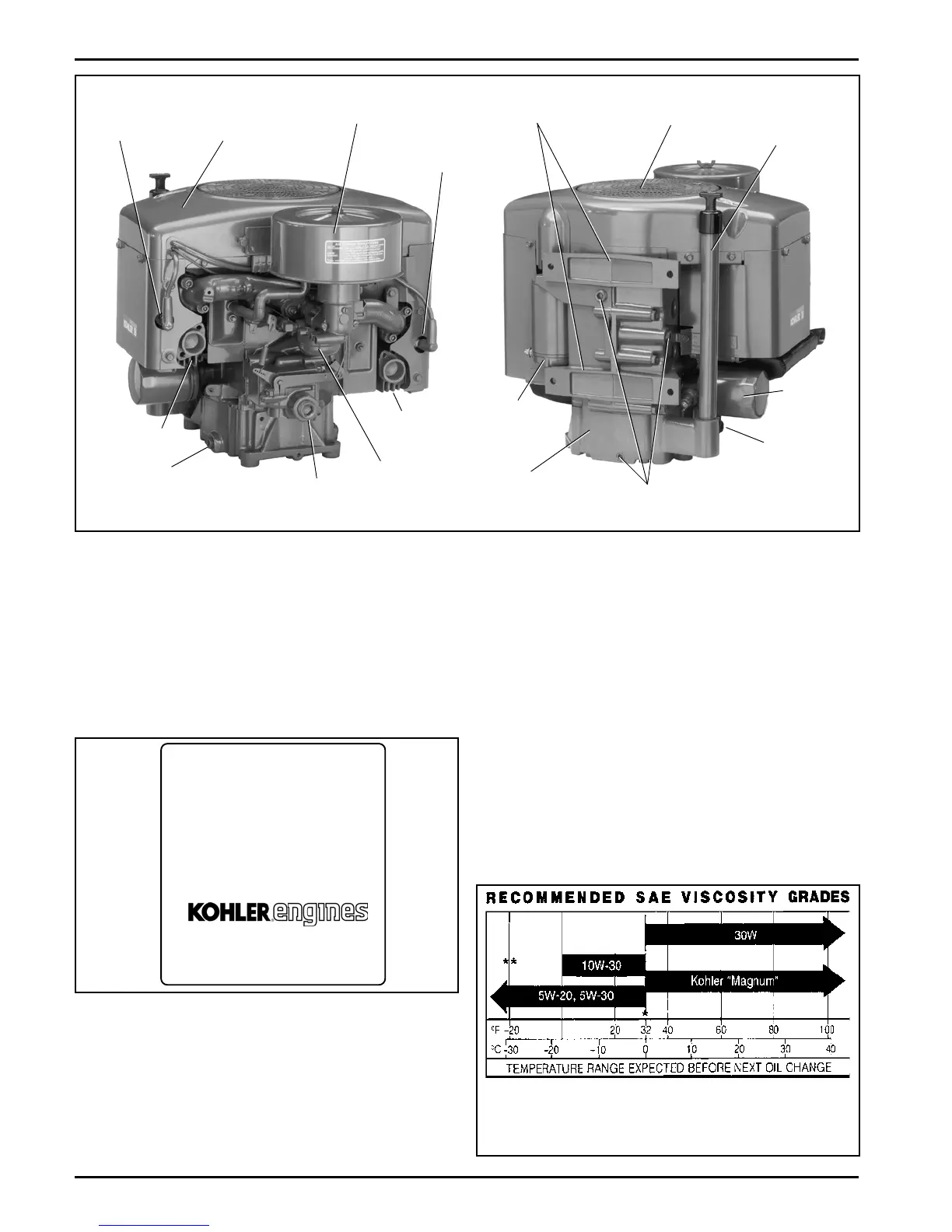

Figure 1. Typical Magnum Vertical Shaft Engine.
Engine Identification Numbers
When ordering parts, or in any communication involving
an engine, always give the Model, Specification, and
Serial Numbers of the engine.
The engine identification numbers appear on a decal
(or decals) affixed to the engine shrouding. Include
letter suffixes, if there are any.
Oil Recommendations
Using the proper type and weight crankcase oil is
extremely important as is checking oil daily and
changing oil and filter regularly. Failure to use the
correct oil or using dirty oil causes premature engine
wear and failure.
Before each start, make sure the crankcase is filled
with proper type and quantity of oil.
Oil Type
Use high-quality detergent oil of API (American
Petroleum Institute) service class SG, SH, SJ or
higher. Select the viscosity based on the air
temperature at the time of operation as shown in the
table.
Figure 2. Engine Identification Label.
Record your engine identification numbers on the
identification label illustration (Figure 2) for future
reference.
Figure 3. Viscosity Grades Table.
**
*
*Use of synthetic oil having 5W-20 or 5W-30 rating is
acceptable, up to 4°C (40°F).
**Synthetic oils will provide better starting in extreme
cold below -23°C (-10°F).
Spark Plug
Blower
Housing
Air Cleaner
Spark Plug
Cooling
Fins
Carburetor
DO NOT remove
this plugs.
Oil
Drain
Cooling
Fins
DO NOT use these
feet to mount the
engine.
Air Intake
Screen
Oil Fill/
Dipstick
Oil
Filter
Oil
Drain
DO NOT remove
these plugs.
Oil Pan
Electric
Starter
KOHLER CO. KOHLER, WI USA
MODEL NO.
SPEC. NO.
DISPL (CC)
SERIAL NO.
REFER TO OWNER'S MANUAL FOR
SAFETY, MAINTENANCE SPECS
AND ADJUSTMENTS. FOR SALES
AND SERVICE IN US/CANADA CALL:
1-800-544-2444
EXPORT OR
REPLACEMENT ENGINE
To Next Page
