Kohler MAGNUM M18

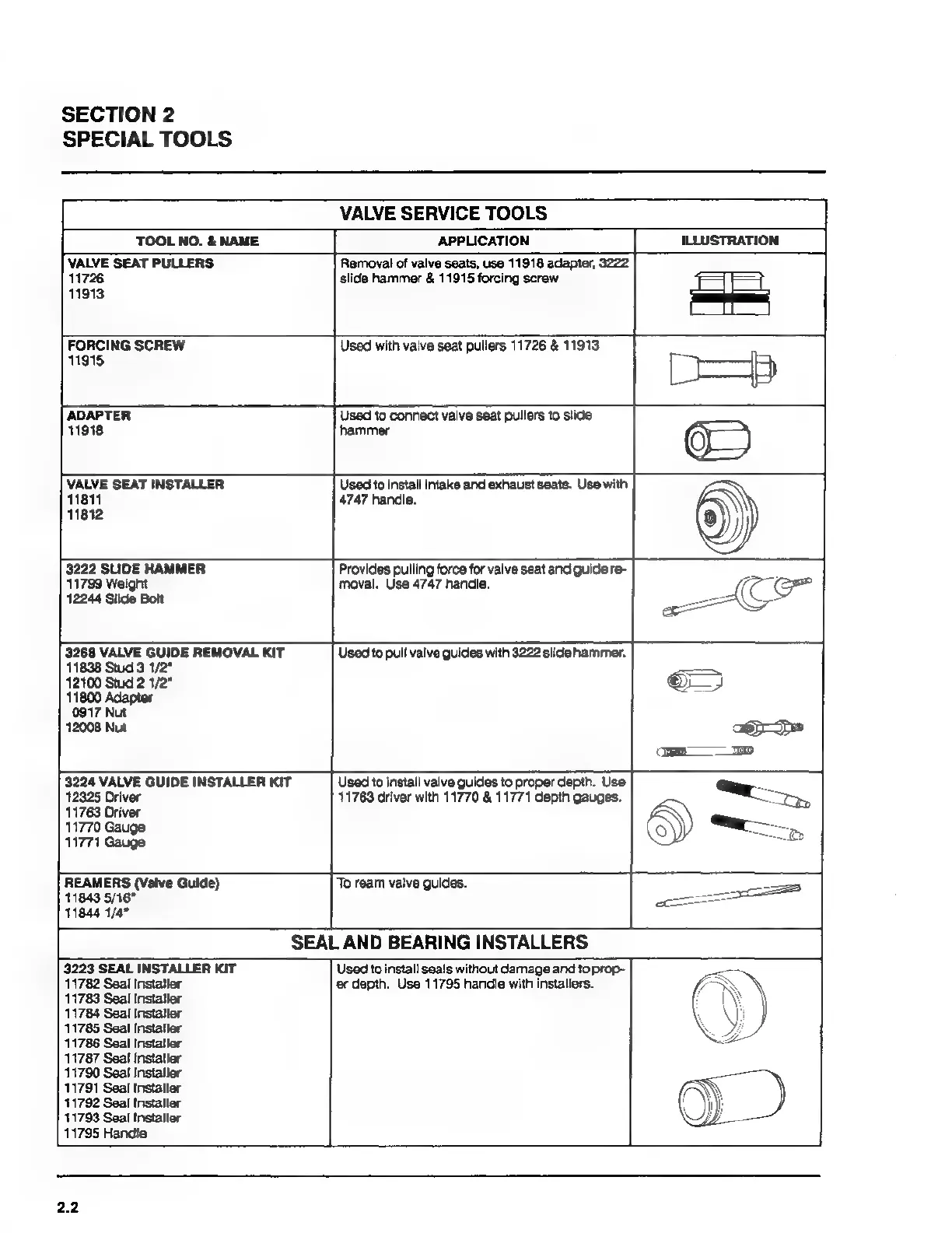

SECTION 2
SPECIAL TOOLS
VALVE SERVICE TOOLS
TOOL NO. & NAME APPLICATION
ILLUSTRATION
VALVE SEAT PULLERS
11726
11913
Removal of valve seats, use 11918 adapter, 3222
slide hammer & 11915 forcing screw
FORCING SCREW
11915
Used with valve seat pullers 11726 & 11913
ADAPTER
11918
Used to connect valve seat pullers to slide
hammer
VALVE SEAT INSTALLER
Used to install intake and exhaust seats. Use with
11838 Stud 3 1/2"
12100 Stud 2 1/2*
11800 Adapter
0917 Nut
12008 Nut
11811 4747 handle.
11812
3222 SLIDE HAMMER Provides pulling force for valve seat and guide re-
11799 Weight moval. Use 4747 handle.
12244 Slide Bolt
3268 VALVE GUIDE REMOVAL KIT
Used to pull valve guides with 3222 slide hammer.
12325 Driver
11763 Driver
11770 Gauge
11771 Gauge
3224 VALVE GUIDE INSTALLER KIT
Used to install valve guides to proper depth. Use
11763 driver with 11770 & 11771 depth gauges.
REAMERS (Valve Gulde)
11843 5/16"
11844 1/4*
To ream valve guidos.
SEAL AND BEARING INSTALLERS
3223 SEAL INSTALLER KIT
11782 Seal Installer
11783 Seal Installer
11784 Seal Installer
11785 Seal Installer
11788 Seal Installer
11787 Seal Installer
11790 Seal Installer
11791 Seal Installer
11792 Seal Installer
11793 Seal Installer
11795 Handie
Used to install seals without damage and to prop-
er depth. Use 11795 handle with installers.
2.2
