Kohler MAGNUM M18

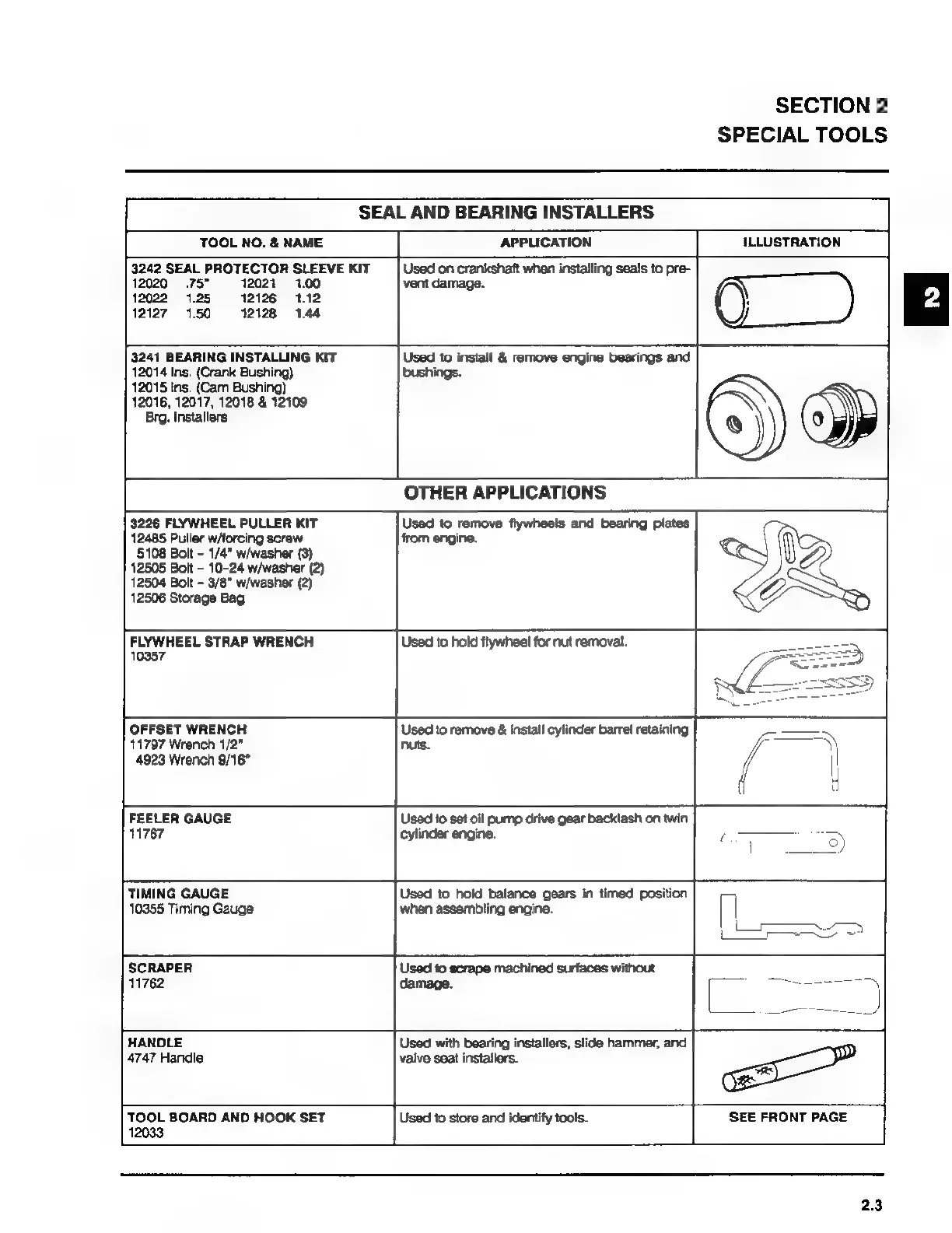

SECTION 2
SPECIAL TOOLS
=
SEAL AND BEARING INSTALLERS
TOOL NO. & NAME
APPLICATION
ILLUSTRATION
12020 75" 12021 1.00
12022 125 12126 1.12
12127 1.50 12128 1.44
3242 SEAL PROTECTOR SLEEVE KIT
Used on crankshaft when installing seals to pre-
vent damage.
3241 BEARING INSTALLING KIT
12014 Ins. (Crank Bushing)
12015 Ins. (Cam Bushing)
12016, 12017, 12018 & 12109
Brg. Installers
Used to install & remove engine bearings and
bushings.
OTHER APPLICATIONS
3226 FLYWHEEL PULLER KIT
12485 Puller w/forcing screw
5108 Bolt - 1/4” w/washer (3)
12505 Bolt - 10-24 w/washer (2)
12504 Bolt - 3/8" w/washer (2)
12506 Storage Bag
FLYWHEEL STRAP WRENCH
10357
OFFSET WRENCH
11797 Wrench 1/2"
4923 Wrench 9/16"
Used to remove flywheels and bearing plates
from engine.
Used to hold flywheel for nut removal.
Used to remove & install cylinder barrel retaining
nuts.
FEELER GAUGE
Used to set oil pump drive gear backlash on twin
12033
11767 cylinder engine.
TIMING GAUGE Used to hold balance gears in timed position
10355 Timing Gauge when assembling engine. [|
L3 —— 2
SCRAPER Used to scrape machined surfaces without
11762
damage.
——
—-----^
apes)
HANDLE Used with bearing installers, slide hammer, and 3
4747
Handle
valve
seat
installers.
mee
(же
TOOL BOARD AND HOOK SET Used to store and identify tools. SEE FRONT PAGE 1
23
