Kohler MAGNUM M18

SECTION 8
ELECTRICAL SYSTEM AND COMPONENTS
Grease
Grease
Grease
Thrust washer
Engine oil

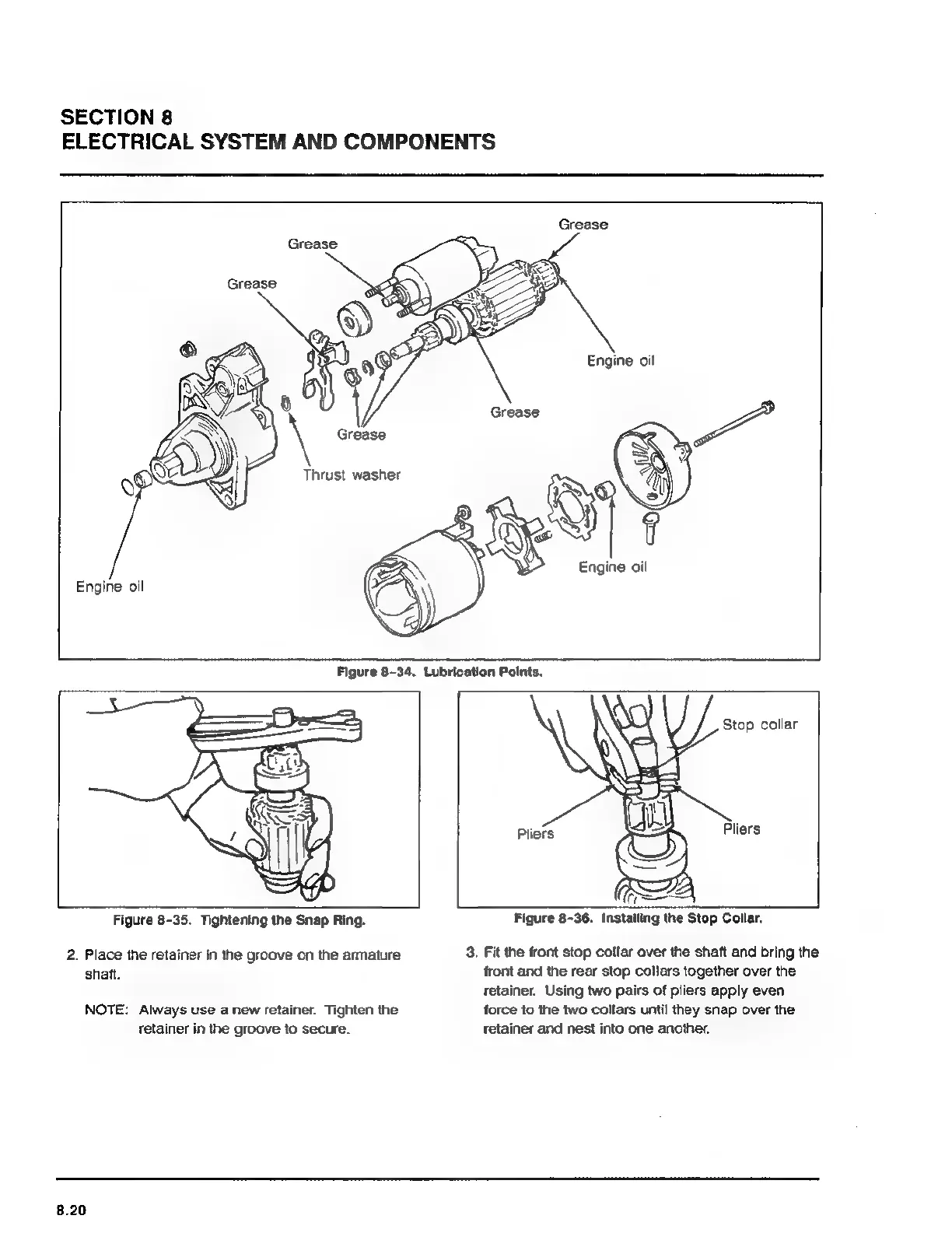

Figure 8-34. Lubrication Points.
Grease
Engine oil
Engine oil
Stop collar
Pliers
Pliers
Figure 8-35. Tightening the Snap Ring.
2. Place the retainer in the groove on the armature
shaft.
NOTE: Always use a new retainer. Tighten the
retainer in the groove to secure.
8.20
Figure 8-36. Installing the Stop Collar.
‚ Fit the front stop collar over the shaft and bring the
front and the rear stop collars together over the
retainer. Using two pairs of pliers apply even
force to the two collars until they snap over the
retainer and nest into one another.
