Kohler MAGNUM M18

SECTION 8
ELECTRICAL SYSTEM AND COMPONENTS
Plate
~A

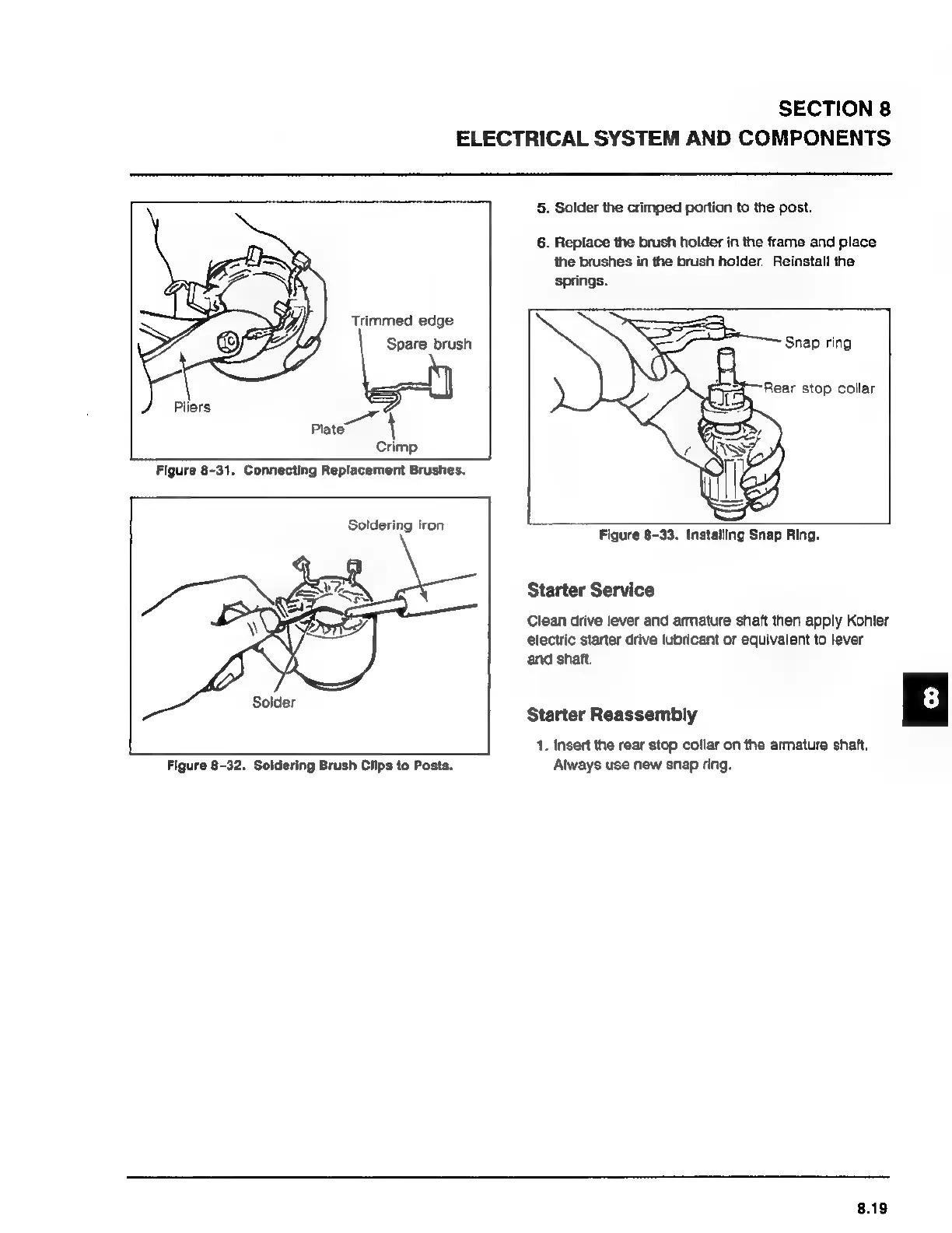

5. Solder the crimped portion to the post.
6. Replace the brush holder in the frame and place
the brushes in the brush holder. Reinstall the
springs.
Trimmed edge
Spare brush
Crimp
Figure 8-31. Connecting Replacement Brushes.
Solder
Р Я
Soldering iron Figure 8-33. Installing Snap Ring.
Starter Service
Clean drive lever and armature shaft then apply Kohler
electric starter drive lubricant or equivalent to lever
and shaft.
Starter Reassembly EH
1. Insert the rear stop collar on the armature shaft.
Figure 8-32. Soldering Brush Cllps to Posts. Always use new snap ring.
8.19
