+1mm

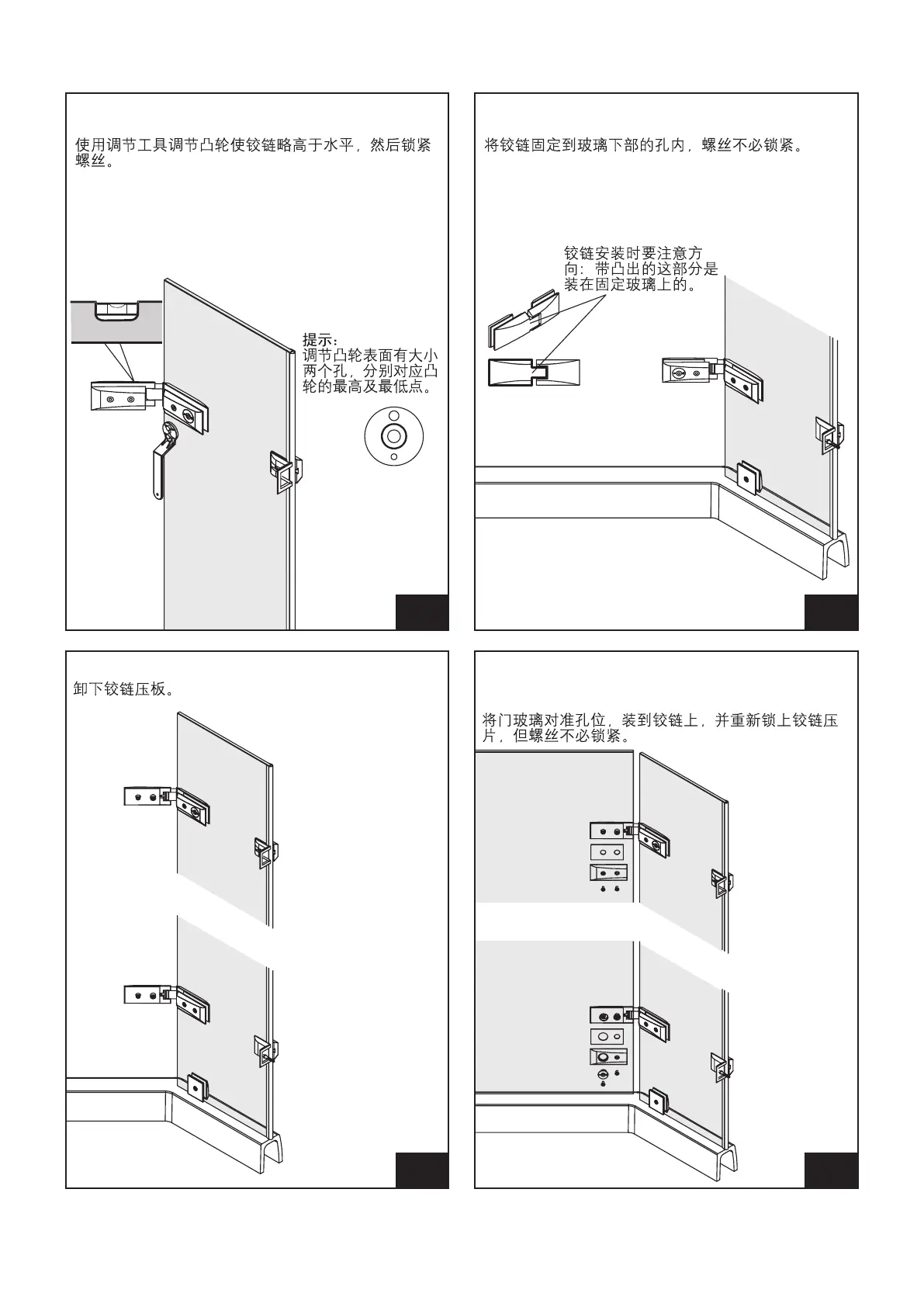

Align the cam with tools to up the hinge to level, then

lock the screws.

Tips: there are two

holes on the surface

of the cam, the

bigger one and the

smaller one

separately mark the

highest and the

lowest point of the

cam.

STEP

-5-

Affix the hinge to the hole on the bottom of the glass,

screws not locked.

STEP

Take down the hinge platen.

STEP

Aim the door glass at the hole location and affix it to

the hinge, and install the hinge platen, crews not

locked.

Be auare of the

direction of the hige:

The upper part should

be fixed to the glass.

1146426-T01-B
