Kohler MEMOIRS - Step 8: Level Glass and Lock Hinges; Step 9: Fix Handle; Step 10: Install Bottom Components

STEP
12

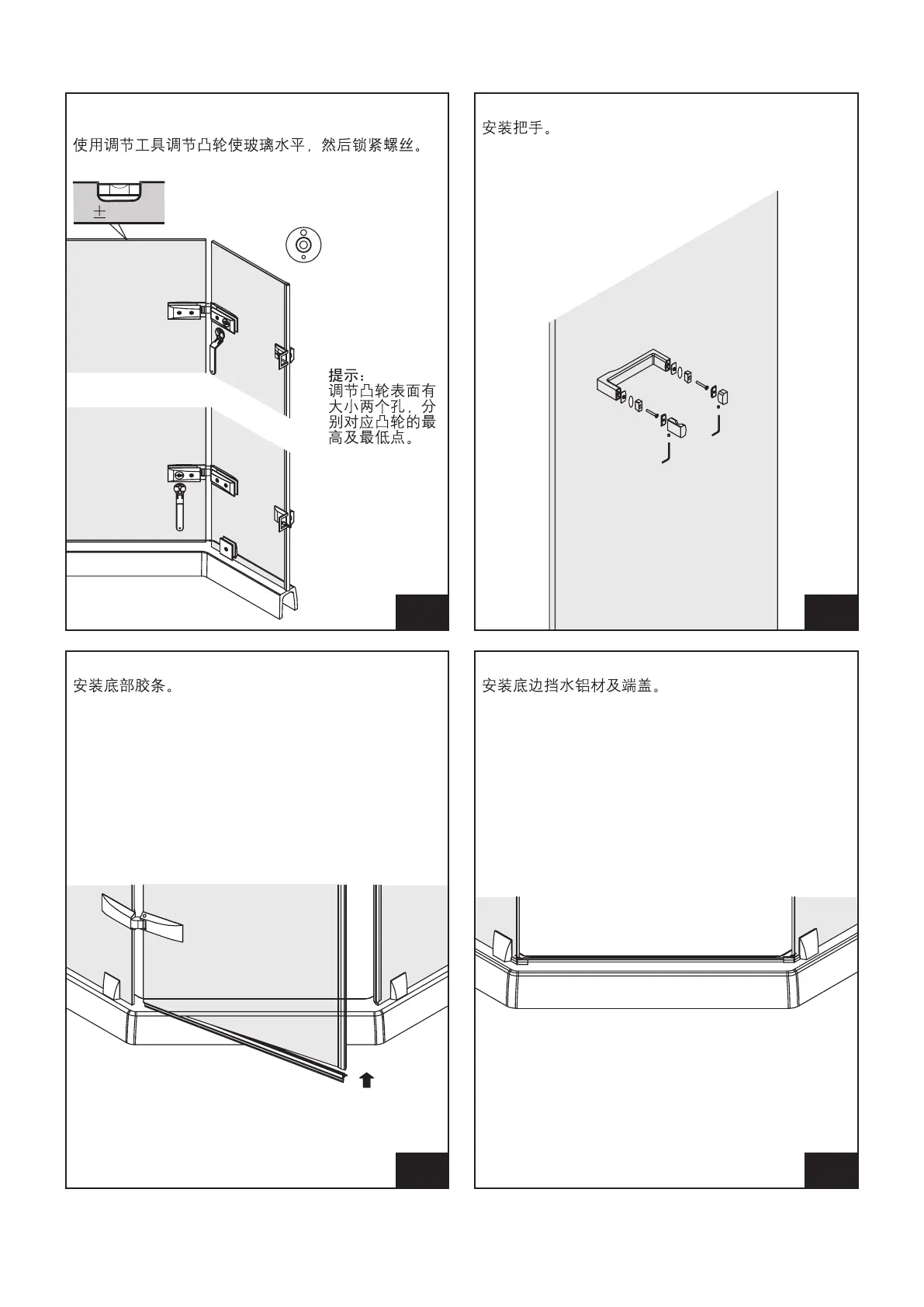

Align the cam with tools to level the glass, then lock
the screws.
Tips: there are
two holes on
the surface of
the cam, the
bigger one and
the smaller one
separately mark
the highest and
the lowest point
of the cam.
0mm
-6-
STEP
13
Fix the handle.
STEP
14
STEP
15
Install bottom frame channel and cap.Fix the bottom gasket.
1146426-T01-B
