STEP
19
-7-
STEP
16

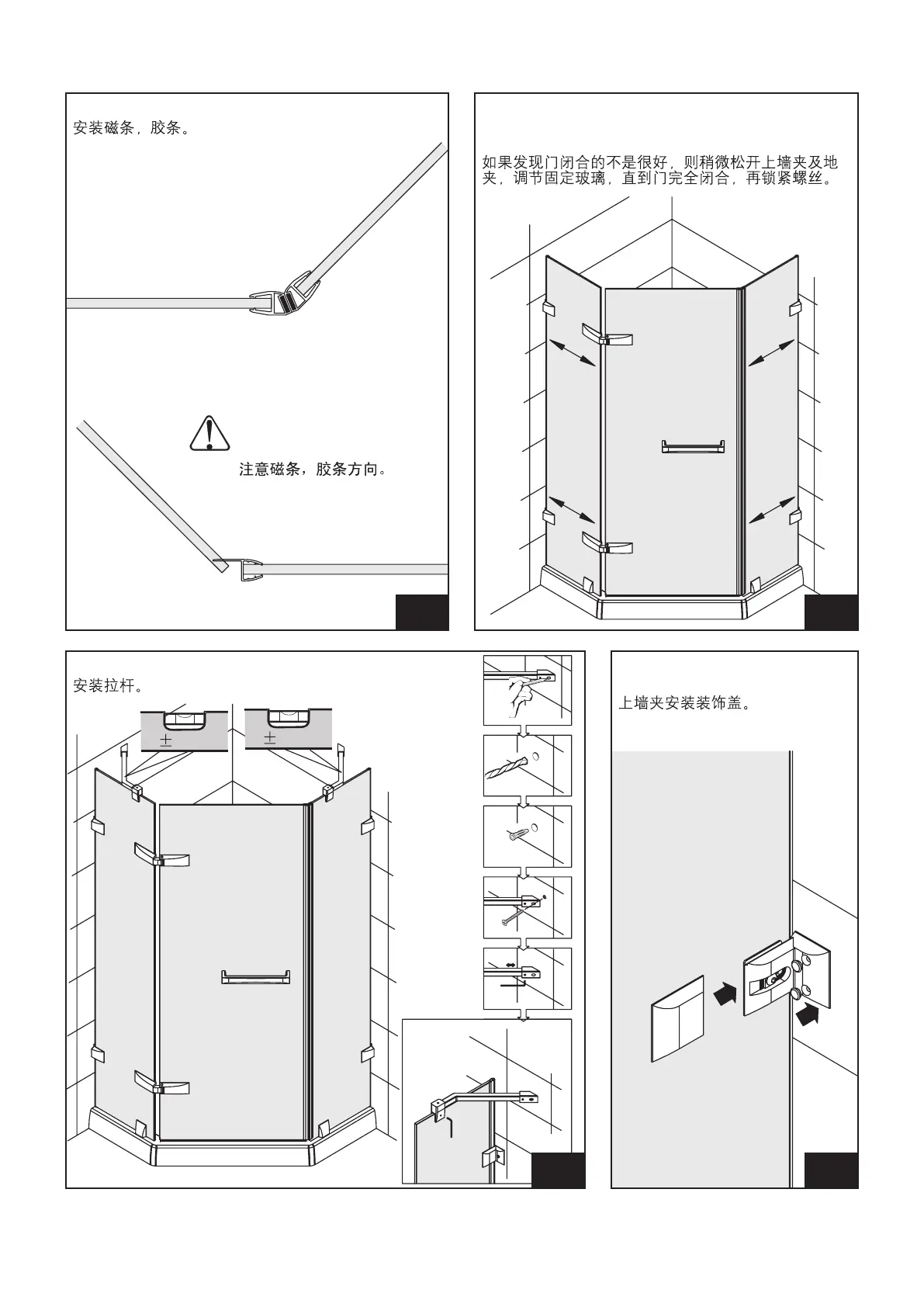

If the door opens unwell, please loosen the wall clip
and the floor clip slightly, adjust the glass until the
door closed completely, then lock the screws.
Fix the magnetic stripe and the gasket.
Be aware of the
direction of the magnetic
stripe and the gasket.
STEP
17
Fix the tierod.
0mm
0mm
STEP
18
Fix the cover caps to the wall
clips.
1146426-T01-B
