TP-6881 7/15112 Section 6 Disassembly/Reassembly
Removing the Mounting Plate and Silencer
29. Remove vibromount bolts to disconnect the
mounting plate from the engine.
Note: Do not remove the vibromounts unless the
vibromounts require servicing.
Note: Correctly orienting the adapter plate to the
engine is critical when remounting the engine. If
the adapter plate must be removed, mark the
adapter plate and the engine with a pen for
orientation when remounting.
30. If needed, remove the four adapter plate bolts and
then remove the adapter plate. In most instances
when servicing the engine, removing the adapter
plate is not necessary.
1. Silencer
2. Adapter plate
3. Vibromounts bolts (qty. 4)
4. Mounting plate
TP-6805
2
4
3
1

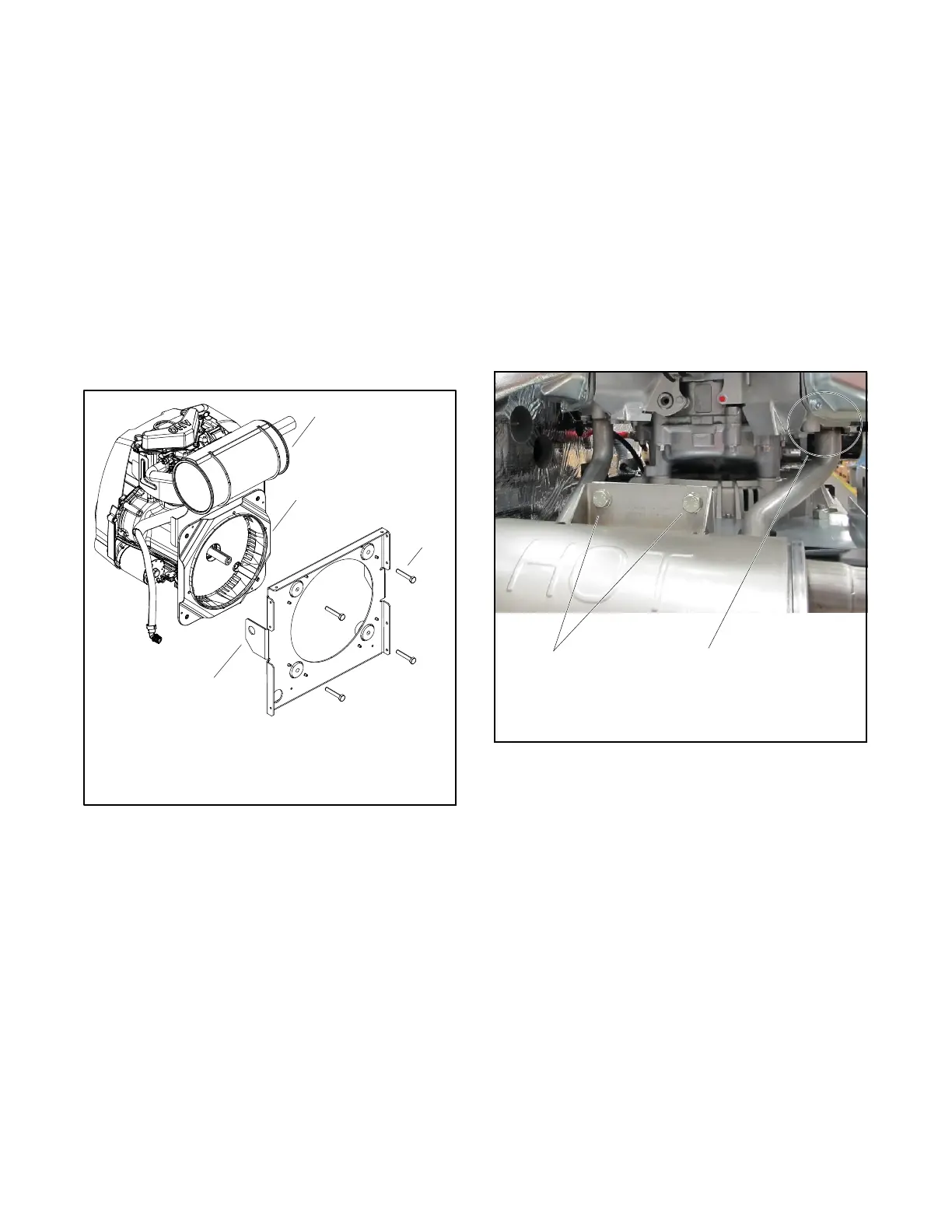

Figure 6-11 Engine and Mounting Plate
Note: Obtain a new exhaust gasket before removing
the silencer.
31. Remove the two bolts on the silencer brackets.
32. Disconnect the silencer from the engine at the two
flange connections and remove the silencer. See
Figure 6-12.
Note: Use new exhaust gaskets when re-installing
the silencer.
Note: Do not remove the exhaust flange bolt
studs unless necessary for servicing.
33. Refer to the engine service manual to disassemble
the engine components.
1. Bracket bolts (qty. 2)
2. Silencer flanges
TP-6805
1
2
Figure 6-12 Silencer Connections
