NOTE 1: Make sure that the wires are connected tightly with the terminals.
6) Put the terminal block cover back at the rear panel of the UPS.

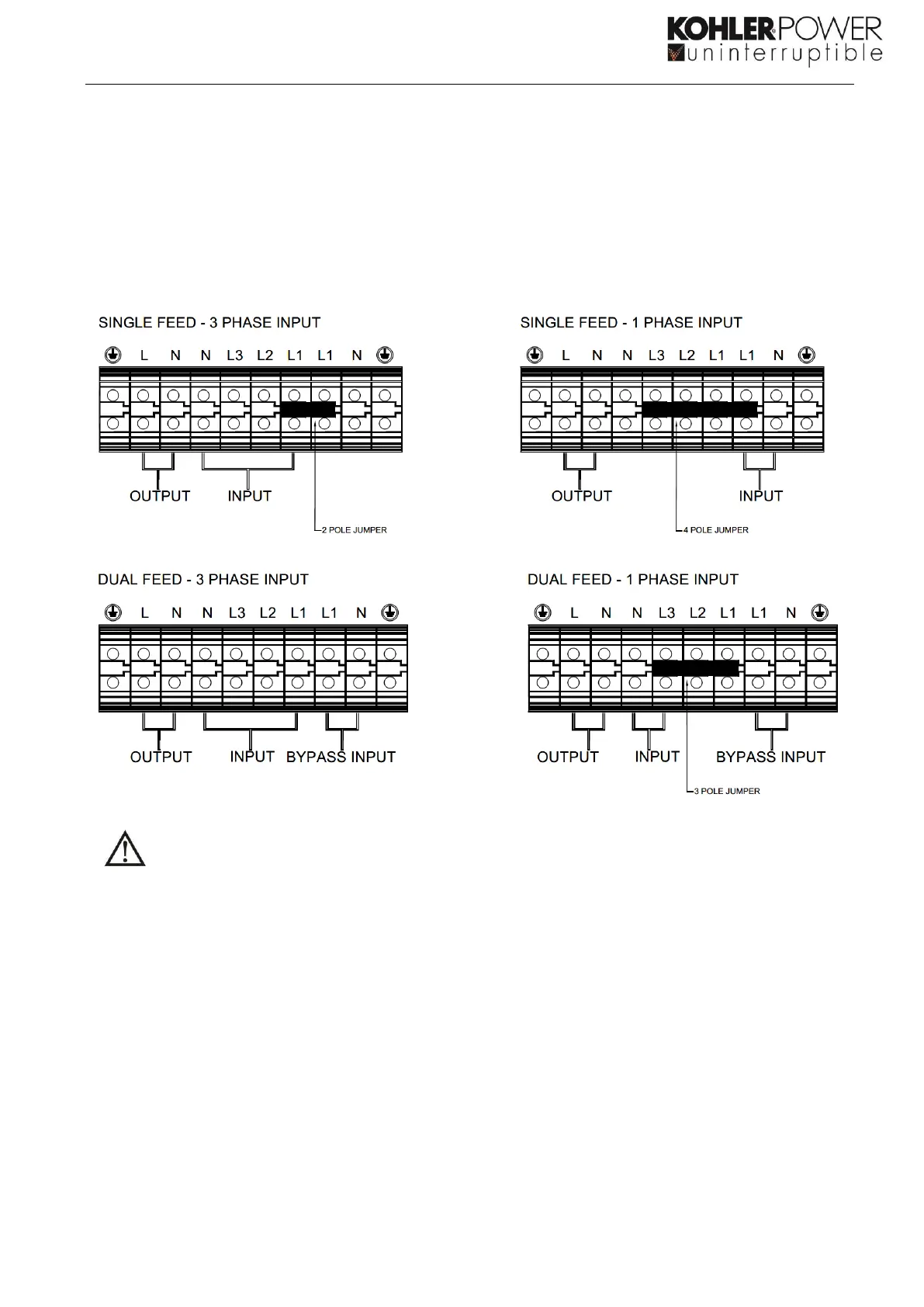

The PowerWAVE 3000/P1 System Can be modified to operate at various configurations of inputs. To
change the configuration, insert or remove the provided jumper bars on the terminal rail as detailed below:
Warning:
● Make sure a DC breaker or other protective device between UPS and the external battery pack is
installed. Switch off the battery breaker before installation.
NOTE: Set the battery pack breaker in “OFF” position and then install the battery pack.
● Pay attention to the rated battery voltage marked on the rear panel. If you want to change the numbers
of the battery pack, please make sure you modify the setting simultaneously. The Connection with
wrong battery voltage may cause permanent damage to the UPS. Make sure the voltage of the battery
pack is correct.
● Pay attention to the polarity marking on external battery terminal block and make sure the correct
battery polarity is connected. Wrong connection may cause permanent damage to the UPS.
● Make sure the protective earth ground wiring is correct. The wire current spec, color, position,
connection and conductance reliability should be checked carefully.
● Make sure the utility input & output cable is sized correctly. The cable current spec, color, position,
connection and conductance reliability should be checked carefully. Make sure the L/N side is correct,
not reverse or short-circuited.
