2-4. UPS Installation for Parallel System
If the UPS is being installed for single operation, you may skip this section.

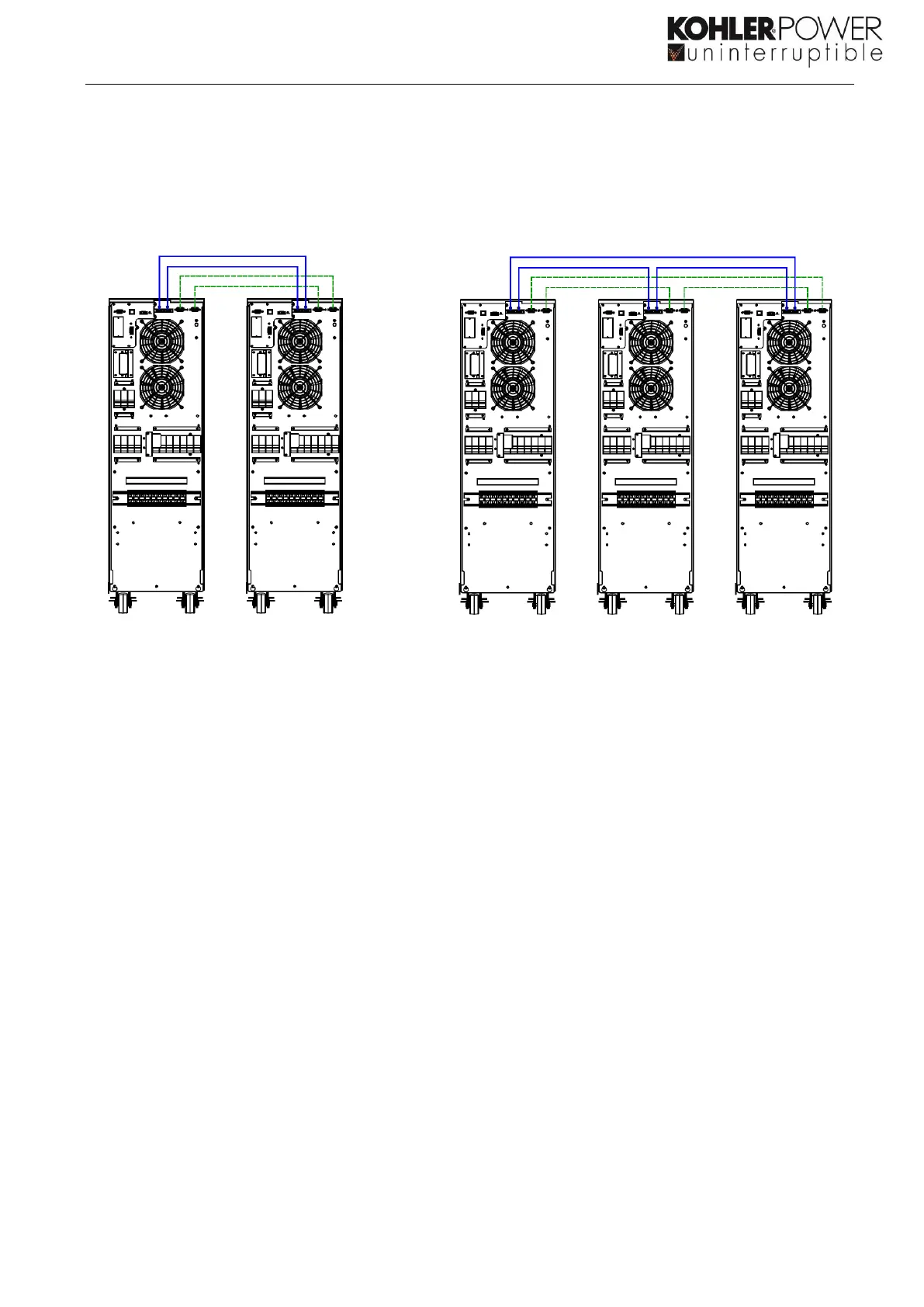

1) Connect the Parallel (dash lines) & Current Share cables as per the following drawings:
2 X SYSTEM IN PARALLEL 3 X SYSTEMS IN PARALLEL
2) Install and cable the UPS according to the section 2-3.
3) Connect the output cables of each UPS to a separate output breaker.
4) Connect the input cables of each UPS to a separate input breaker.
5) Connect all output breakers to a main output breaker. Then this main output breaker will directly
connect to the loads.
6) Common battery packs or independent battery packs can be installed.
7) Refer to the following wiring diagram:
