30
Electrical System
KohlerEngines.com 18 690 06 Rev. --

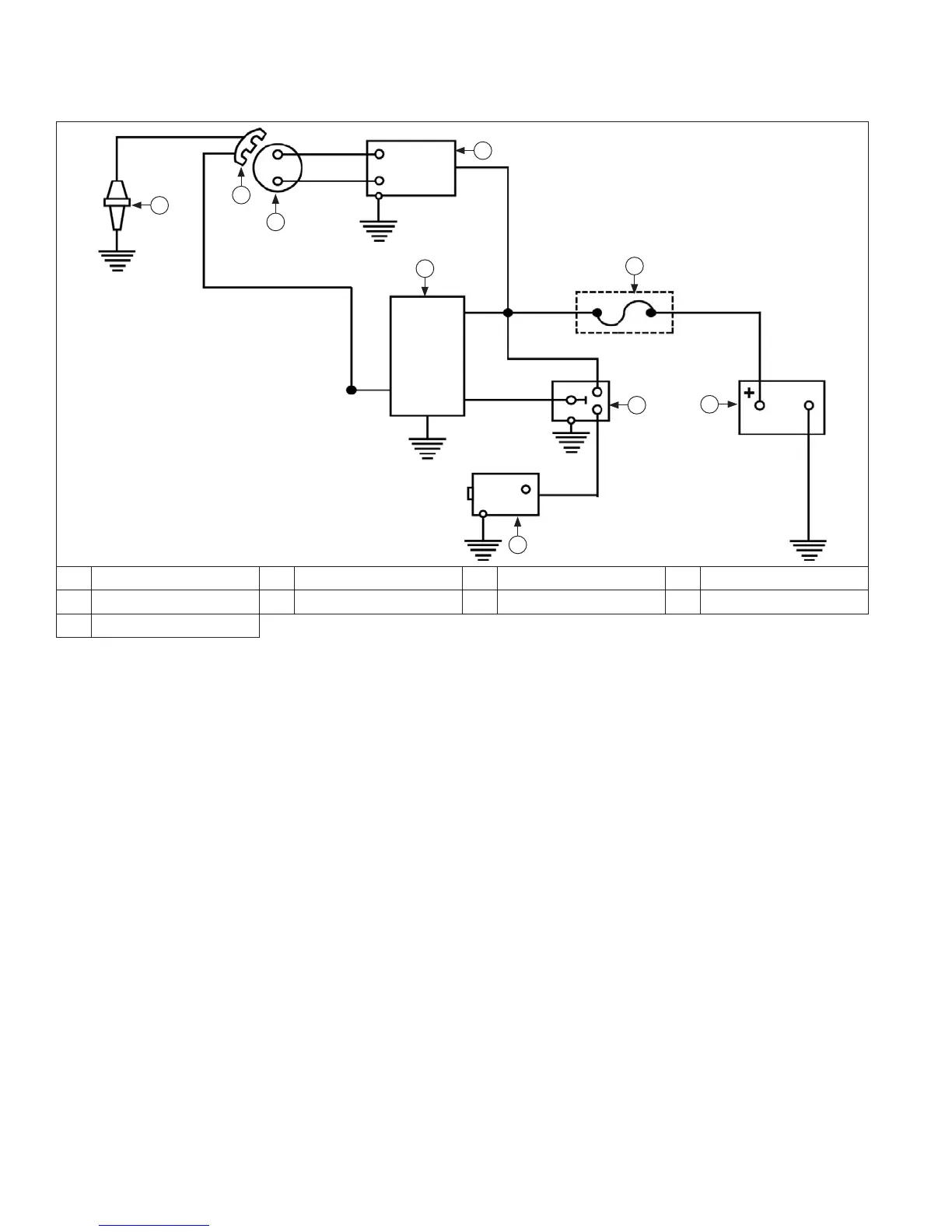

Wiring Diagram-10 Amp Charging System, with Rectifi er-Regulator
A
G
D
E
H
B
C
F
I
A Rectifi er-Regulator B Stator C Ignition Module D Spark Plug
E Ignition Switch F Starter Motor G Relay H Battery Fuse
I 12 Volt Battery
