38
Disassembly/Inspection and Service
KohlerEngines.com 18 690 06 Rev. --
Remove Carburetor
WARNING
Explosive Fuel can cause res and severe
burns.
Do not ll fuel tank while engine is hot or
running.
Gasoline is extremely ammable and its vapors can
explode if ignited. Store gasoline only in approved
containers, in well ventilated, unoccupied buildings,
away from sparks or ames. Spilled fuel could ignite
if it comes in contact with hot parts or sparks from
ignition. Never use gasoline as a cleaning agent.
Slide carburetor off mounting studs while disconnecting
throttle linkage and dampening spring. Remove
carburetor to insulator gasket, insulator, and insulator to
cylinder head gasket.
Remove Electric Starter (if equipped)
Remove screws securing electric starter to crankcase.
Remove Blower Housing/Retractable Starter
1. Remove nuts securing blower housing/retractable
starter assembly.
2. Remove blower housing/retractable starter
assembly.

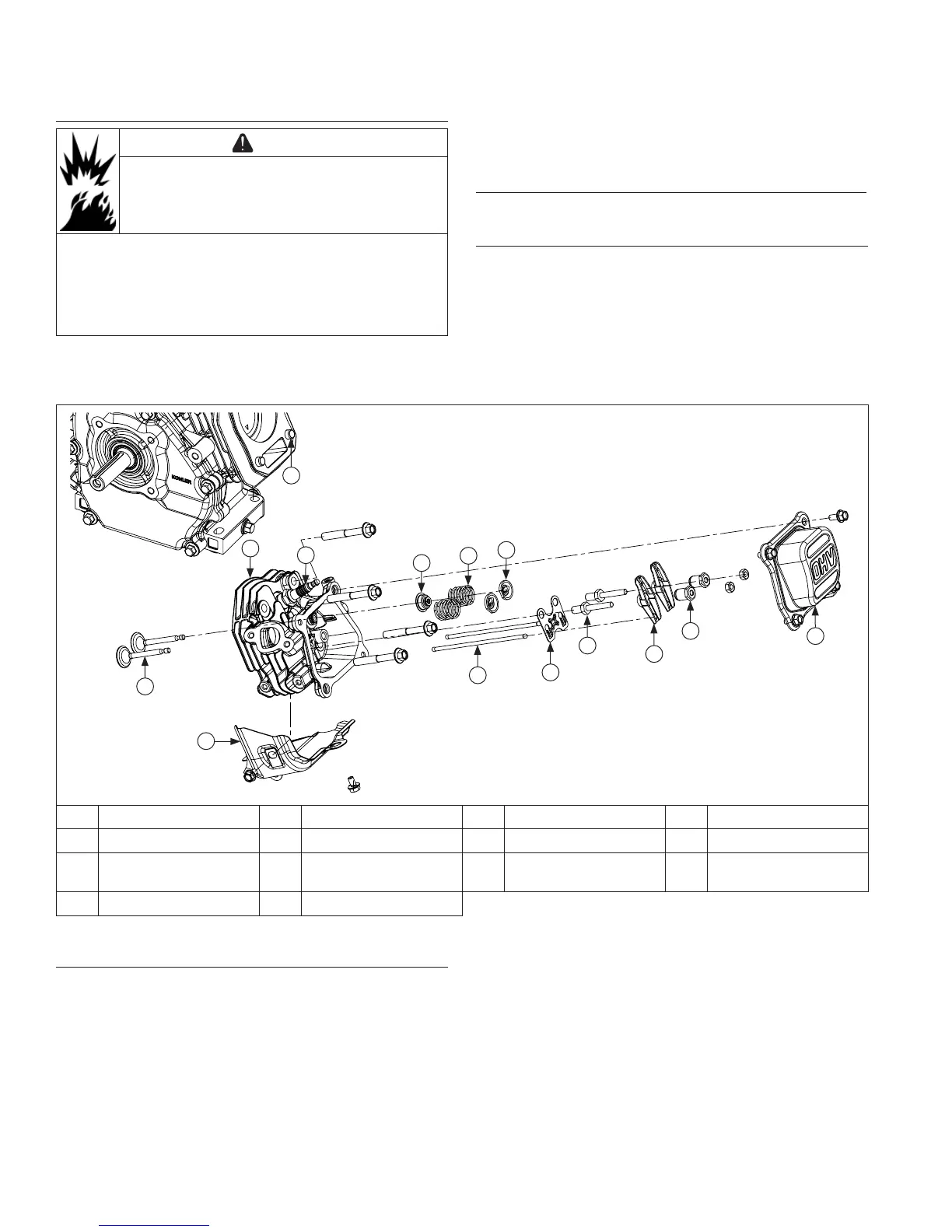

Cylinder Head Components
G
H
I
L
N
A
B
C
D
E
F
K
M
J
A Valve Cover B Adjusting Nut C Rocker Arm D Rocker Arm Stud
E Push Rod Guide F Push Rod G Valve Keeper H Valve Spring
I
Intake Valve Stem
Seal
J Cylinder Shroud K Valve L Spark Plug
M Dowel Pins N Cylinder Head
Remove Valve Cover/Breather, Rocker Arms, Push
Rods and Cylinder Head Assembly
NOTE: Mark location of push rods and any other part
removed that will be reused.
NOTE: Valve cover is sealed to cylinder head using
RTV silicone sealant. When removing valve
cover, use care not to damage gasket surfaces
of cover and cylinder head. To break RTV seal,
hold a block of wood against 1 at face of valve
cover. Strike wood rmly with a mallet. If seal
doesn't break loose after 1 or 2 attempts, repeat
procedure on other side.
1. Remove screws and remove valve cover from
engine. Breather assembly is inside valve cover.
2. Remove screws securing cylinder shroud and
remove cylinder shroud.
3. Loosen and remove rocker arm lock nuts and
adjuster nuts. Remove rocker arms and push rods.
4. Remove spark plug.
5. Remove screws securing cylinder head.
6. Remove cylinder head, dowel pins, and cylinder
head gasket.
