6-4 Installation TP-5631 7/96
AC Load Lead Connections
Make the AC output lead connections in the
compartmentwheretheACcircuitbreakersarelocated.
Route the building distribution panel or transfer switch
leads through the bottom of generator set or flexible
conduit directly attached to the AC circuit breaker box.
Verify that leads and conduit do not interfere with the
operation of the generator set or obstruct the service
areas. Verify that the electrical installation complies
withtheNationalElectricalCode(NEC)andisdonebya
licensedelectrician. Allapplicablelocalandstatecodes
mustbefollowed. SeeWiringDiagrammanualformore
information regarding generator set electrical
connections.
1. Connect L1/L2 black leads to AC circuit breaker
load side.
2. Connect L0 white lead to neutral stud.
3. Connect green lead to equipment ground.
NOTE
Canadian installations only:
Forstandbyserviceconnectoutputof generatorset toa
suitably rated transfer switch in accordance with
Canadian Electrical Code, Part 1.
Top View Generator Set
68
67
FP
FN
70
7N
3
4
32
68
R
67
EQUIP.
GRD.
GRD.
FP
FN
70
7N
3
4
32
View A-A
A
B
A
B
View B-B
FL-277000A-M
1
2
1. Equipment ground 2. Circuit breaker

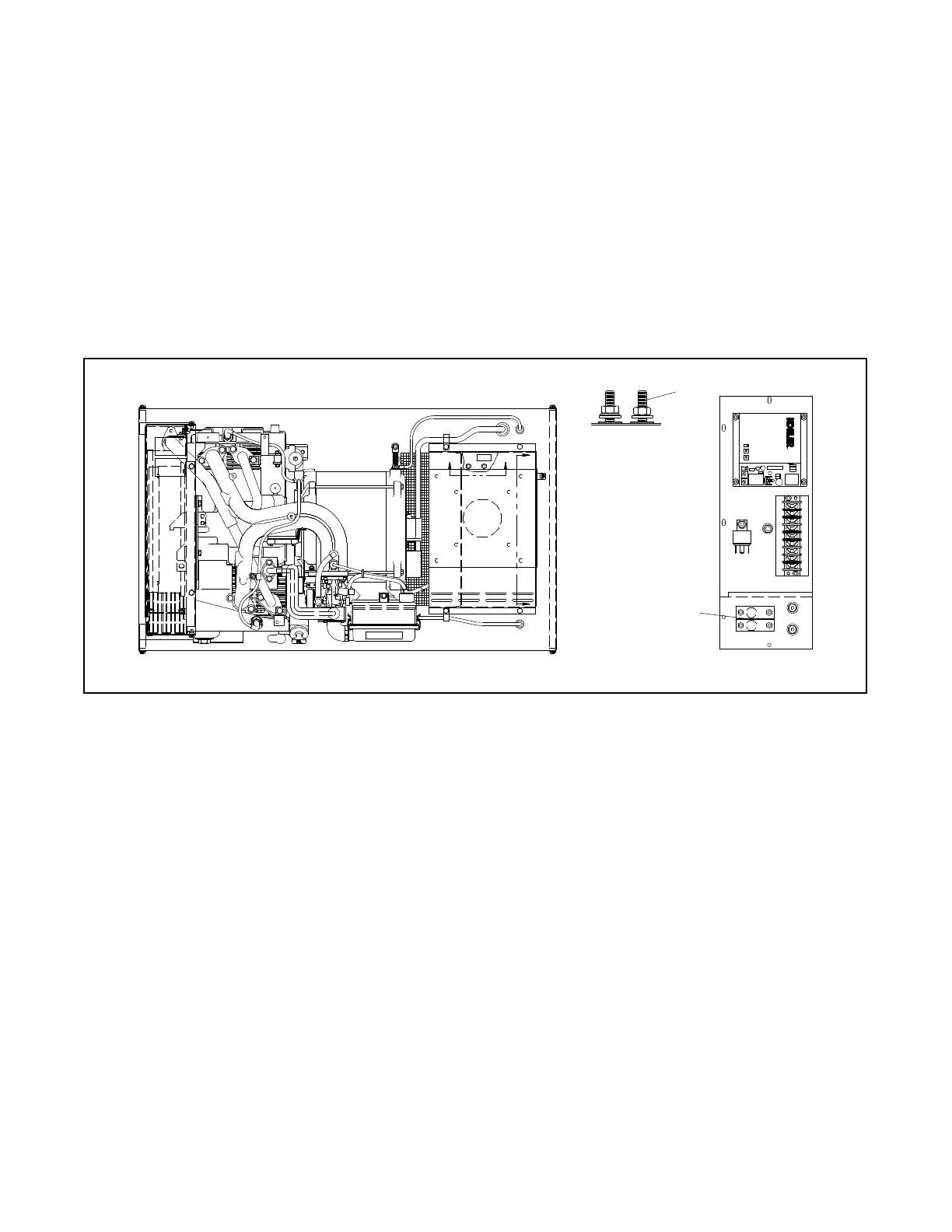

Figure 6-4. Load Lead Connections
