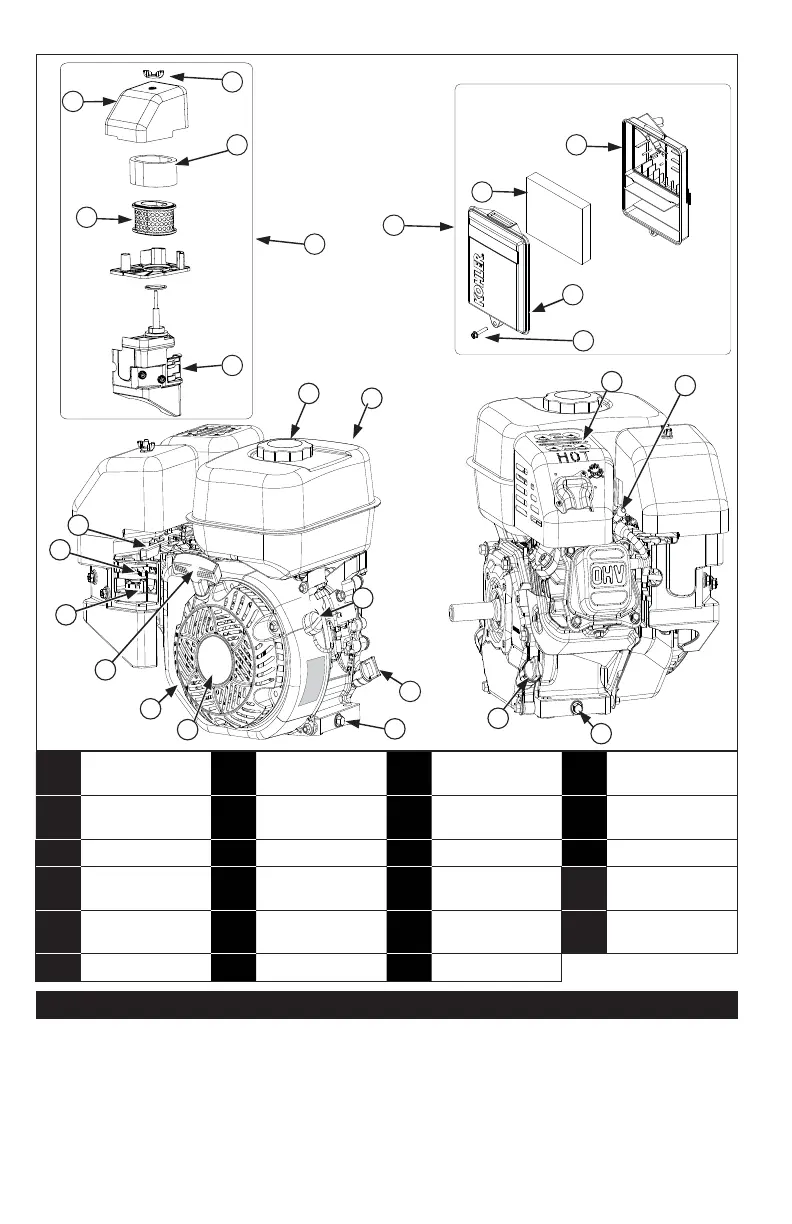

Air Cleaner
Base
B Paper Element C
Air Cleaner
Cover
D Wing Nut
E Precleaner F
Dual-Element
Air Cleaner
G
Low-Profi le Air
Cleaner
H Foam Element
I Screw J Muffl er Shield K Spark Plug L Oil Drain Plug
M Oil Fill Plug N Dipstick O
On/Off Switch
(if equipped)
P
Retractable
Starter
Q Debris Screen R Starter Handle S Fuel Shut-Off T Choke Control
U Throttle Control V Fuel Cap W Fuel Tank
Pre-Start Checklist
1. Check oil level. Add oil if low. Do not overfi ll.
2. Check fuel level. Add fuel if low. Check fuel system components and lines for leaks.
3. Check and clean cooling areas, air intake areas and external surfaces of engine (particularly
after storage).
4. Check that air cleaner components and all shrouds, equipment covers, and guards are in place
and securely fastened.
5. Check spark arrestor (if equipped).
M
J
I
H
C
A
G
W
N
L
K
C
D
B
A
E
F
V
R
S
T
O
U
P
Q
L
