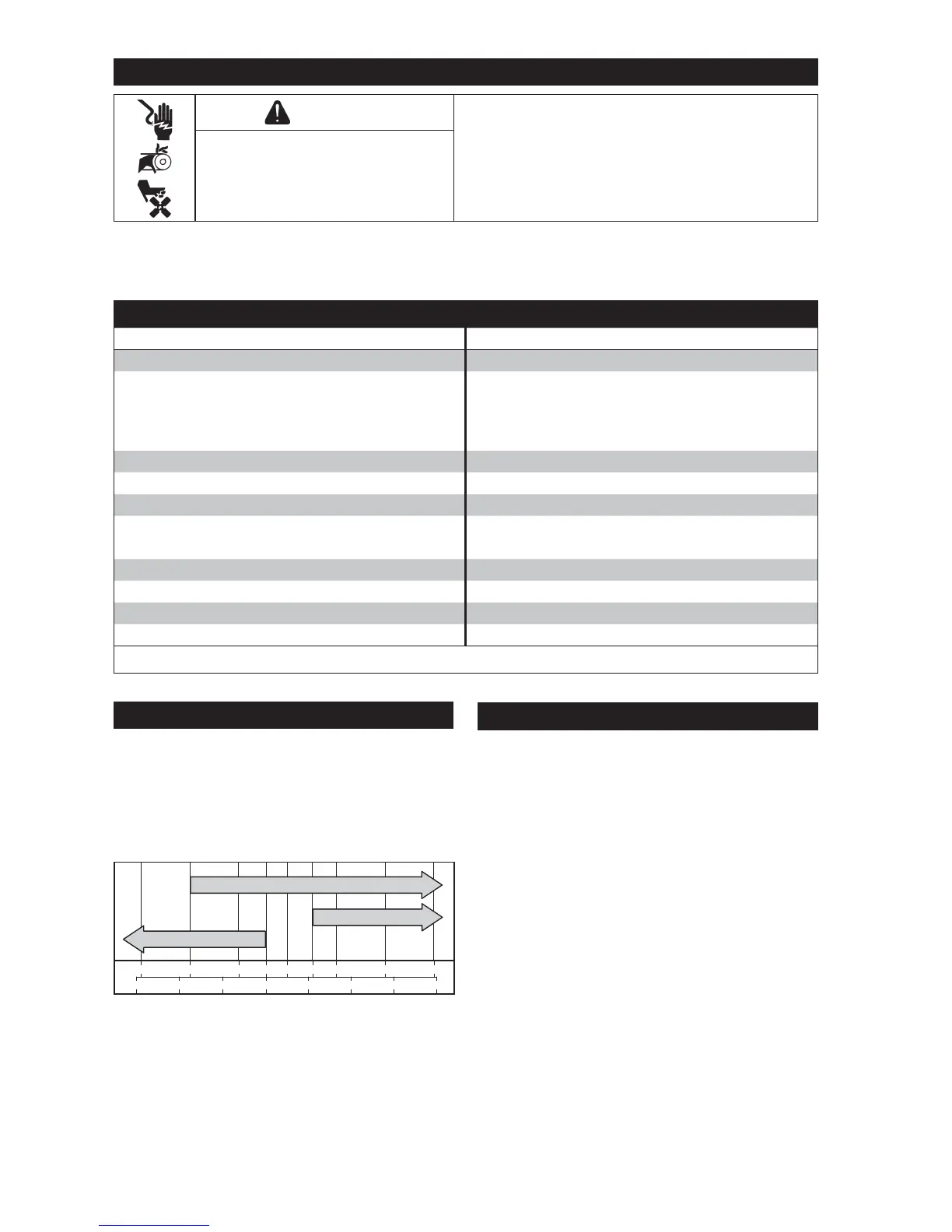

Maintenance Instructions
WARNING
Before working on engine or equipment, disable
engine as follows: 1) Disconnect spark plug
lead(s). 2) Disconnect negative (–) battery cable
from battery.
Accidental Starts can cause
severe injury or death.
Disconnect and ground spark
plug lead(s) before servicing.
Normal maintenance, replacement or repair of emission control devices and systems may be
performed by any repair establishment or individual; however, warranty repairs must be performed
by a Kohler authorized dealer found at KohlerEngines.com or 1-800-544-2444 (U.S. and Canada).
Maintenance Schedule Maintenance Schedule
Engines without Precleaner Engines with Precleaner
Before Every Use Before Every Use
● Check oil level. Add oil if low. Do not overfi ll. ● Check oil level. Add oil if low. Do not overfi ll
● Check air cleaner for dirty, loose, or
damaged parts.
● Check air cleaner for dirty, loose, or
damaged parts.
● Check precleaner for dirty or torn material.
Every 25 Hours or Annually
1
Every 25 Hours or Annually
1
● Replace air cleaner element. ● Service/replace precleaner.
Every 50 Hours or Annually
1
Every 50 Hours or Annually
1
● Replace fuel fi lter (if equipped).
● Replace air cleaner element.
● Replace fuel fi lter (if equipped).
Every 100 Hours or Annually
1
Every 100 Hours or Annually
1
● Clean spark arrestor (if equipped). ● Clean spark arrestor (if equipped).
Every 125 Hours or Annually
1
Every 125 Hours or Annually
1
● Replace spark plug and set gap. ● Replace spark plug and set gap.
1
Perform these procedures more frequently under severe, dusty, dirty conditions.
Oil Recommendations
We recommend use of Kohler oils for best
performance. Other high-quality detergent
oils (including synthetic) of API (American
Petroleum Institute) service class SJ or higher
are acceptable. Select viscosity based on air
temperature at time of operation as shown in
table below.
°F
-20
020324060
50 80 100
°C
-30 -20
-10 0
10 20 30
40
5W-30
10W-30
SAE 30
Check Oil Level
NOTE: To prevent extensive engine wear or
damage, never run engine with oil level
below or above operating range
indicator on dipstick.
Ensure engine is cool. Clean oil fi ll cap/dipstick
areas of any debris.
1. Remove dipstick; wipe oil off .
a. 1/4 turn cap: reinsert dipstick into tube;
press completely down and turn 1/4 turn.
or
b. Threaded cap: reinsert dipstick into
tube; rest cap on tube, do not thread cap
onto tube.
2. Remove dipstick; check oil level. Level
should be at top of indicator on dipstick.
3. If oil is low on indicator, add oil up to top of
indicator mark.
4. Reinstall and secure dipstick.
