KOJA Future Series - Replacement Of Gasket

AIR HANDLING UNIT FUTURE
INSTRUCTIONS FOR OPERATION AND MAINTENANCE
Filter secon FSTF
2017-02-13 V. 2.0 15
Filter cassee sizes / number of cassees
Unit size Width, mm Height, mm 287 x 592 592 x 287 592 x 592 592 x 490
2412 2,550 1,350 8
2415 2,550 1,670 4 8
2418 2,550 190 12
2421 2,550 2,310 4 12
2424 2,550 2,550 16
3015 3,190 1,670 5 10
3018 3,190 1,990 15
3021 3,190 2,310 5 15
3024 3,190 2,550 20
3624 3,790 2,550 24
3627 3,790 2,870 6 24
3630 3,790 3,190 30
The thickness of the mounting frame is 25 ±1 mm.
4.7. Replacement of gasket

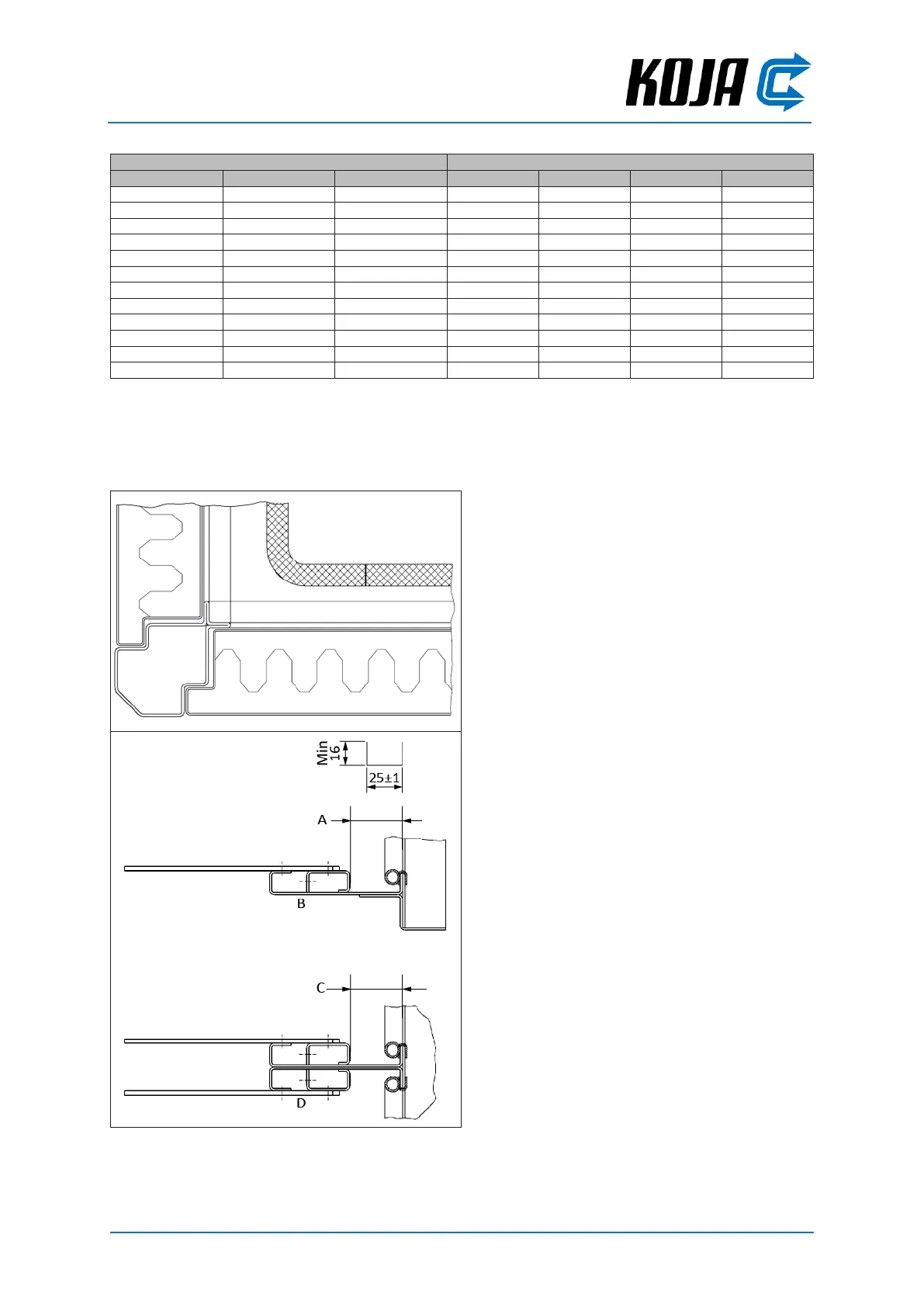

Dimensions of the mounting groove and filter cassette frame
A new gasket is mounted, starting from the middle of
the frame bottom. Press the gasket against the edge
of the plate by hand or carefully with a hammer or
some other tool. Use, for example, a 20-mm pipe to
bend the corners appropriately. Cut the gasket to a
length of about 5 mm too long. Force the ends to-
gether and apply sealant between them.
A. With the clamp closed: 35 ± 1.0
B. Lower frame
C. With the clamp closed: 35 ± 1.0
D. Middle frame
