AIR HANDLING UNIT FUTURE
INSTRUCTIONS FOR OPERATION AND MAINTENANCE
Coil secons
16 V. 2.0 2017-02-13

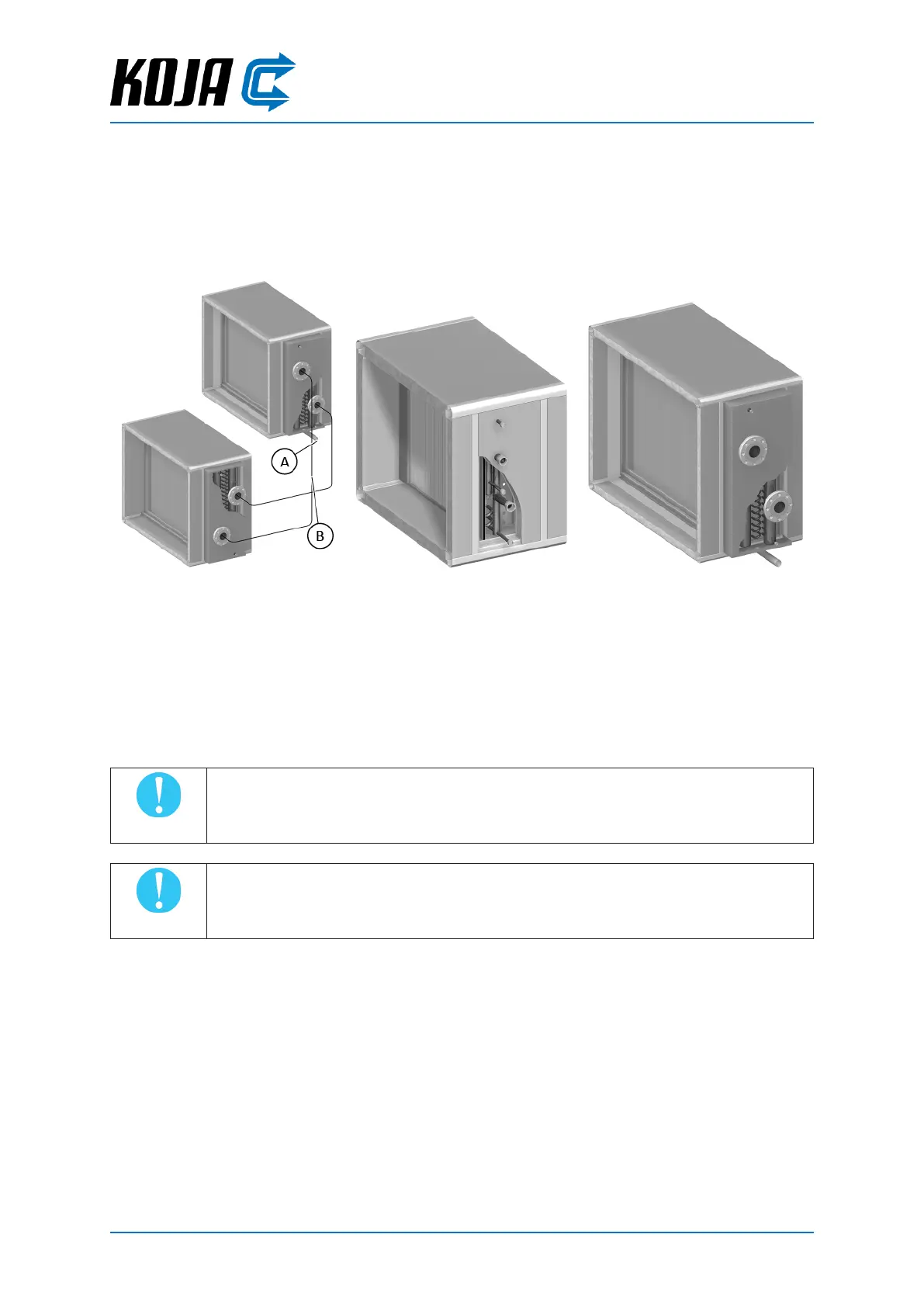

5. COIL SECTIONS
Heat recovery section, FRTG
Heating section, fluid FLTV
Cooling section, fluid FTVJ
Heat recovery section,
coil FRTG
A. Outlet pipe for condensation
water
B. Ductwork for heat transfer agent
Heating section, FLTV Cooling section, FJTV
5.1. Operating conditions
• The maximum operating temperature is +150 °C.
• The maximum operating pressure is 1.0 MPa.
CAUTION
The coils of large units have been split in two. The condensation water drain of the coil has
to be piped to the sewer, also from behind the unit. Make sure that the water traps and
piping have been mounted according to the instructions.
CAUTION
Due to the construction, the heat exchanger will never drain completely. If the cooling
medium used is water, the heat exchanger may freeze up and become damaged at
temperatures below 0 °C.
