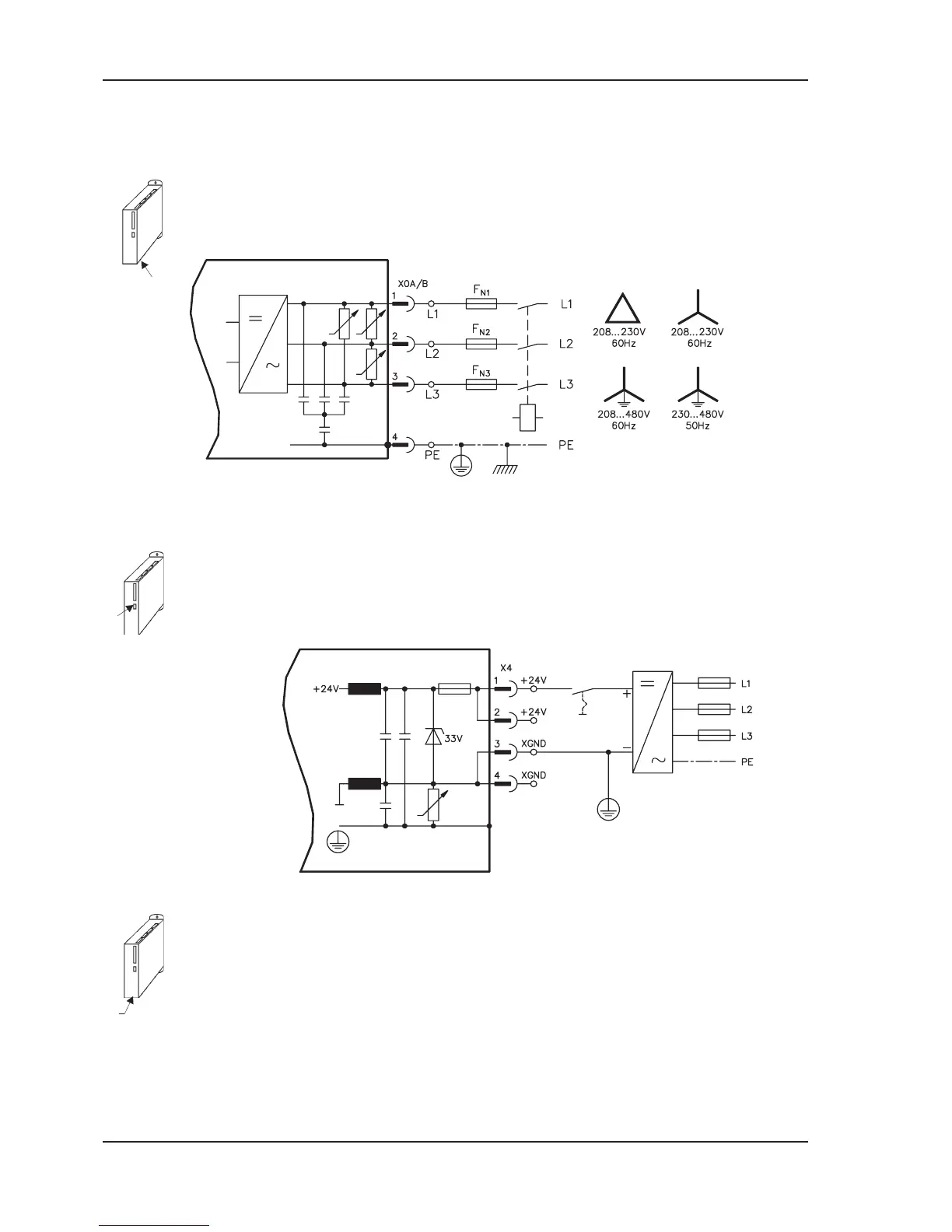

III.1 Power supply
III.1.1 Mains supply connection (X0)
— Directly to earthed (grounded) 3~ supply, integrated EMI filter
— Fusing (e.g. fusible cut-outs) provided by the user ð p.16
III.1.2 24V auxiliary supply (X4)
— Electrically isolated, external 24VDC supply, e.g. with insulating transformer
— Required current rating ð p.16
— Integrated EMI filter for the 24V auxiliary supply
III.1.3 DC-link (X7)
Can be connected in parallel. A patented circuit distributes the regen power among all the amplifi
-
ers connected to the same DC-link circuit. (Connection example ð p.29).
- A.4.031.1/21,25
36 SERVOSTAR
®
601...620 Installation Manual
Interfaces 06/02 Seidel
