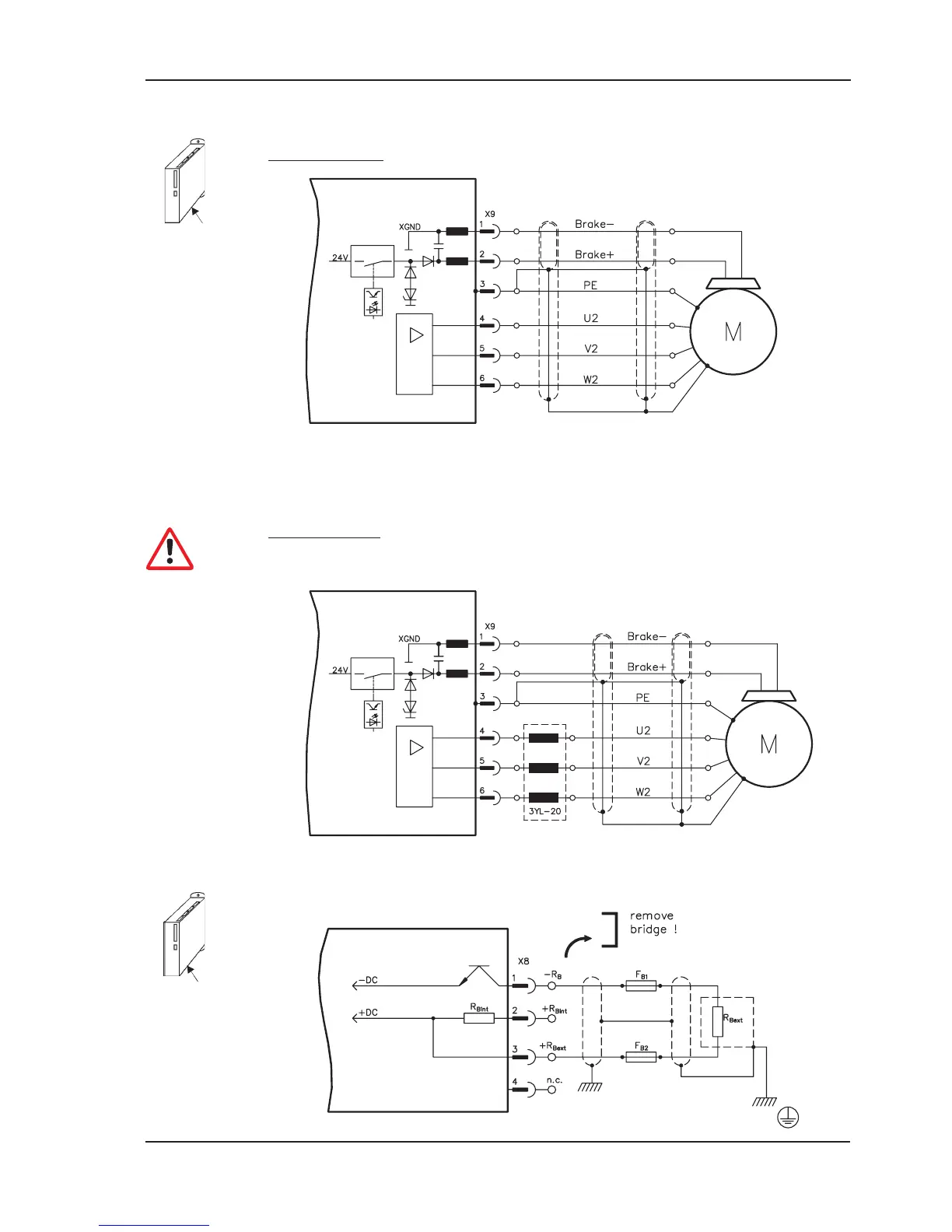

III.2 Motor connection with brake (X9)
Lead length £ 25m
Lead length >25m
For lead lengths above 25m the choke box 3YL-20 must be wired into the motor lead,
close to the amplifier.
III.3 External regen resistor (X8)
Remove the plug-in link between the terminals X8/1 (-R
B
) and X8/2 (+R
bint
).
- A.4.031.1/17,18
SERVOSTAR
®
601...620 Installation Manual 37
Seidel 06/02 Interfaces
SERVOSTAR 600
SERVOSTAR 600
SERVOSTAR 600
