Kollmorgen Seidel SERVOSTAR 601 - Connection Technology; Connection Diagram; V.3.3 Connection Technology

V.3.3 Connection technology
Cable selection, cable routing, shielding, bus connector, bus termination and transmission times are
all described in the “Installation guidelines for PROFIBUS-DP/”, Order No. 2.111, from PNO, the
PROFIBUS User Organization.

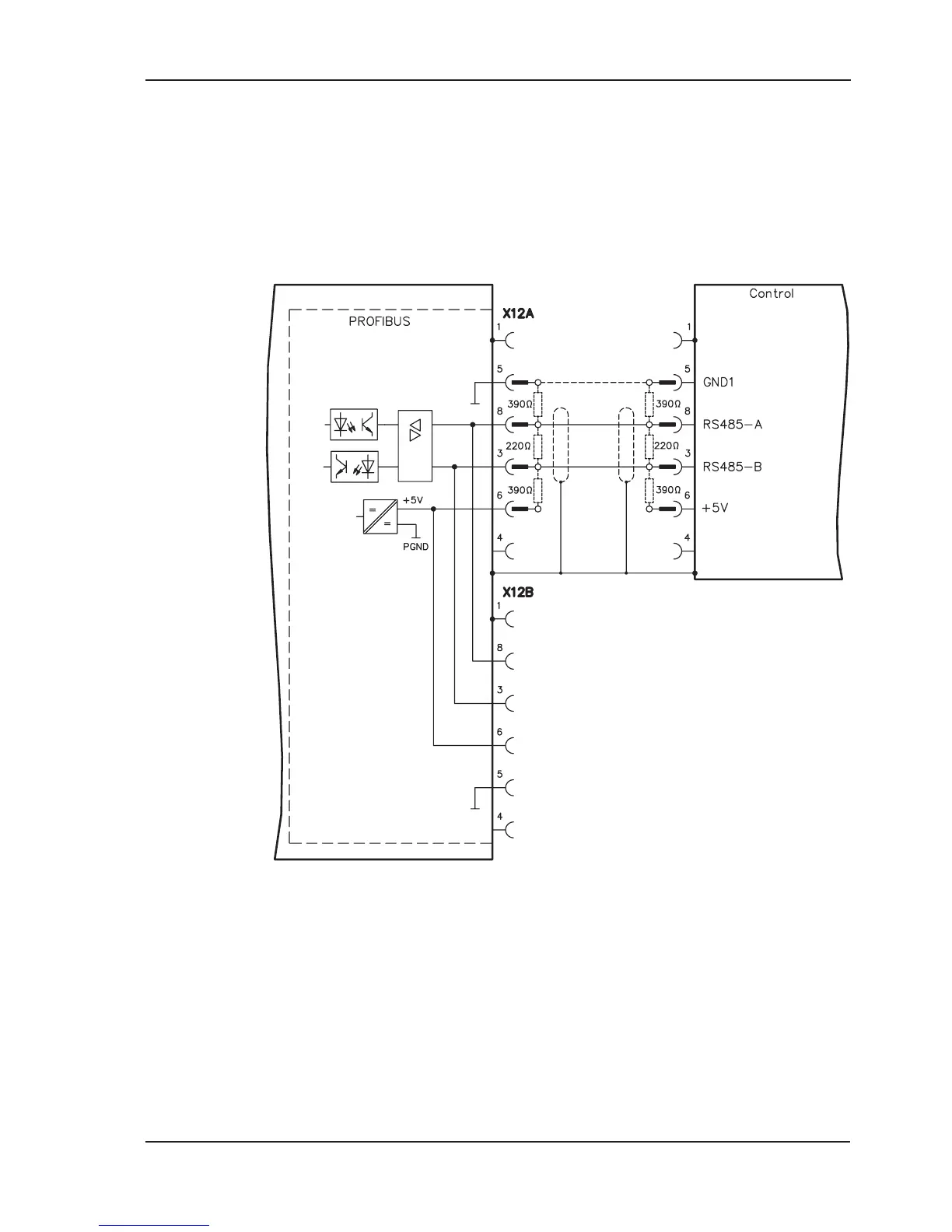

V.3.4 Connection diagram
- A.4.031.1/41
SERVOSTAR
®
601...620 Installation Manual 71
Seidel 06/02 Extensions / Accessories
SERVOSTAR 600
