 CN1 CONNECTOR – 10 pins:
It is situated on the upper part of the back panel.
PIN
NOME
FUNZIONE
OUTPUT
1
NOT
USED
2
COM
0VDC
Common pin. Signals must be taken between this pin and the respective signal pins (pin 3, 4
and 5).
3
ERROR
Error signal: it activates every time an error occurs.
The error signal resets after 3 beep sounds.
Signal is 24VDC.
4
LEVER
Lever signal: when lever is pressed or when the start is remote. No signal during unscrewing
cycle. It resets after their release. Signal is 24VDC.
5
TORQUE
Torque signal. It activates every time the torque is reached and it resets when the lever or
remote start is released. Signal is 24VDC
INPUT
6
T&A
INPUT

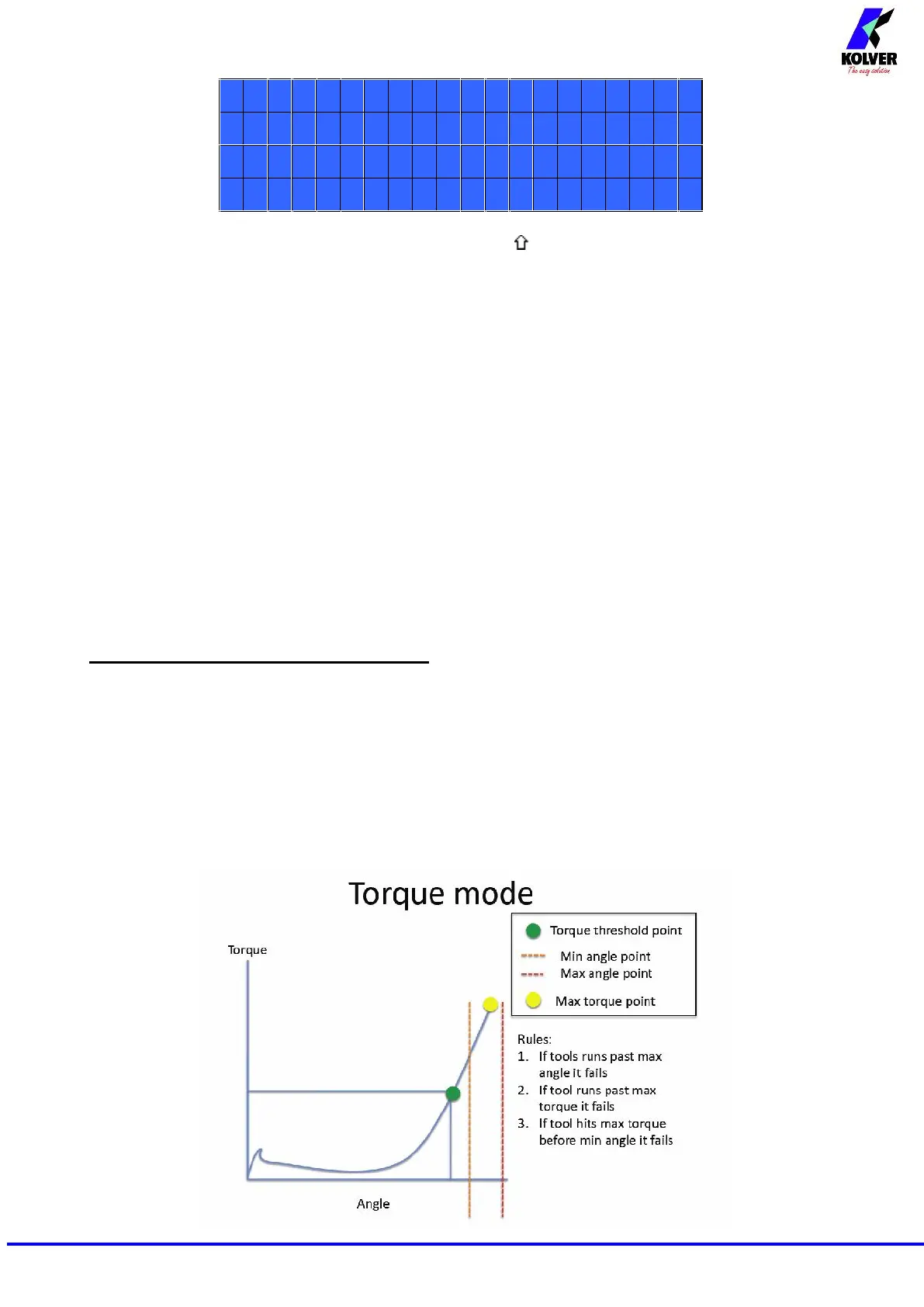

External input for making the control unit start to count the angle. It can be only used in
A/IN and T/IN mode (see T&A paragraph)
7
STOP
MOTOR
Remote motor stop. If it’s activated the message “STOP MOTOR ON” appears on the
display. The motor will stop and won’t start working again as long as the contact is closed
8
REVERSE
Remote motor start with torque control while unscrewing.
9
START
Remote start with torque control while screwing.
10
COM
0VDC
Common pin. The desired function is activated through a contact between this pin and one
of the other pins (pin 6, 7, 8, 9). This pin is connected to 0VDC and to the ground.
