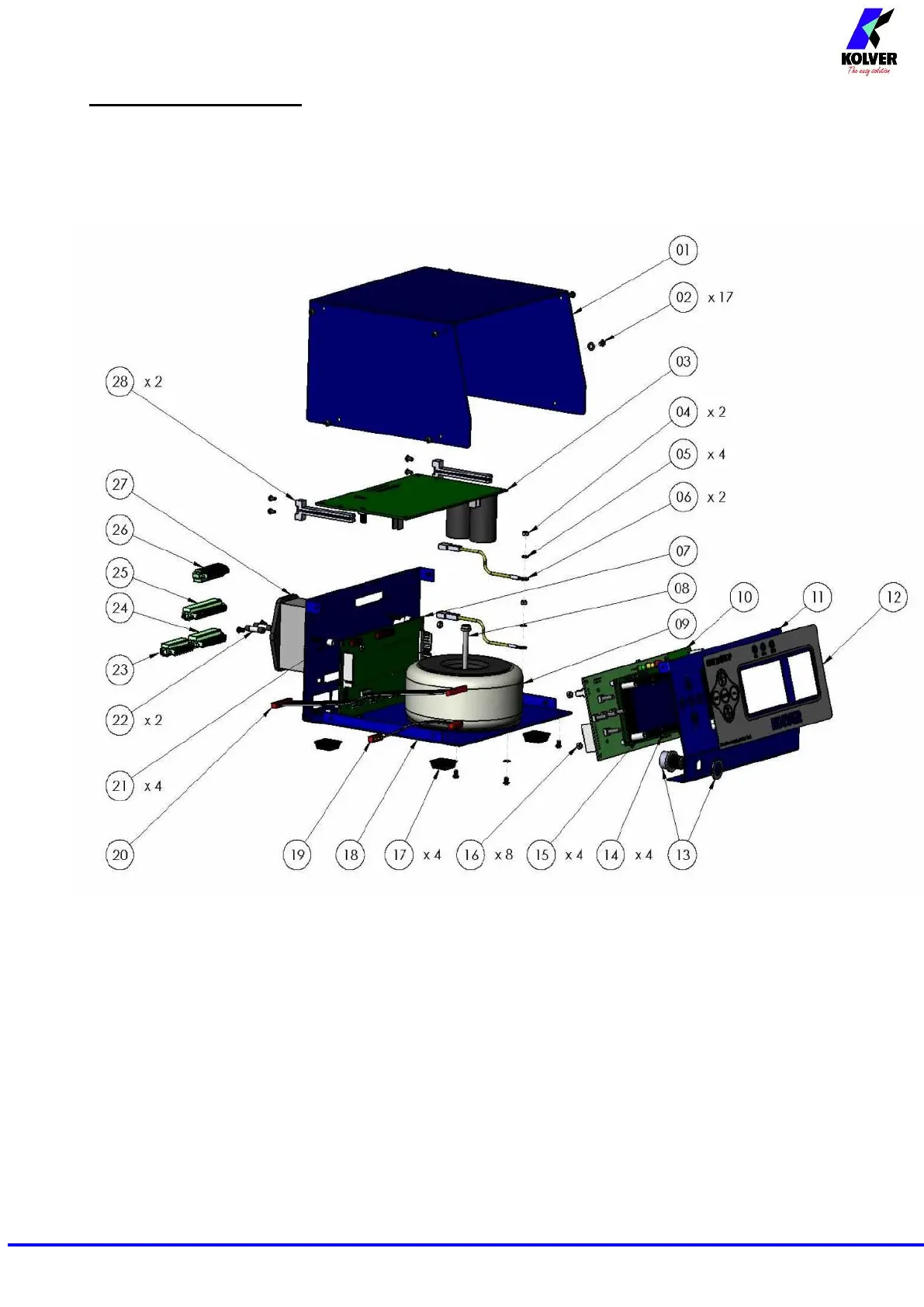

Kolver FAB Series User Manual

Vers. 111219 Page 23
 CN5 CONNECTOR (25 pin connector - female):
PIN
NAME
FUNCTION
1
GND
Common to every input. Signals have to be enabled making contact between
the desired signal and this pin (common 0VDC).
2
Not used
3
STOP MOTOR OUT
It indicates stop motor is enabled
4
OUTPUT 8
It indicates you’re using program 8
5
OUTPUT 7
It indicates you’re using program 7
6
OUTPUT 6
It indicates you’re using program 6
7
OUTPUT 5
It indicates you’re using program 5
8
OUTPUT 4
It indicates you’re using program 4
9
OUTPUT 3
It indicates you’re using program 3
10
OUTPUT 2
It indicates you’re using program 2
11
OUTPUT 1
It indicates you’re using program 1
12
+24V
+24V available on this pin, they can’t be used to charge external devices.
13
+5V
+5V available on this pin, it can’t be used to charge external devices
14
OK EXT
If enabled (see point 4: OK-ESC, in the option menu), remote OK key
function.
15
ESC EXT
If enabled (see point 4: OK-ESC, in the option menu), ESC key function to
reset remote errors.
16
RESET EXT
If enabled (see point 4: OK-ESC, in the option menu), it resets program or
sequence according to the preset function (see point 5: Reset, in the option
menu).
17
INPUT 8
Switch – selection of program 8
18
INPUT 7
Switch – selection of program 7
19
INPUT 6
Switch – selection of program 6
20
INPUT 5
Switch – selection of program 5
21
INPUT 4
Switch – selection of program 4
22
INPUT 3
Switch – selection of program 3
23
INPUT 2
Switch – selection of program 2
24
INPUT 1
Switch – selection of program 1
25
+15V
+15V available on this pin, not used to charge external devices
 CN6 CONNECTOR (serial connector 9 pin - male) - FOR BARCODE CONNECTION
PIN
NAME
FUNCTION
1
+15V
+15V available on this pin, it can’t be used to charge external devices.
2
RX
Serial reception.
5
GND
Common to every input. Signals have to be enabled making contact between
the desired signal and this pin (GND)
9
+5V
Not used.
IMPORTANT: the barcode scanner to be used must have the following features: RS232 transmission with
9600baud, 8 data bits, 1stop bit, no parity, terminators CR-LF.
