10 Structure, function and maintenance standard SEN03770-01

PC130-8

3

PTO 1

a PTO: Abbreviation for Power Take Off

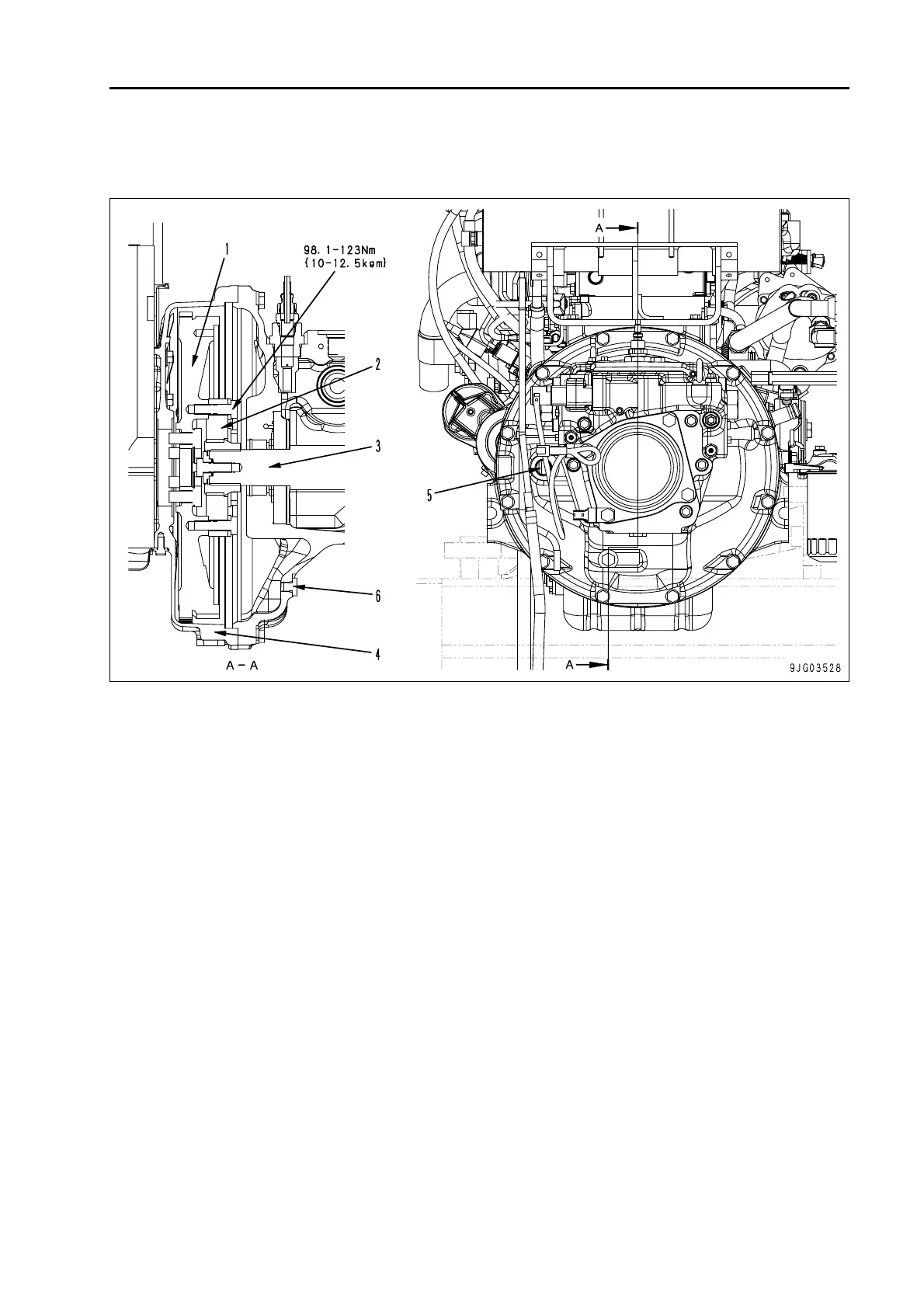

1. Flywheel

2. Coupling

3. Hydraulic pump shaft

4. Drain plug

5. Oil filler plug

6. Oil level plug
