ATTACHMENTS, OPTIONS
HANDLING JOYSTICK STEERING SYSTEM
HANDLING JOYSTICK STEERING SYSTEM
STRUCTURE AND FUNCTION OF JOYSTICK STEERING
The joystick steering system is a system used to steer wheel
loaders with a lever instead of a steering wheel.
The joystick enables steering with small, light movements, and
helps to reduce operator fatigue.

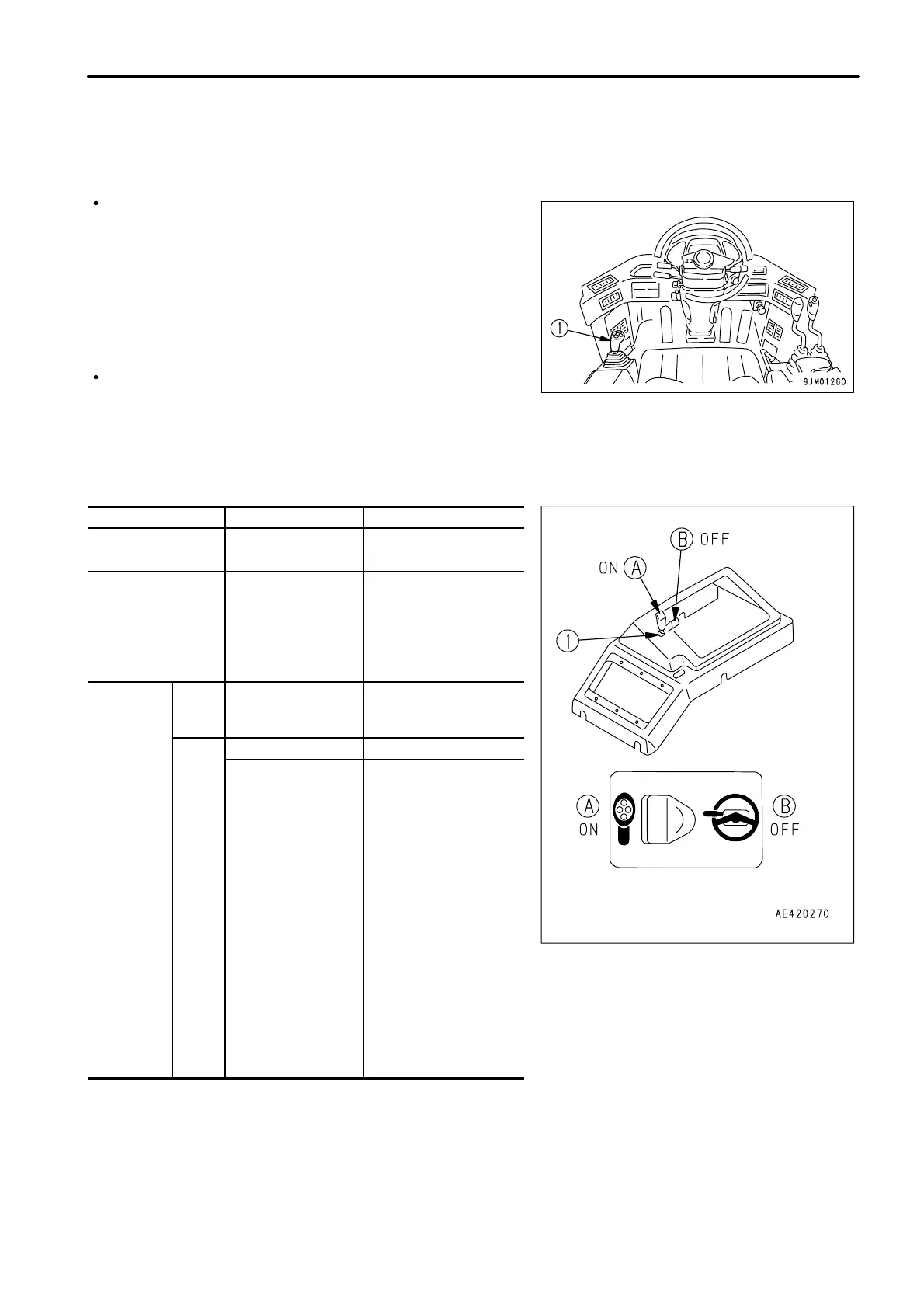

When joystick ON/OFF switch (1) is turned ON, it becomes
possible to operate the steering with the joystick.
If the joystick steering system is installed, the steering and
transmission control methods can be selected with joystick
ON/OFF switch (1) as shown below.
The functional difference between steering with the joystick
steering system and that with the steering wheel is as follows:
Selection (A) (B)
Joystick steering
ON/OFF switch
ON (Steering with
joy stick)
OFF (Steering with
steering wheel)
Steering
Steering with
joystick
(Steering with
steering wheel
wheel is also
possible)
Steering with steering
Transmis-
sion
F/N/R
Operated with
F/N/R button on
joystick head
Operated with
directional lever
Selec-
tion of
gear
speed
Auto-shift Auto-shift
*1: When manual
switch is
turned ON,
operation is
also possible
with the shift-
up/shift-down
switch on the
lift arm control
lever.
*2: Shift up
switch: Speed
range shifts
1
→
2
→
3
→
4
Shift down
switch: Speed
range shifts
4
→
3
→
2
→
1
*1: When manual
switch is turned
ON, operation is
also possible with
transmission
control lever.
Speed range
shifts 1
↔
2
↔
3
↔
4
6 - 15
