OPERATION

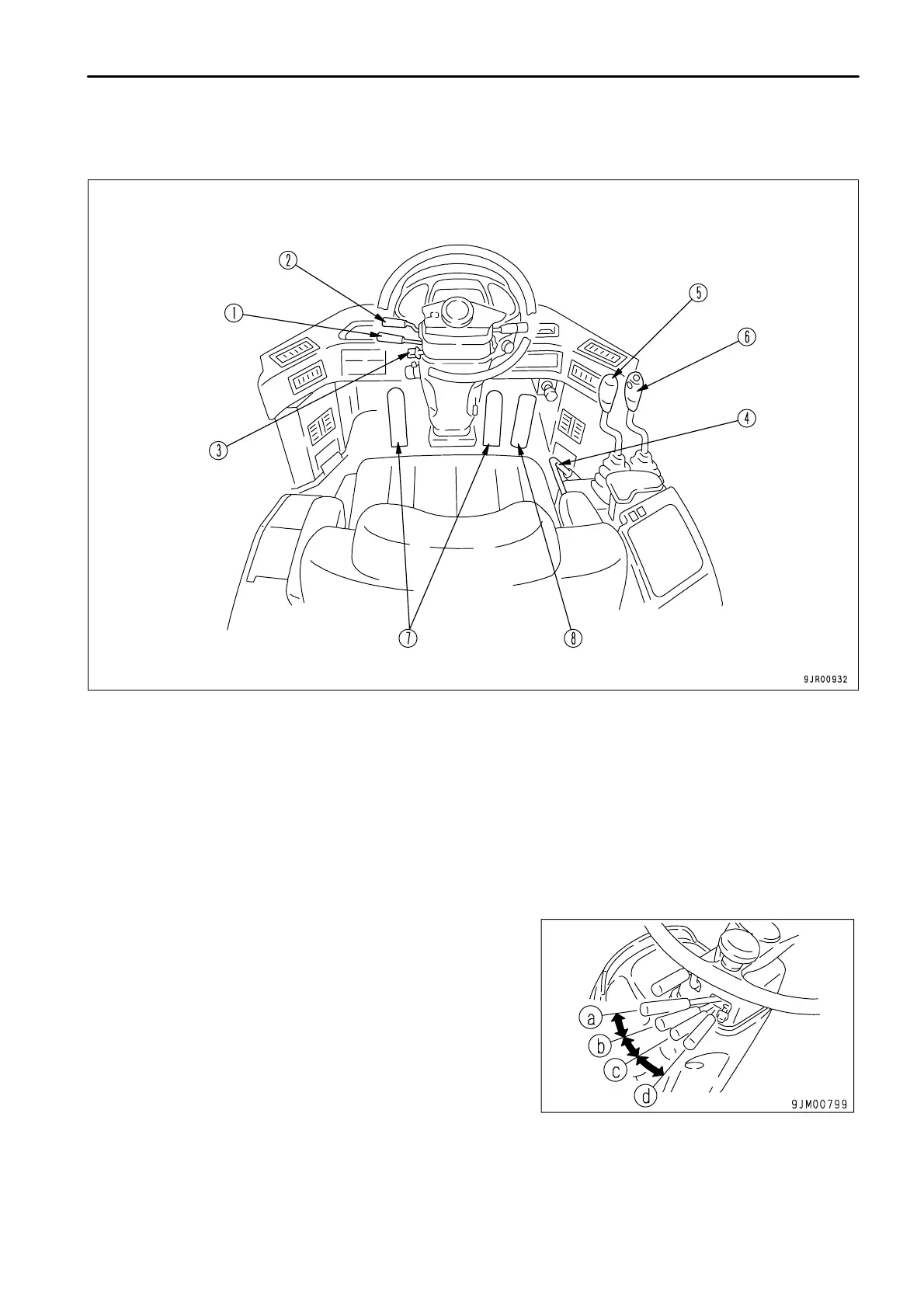

EXPLANATION OF COMPONENTS
CONTROL LEVERS, PEDALS
(1)
(2)
(3)
(4)
Gearshift lever
Directional lever
Gearshift lever stopper
Safety lock lever (for work equipment lever)
(5)
(6)
(7)
(8)
Bucket control lever
Lift arm control lever
Brake pedal
Accelerator pedal
GEARSHIFT LEVER
This lever (1) changes the speed range of the transmission.
MANUAL SHIFT
This machine has a 4-FORWARD, 4-REVERSE speed
transmission.
Place the gearshift lever in a suitable position to obtain the desired
speed range.
1st and 2nd speeds are used for working.
3rd and 4th speeds are used for traveling.
However, when the gearshift lever stopper is being used, it is
impossible to shift to 3rd or 4th. Disengage the gearshift lever
stopper before trying to shift gear.
Position (a): 1st
Position (b): 2nd
Position (c): 3rd
Position (d): 4th
3 - 25
